The vertical design of this high quality insert makes punchdown termination easy. The insert is for use in all keystone wallplates and is available in multiple colors, as well as convenient contractor packs.

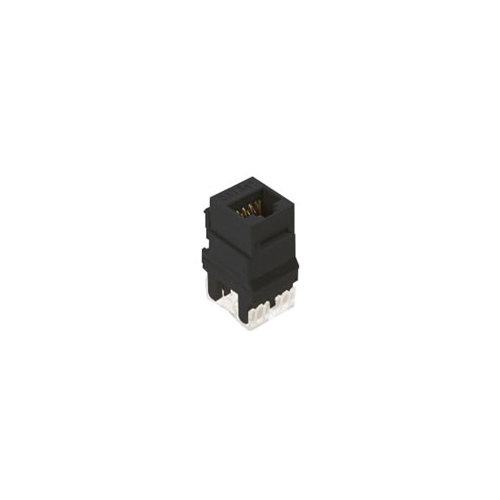

On-Q® Keystone Connector, Vertical Orientation, Series: WP Series, Cat 5e Module, Surface Mounting, 1 Port, Plastic, Black, 0.67 x 0.76 x 1.18 in

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/On-Q_AC2M01BK_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/On-Q_AC2M01BK_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/On-Q_WP3450IV_Full_Engineering_Drawing.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/On-Q_WP3450IV_Full_Engineering_Drawing.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/On-Q_WP3450IV_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/On-Q_WP3450IV_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/On-Q_WP3450IV_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/On-Q_WP3450IV_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/On-Q_WP3450BK_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/On-Q_WP3450BK_Specification_Sheet.pdf

• Rear retention caps ensure secure wire termination
• Vertical design for easy punchdown termination
• Insertion and extraction life is 750 Cycles Min
• Jack housing is high-impact, flame resistant plastic
• Spring wire is phosphor bronze alloy plated with 50 micro-inch of gold over 100 micro-inches of nickel
