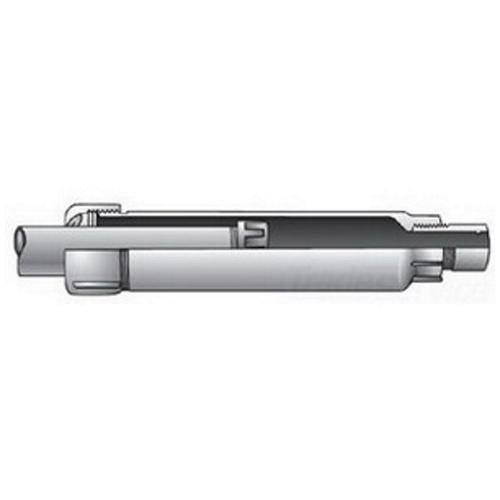

O-Z/Gedney AX expansion fittings allow for expansion and contraction in a run of rigid metal conduit and IMC. They can be used for applications involving IMC. Due to the slightly smaller OD of the IMC a 15 in minimum length of rigid conduit should be used entering the expansion fitting. Type AX provides for a maximum of 4 in conduit movement, 2 in in either direction. Type AX-8 provides for a maximum of 8 in conduit movement, 4 in either direction.

O-Z/Gedney Expansion Fitting, Type AX Weatherproof, 3 in Size, For Use With: IMC/Rigid Metal Conduit, Ductile/Malleable Iron, Hot Dipped Galvanized Finish, 5-3/8 in OD x 8-1/8 in L Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/O-Z_Gedney_AX-100A_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/O-Z_Gedney_AX-100A_Specification_Sheet.pdf

• Provides 4 in conduit movement
• Wet or dry locations and use with type BJ external bonding jumpers
• Concrete tight
