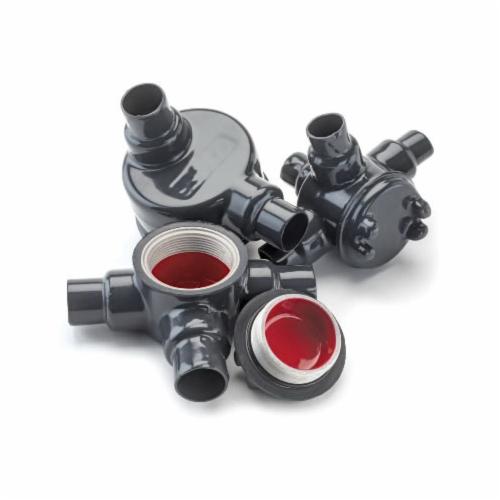

Plasti-Bond RedH2OT® GUA series conduit outlet boxes are installed in hazardous location conduit systems to serve as pull and splice boxes, to change the direction of a conduit run, to connect runs of conduit or to provide access to conductors. They are provided with covers as standard. Inquire about special covers to allow use to mount lighting fixtures or as sealing fittings. Electrical continuity of the conduit system is maintained across assembled joints.

Robroy RedH2OT® Conduit Outlet Box, Series: GUA, 3/4 in Hub, 3 in Cover Opening, 3 Gangs, Threaded Mounting, Steel, Gray/Red, PVC Coated

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Robroy_PRLBY25_RoHS.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Robroy_PRLBY25_RoHS.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Robroy_PRGUAT26_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Robroy_PRGUAT26_Specification_Sheet.pdf

• 40 mil gray PVC exterior coating
• 2 mil red urethane interior coating
• CRFB sizes from 1/2 through 2 in various styles and configurations
• Sealing sleeves on all conduit openings
• Neoprene O-ring is standard
• Molded-in PVC seal preserves venting characteristics of fitting but seals out corrosives
• Internal green grounding screw is standard
• Rigid metallic conduit, intermediate metallic conduit
• Installed in hazardous location to serve as pull and splice boxes, to change the direction of a conduit run, to connect runs of conduit or to provide access to conductors and for hazardous locations
