RAB X34-100LT/U

Share Print

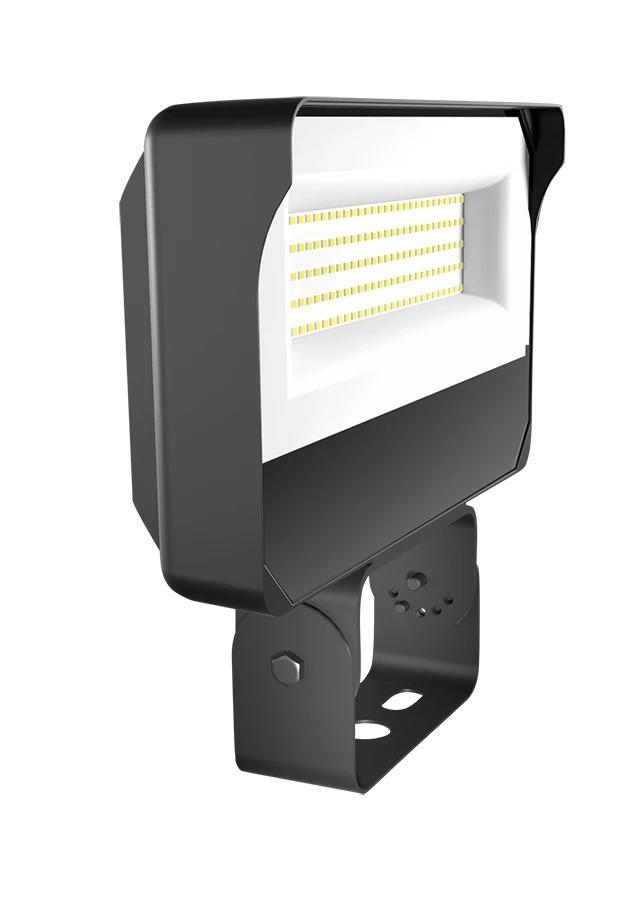

RAB X34-100LT/U Floodlight,) LED Lamp, 86.8 W Fixture, 120 to 277 VAC, Bronze Housing

  • MPN: X34-100LT/U

  • IESPN: 264617

  • UPC: 019813509747

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
RAB X34-100LT/U

RAB Floodlight, Series: X34, 120 to 277 VAC, 86.8 W Fixture, 0.3/0.4/0.7 A, LED Lamp, 87 W Lamp, 122.3 Lumens/W Light Output, 50000 hr Average Life, Cool White Light, 5000 K Color Temperature, 83 CRI, 0 to 10 V Dimming/Constant Current Ballast, Tempered Glass Lens, 10619 Lumens, NEMA 7H x 7V/IP65 Enclosure, Trunnion Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 10-1/2 in W x 3-1/4 in D Dimensions

Series      X34
Voltage Rating      120 to 277 VAC
Fixture Wattage      86.8 W
Amperage Rating      0.3/0.4/0.7 A
Lamp Type      LED
Lamp Wattage      87 W
Light Output      122.3 Lumens/W
Average Life      50000 hr
Light Color      Cool White
Color Temperature      5000 K
Color Rendering Index (CRI)      83
Ballast Type      0 to 10 V Dimming/Constant Current
Lens Type      Tempered Glass
Lumens      10619 Lumens
Enclosure Type      NEMA 7H x 7V/IP65
Mounting Type      Trunnion
Housing Material      Die Cast Aluminum
Housing Finish      Bronze
Dimensions      10-1/2 in W x 3-1/4 in D
  • Versatile, general purpose floodlight
  • IP65 rating protects against dust and water
  • 0.7 A at 120 VAC, 0.4 A at 208 VAC, 0.4 A at 240 VAC, 0.3 A at 277 VAC amperage rating
