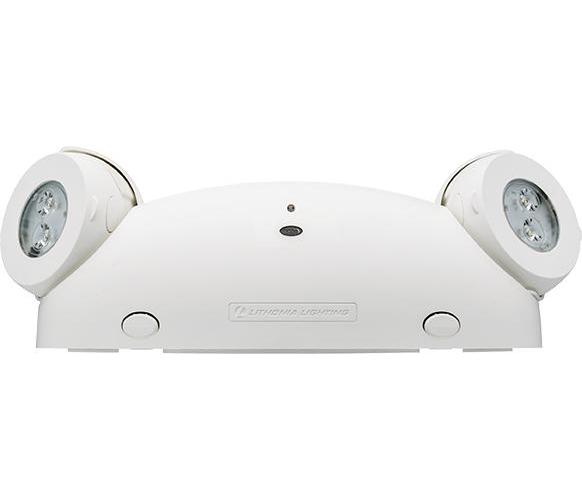

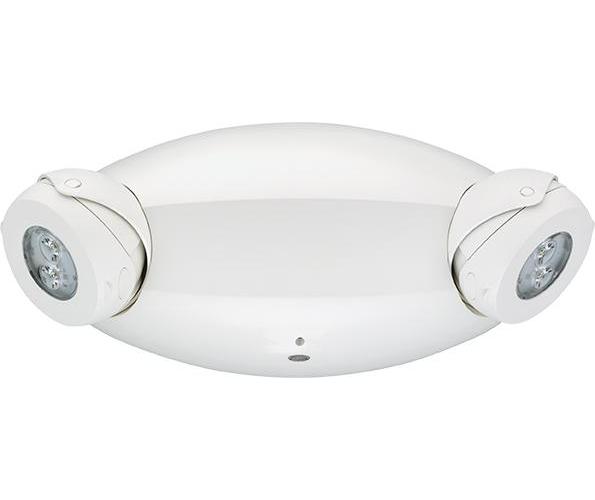

The ELM4L from Lithonia Lighting® is an aesthetically pleasing emergency LED light fixture. It provides a minimum of 90 min of illumination when there is a loss of power. Equipped with four high performance LEDs and full range swivel lamp heads it is ideal for a wide range of mounting height applications (from 7.5 to 24 ft), requiring aimable optics. The linear pattern provides wide uniform distributions that deliver broad spacing up to 67 ft and low max to min ratios that far exceed code requirements. The ELM4L optional lithium platform comes standard with universal input voltage (120 to 347 V). The upgraded lithium iron phosphate battery provide extended run times of up to 4 hr or up to 32 W of remote capacity. Also, remote testing and self-diagnostics that meet and exceed code required testing while significantly reducing the time and cost of compliance. Plus, constant light output over the full discharge period.

Lithonia Lighting® Quantum® Emergency Light, Adjustable Optics, Series: ELM4L, 120/277 VAC, 3.15 W Fixture, 0.032/0.036 A, 50/60 Hz Frequency, Static LED Lamp, 6.6 W Lamp, 2 Heads, 640 Lumens, 10 years Average Life, 5000 K Color Temperature, Acrylic/Polycarbonate Lens, Battery Power Source, Ceiling/Surface/Wall Mounting, 13-3/8 in L x 3-45/64 in W x 5-5/16 in H Dimensions, Thermoplastic, White

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_ELM2L_UVOLT_LTP_SDRT_M12_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_ELM2L_UVOLT_LTP_SDRT_M12_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_ELM6L_UVOLT_LTP_SDRT_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_ELM6L_UVOLT_LTP_SDRT_Specification_Sheet.pdf
• VIDEO LINK https://www.youtube.com/embed/_wkFBlQ0F7M

• The Quantum series from Lithonia Lighting with improved aesthetics and performance, is easy to install and maintain
• The advanced optical design and electronic technology deliver high-quality light output when it is needed most
• INSTALLATION - Wall and ceiling mount with tool-less removal of front cover from back-plate for ease of installation and maintenance
• DIMMING - Not applicable
• VOLTAGE - Functions between 120 and 277 V with input wattage of 3.15 W
• DESIGN - The housing is a standard thermoplastic, compact and low-profile design, it's 5VA flame rated, impact- and scratch-resistant and corrosion proof, the UV-stable resin resists discoloration from natural and man-made light sources
• BATTERY - Emergency light provided with test switch, status indicator and rechargeable battery with maintenance-free nickel-cadmium battery provides 90 min of emergency power
