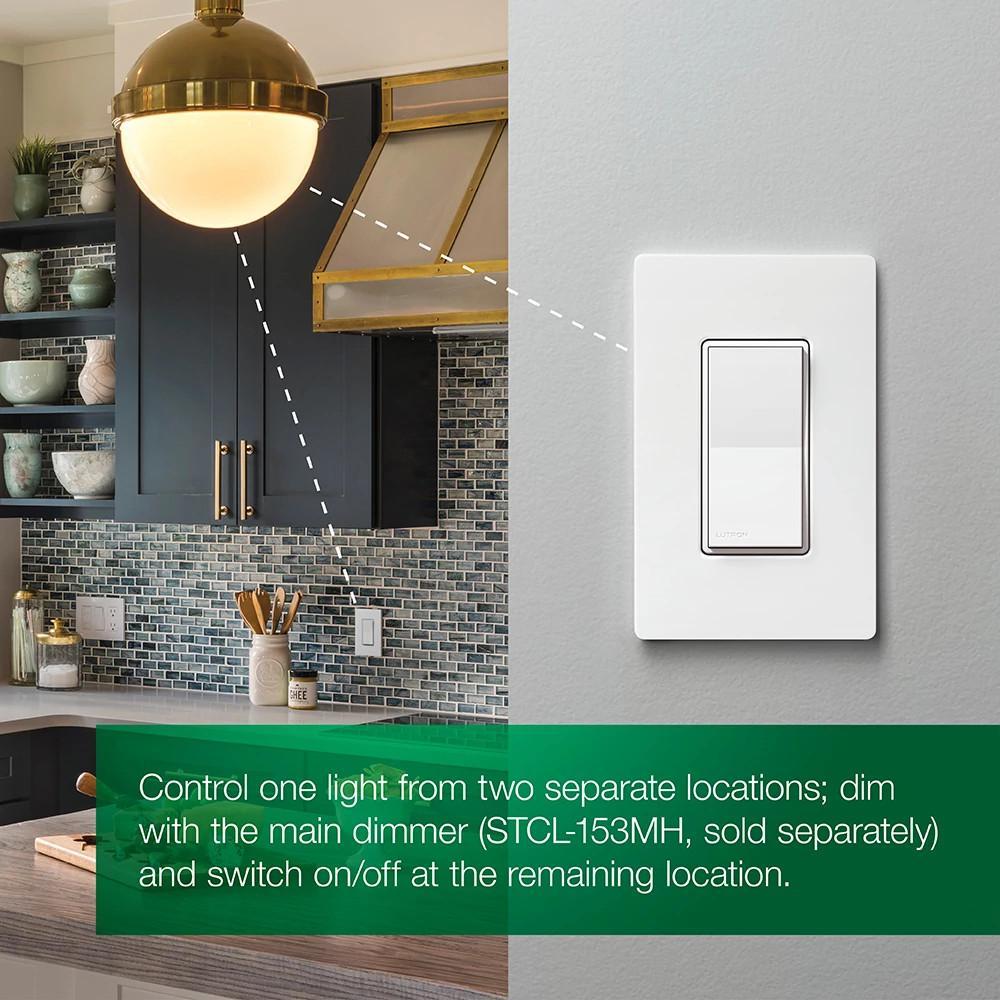

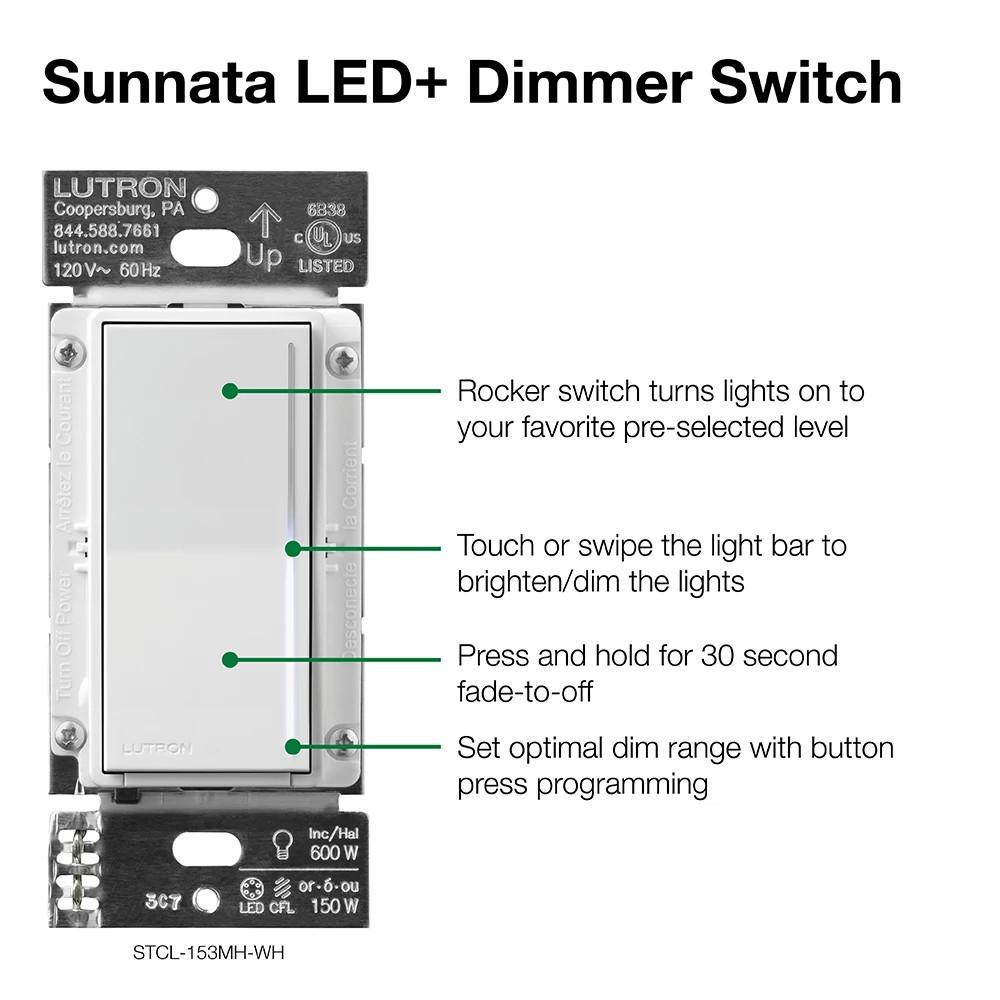

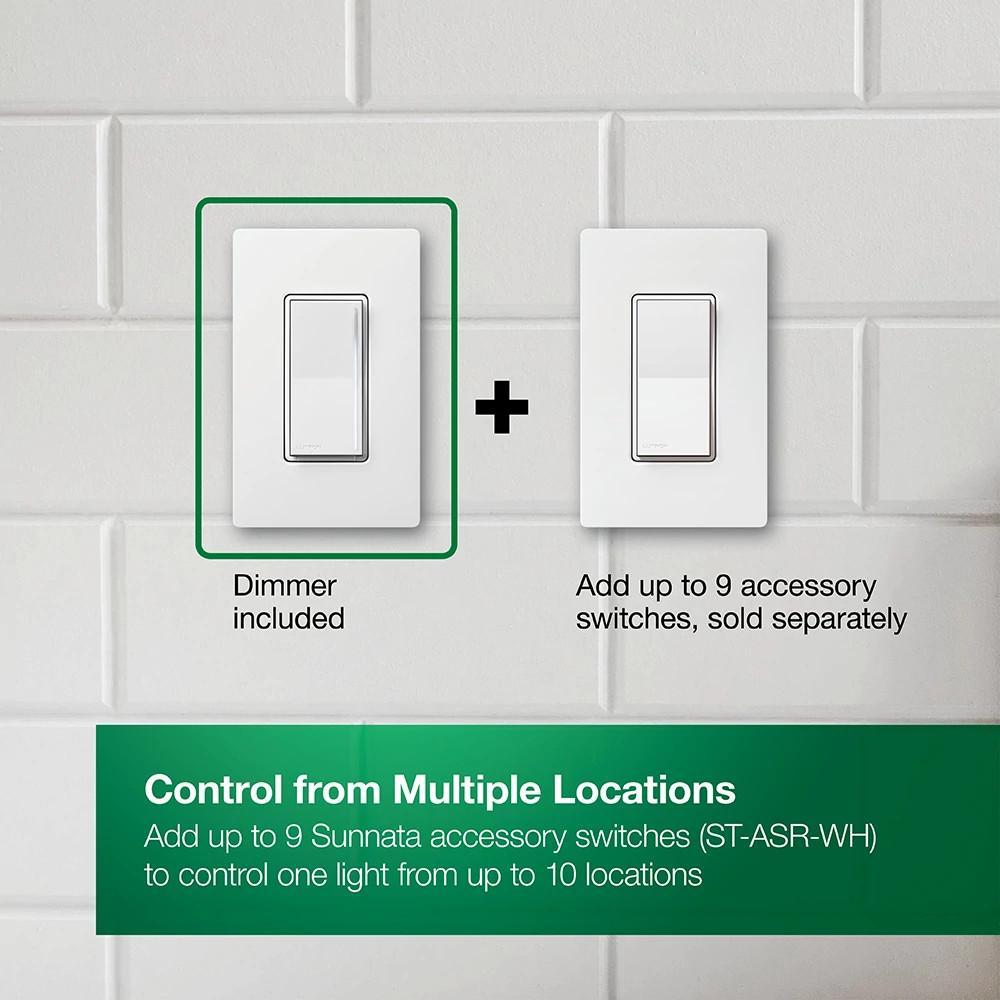

The Sunnata Touch LED+ dimmer switch with LED+ Technology features a large intuitive paddle to turn lights On/Off and a sleek touch bar to easily dim/brighten your lights. This touch dimmer switch is rated to control lighting loads up to 150W LED or 600W incandescent/halogen. Use with the Sunnata accessory switch (ST-AS-xx) to create a 3-way application or add more accessory switches to control from up to 10 locations in a multi-location application. The Sunnata Touch LED+ Dimmer provides dimming, while the Sunnata Accessory Switch (ST-AS-xx) allows for On/Off switching within the multi-location application; can also be used with an existing 3-way switch. Tap the top of the dimmer switch once for your favorite light level, set through MyLevel Personalization, and twice for full brightness; swipe your finger along the white LED lightbar to dim/brighten the lighting load. The smooth fade on and fade off allows your eyes to adjust comfortably to your determined light level; push and hold the Off button for 30 second delayed fade-to-off. No neutral required. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

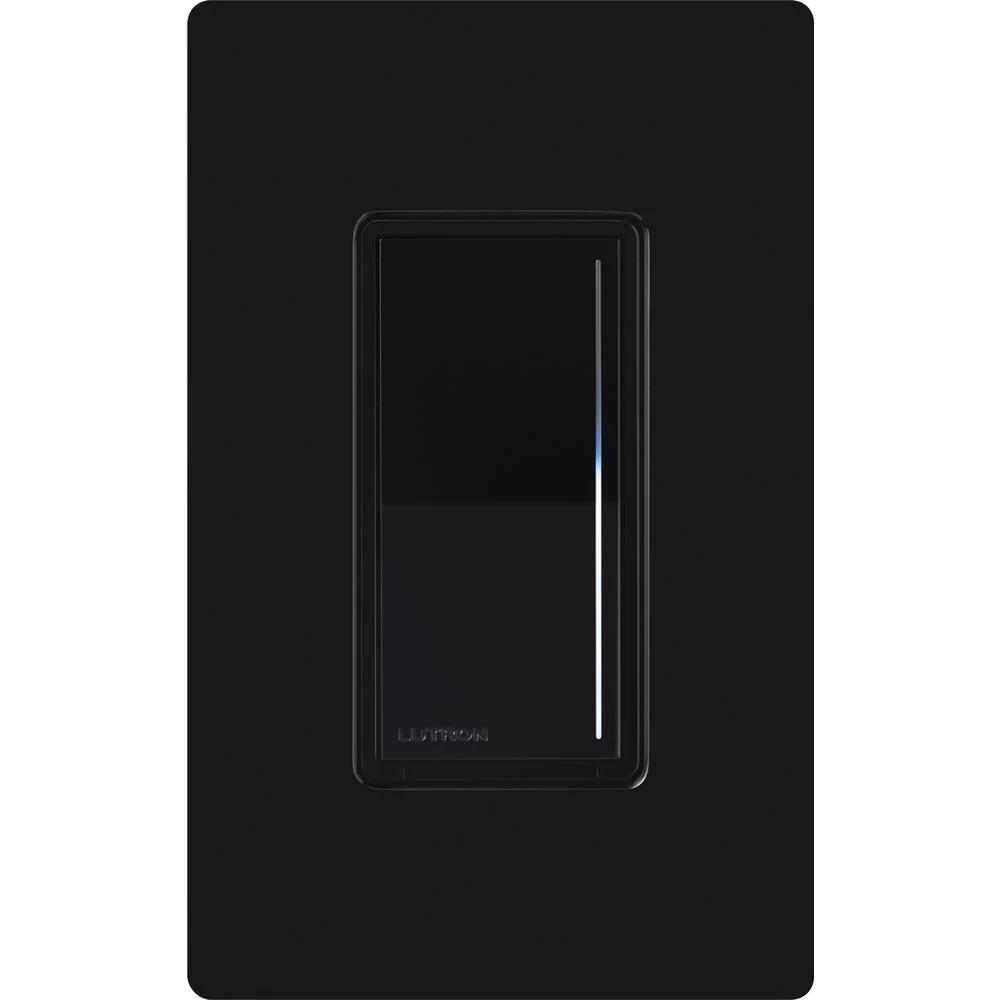

Lutron®, STCL-153M-BL, Dimmer Switch, LED, Series: Sunnata, 120 V, 60 Hz Frequency, 1 Pole, LED/CFL Lamp, Paddle ON/OFF Control, NEMA SSL-7A Enclosure, Wall Mounting, Screw Terminal, 32 to 104 deg F, Black, 4.69 in H x 2.94 in W Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_STCL-153MH-WH_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_STCL-153MH-WH_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_STCL-153MH-WH_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_STCL-153MH-WH_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_STCL-153MH-WH_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_STCL-153MH-WH_Specification_Sheet.pdf
• VIDEO LINK https://lutron.widen.net/content/8txwdz8fgz/original/Ecom_SunnataLED_benefitvideo.mp4
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MK-D-5-HT_Warranty.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MK-D-5-HT_Warranty.pdf

• Works with up to 150W of dimmable LEDs or up to 600 Wof incandescent/halogen bulbs
• No Neutral Required
• Touch or swipe the white light bar to brighten/dim your lights, lightbar also doubles as a locator light to help find the dimmer switch in the dark
• Press and hold Off button for 30 seconds for fade-to-off
