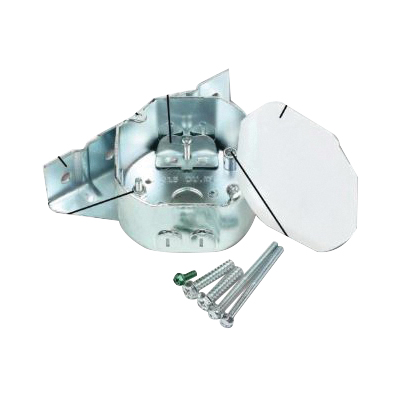

The sidemount plus fan box® allows you to safely install a ceiling fan or light fixture without access to attic space and provides secure attachment to an existing ceiling joist. Ideal for remodel applications, it can be installed in finished ceilings through a hole large enough to fit the box. To install it in a finished ceiling, simply mount the bracket to a joist through a 4 in hole in the drywall, pull the wire into the box and remount the box to the bracket. The sidemount Plus features a heavy duty, 2-1/8 in, all metal electrical box, with 21-1/2 in wiring capacity. The box is UL listed to support fans and light fixtures up to 70 lb. Features dual mounting capability, with #10-24 thread for heavier fans and fixtures and #8-32 thread for cover plates and lightweight lighting fixtures.

Westinghouse Sidemount Plus Fan Box, Heavy Duty, 7 Knockouts, 1/2 in Knockout, Octagon Shape, Sidemount Bracket Mounting, 15.5 cu-in Capacity, Steel, 1-1/2 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Westinghouse_0125011_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Westinghouse_0125011_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1887f1bb621d712b4ab9de33aa8cdd68604879de6257133d803df2682049b0f4.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1887f1bb621d712b4ab9de33aa8cdd68604879de6257133d803df2682049b0f4.pdf

• Design allows secure installation for new construction or remodel applications without attic access
• Saf-T-Cap to protect inner workings during drywall installation or painting
• Supports fans up to 70 lb
