Leviton® line of heavy duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these commercial grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

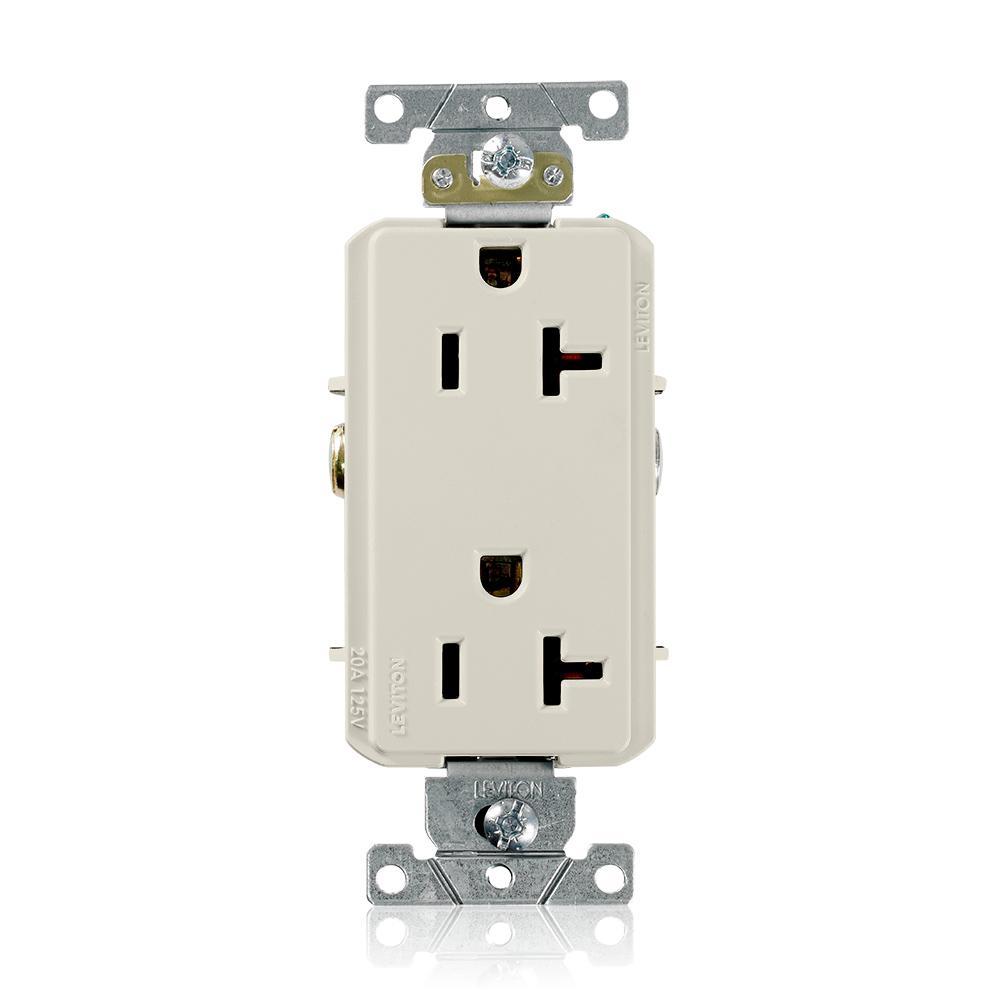

Decora® Plus Straight Blade Duplex Receptacle, Heavy Duty, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Side Wire Terminal, PBT Polyester Blend, Light Almond, 3.81 in H x 1.71 in W x 1.07 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Decora_Plus_16252_BU_Technical_Drawing.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Decora_Plus_16252_BU_Technical_Drawing.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_87b63748f4d57eb509bbc84bc60edf3b941b9c21c7452b4dcb7712275e332cb9.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_87b63748f4d57eb509bbc84bc60edf3b941b9c21c7452b4dcb7712275e332cb9.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Decora_Plus_16342_I_Technical_Bulletin.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Decora_Plus_16342_I_Technical_Bulletin.pdf

• Heavy gauge locked-in wraparound strap
• Back wire terminals accept up to no 10 AWG copper or copper clad wire, solid or stranded
• Brass staked on self-grounding clip
• Heavy duty triple-wipe brass contacts for long service life
• Impact-resistant thermoplastic construction
