The Lutron Maestro Dual LED+ Dimmer and 4-Speed Fan Control helps you achieve the ideal comfort level for your home. It includes the most advanced technology for superior dimming and adjust the fan speed all from one wall control. The top section is a LED+ Dimmer that works with up to 75W of dimmable LEDs or up to 250W of Incandescent/Halogen bulbs. The bottom section is a 4-speed fan control for a single ceiling paddle fan up to 1.5A. Press the tap switch once to toggle the light or fan ON to a programmed preset, press again to toggle OFF; Double press the tap switch to turn light or fan ON to full intensity/speed. Use the raise/lower button next to the tap switch to dim/brighten lights or increase/decrease fan speed. This Fan/Light control is only available in single pole. Screw terminal and wire lead installation. No neutral or canopy module required. LED+ dimmer portion has easy low-end trim programming. Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

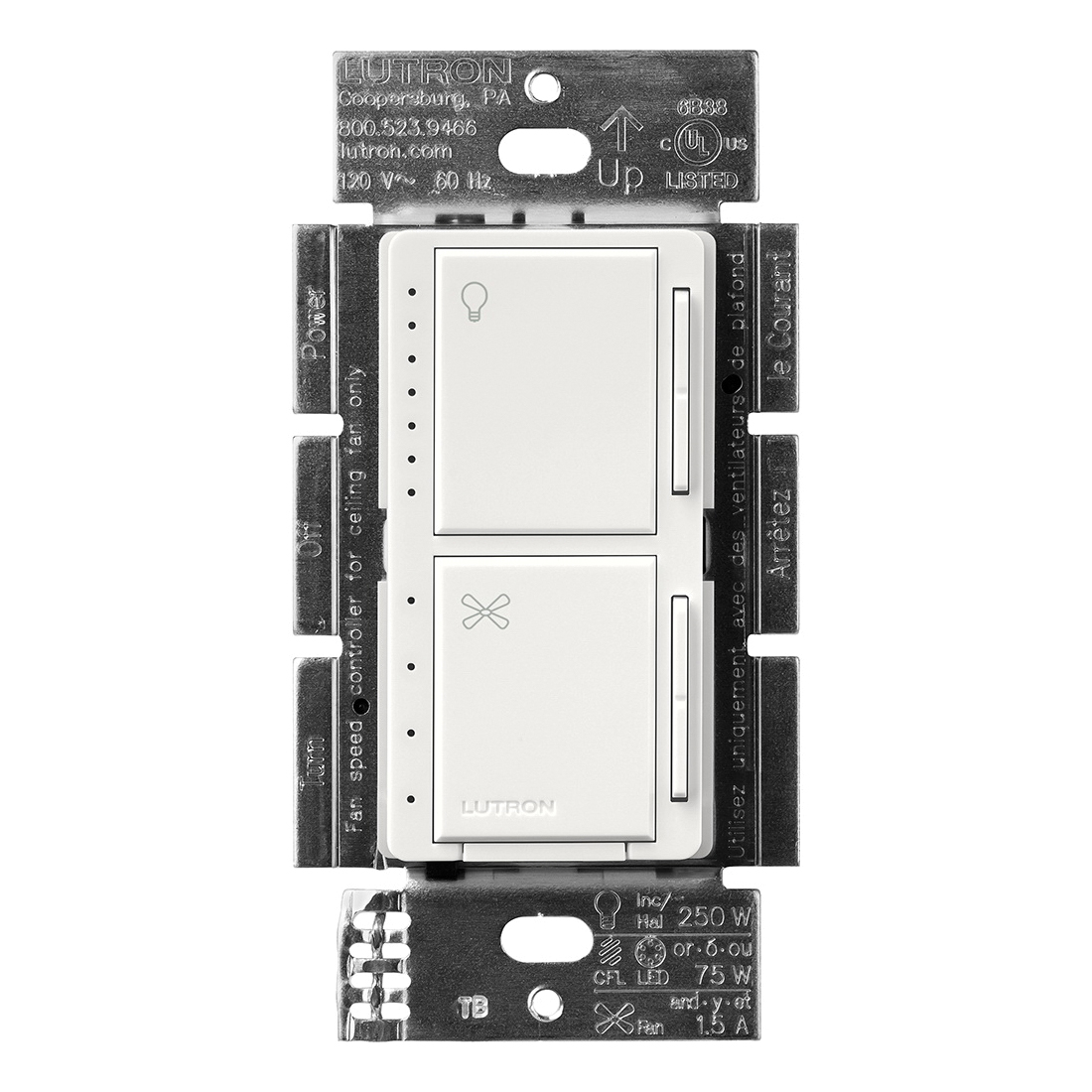

Lutron® Maestro® C.L® Fan/Light Control, 1-Pole, Series: MACL-LFQ, 120 VAC, 1.5 A, 75/250 W Power, 4-Speed/Quiet Operational Mode, Wall Mounting, 32 to 104 deg F, Gloss, White, Environmental Conditions: 0 to 95% Non-Condensing Relative Humidity, 4-11/16 in H x 2-15/16 in W x 1-9/16 in D

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MACL_LFQ_AL_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MACL_LFQ_AL_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MACL_LFQ_AL_Full_Engineering_Drawing.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MACL_LFQ_AL_Full_Engineering_Drawing.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MACL_LFQ_AL_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MACL_LFQ_AL_Manual.pdf
• VIDEO LINK https://lutron.widen.net/content/ec8iuh7obl/MP4/Maestro-Fan-Light-Install_Lutron.MP4?w=2048
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MA_1000_AL_Warranty.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MA_1000_AL_Warranty.pdf

• Tap ON to preset light level/fan speed, tap OFF
• Tap twice for full ON
• Touch rocker to adjust light level/fan speed
• Four fan speeds plus off
• Indicator lights display light level and fan speed
• No canopy module required
• Requires separate wires for fan and light
• No neutral wire required
• Low end adjustment to accommodate a wide range of bulbs
• Front Accessible Service Switch (FASS™) for fixture bulb replacement
• Prevents tripping of AFCI breakers
• 100% factory tested
• Light pull chain off detection, lamp failure detection, short circuit detection/protection
