Crouse-Hinds series CG color-coded grips feature neoprene bushings that are color-coded for quick and easy identification of proper cord grip. CG color-coded grips provide a means for passing a cord into an enclosure, form a watertight seal for cord, and provide pull-out protection for cord, ensuring a secure connection. Available in straight, 45° and 90° configurations from 1/2" to 1-1/2", they are for use with portable cords, including S, SO, STO, ST, SJ, SJT, SJTO and SVO.

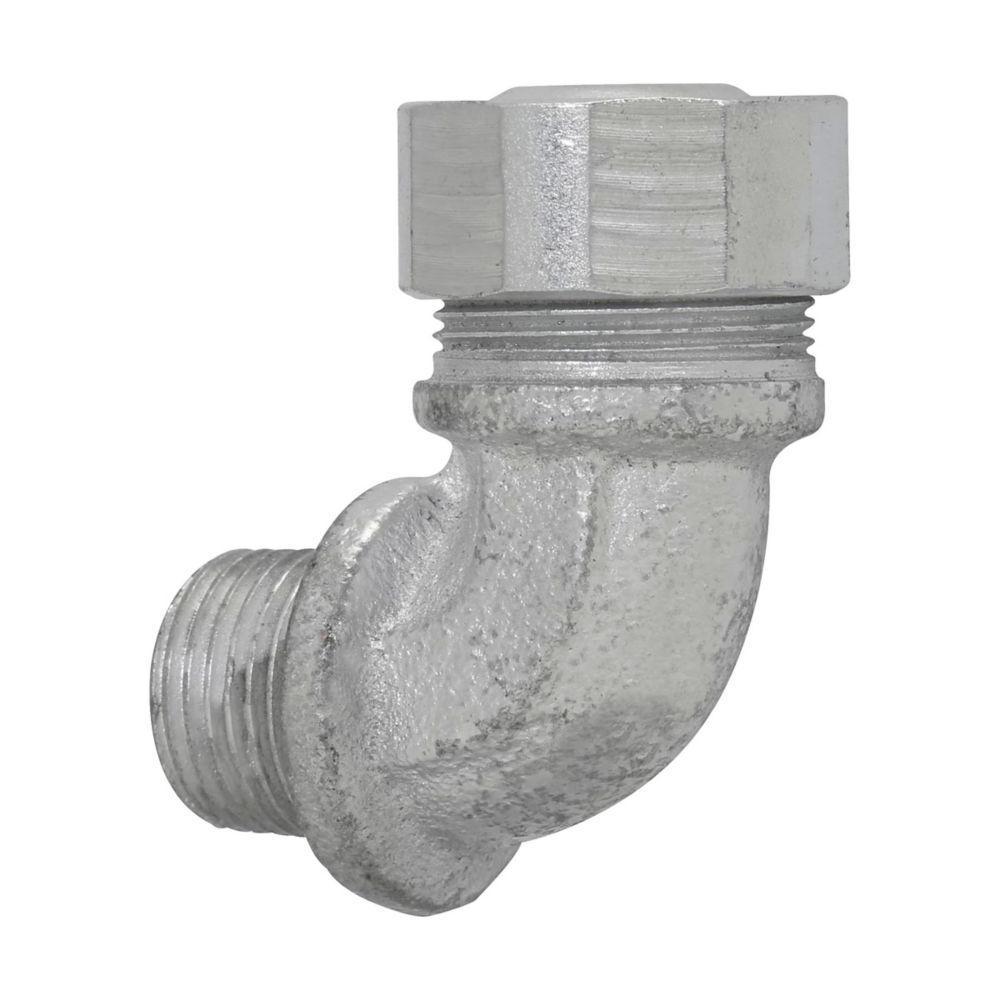

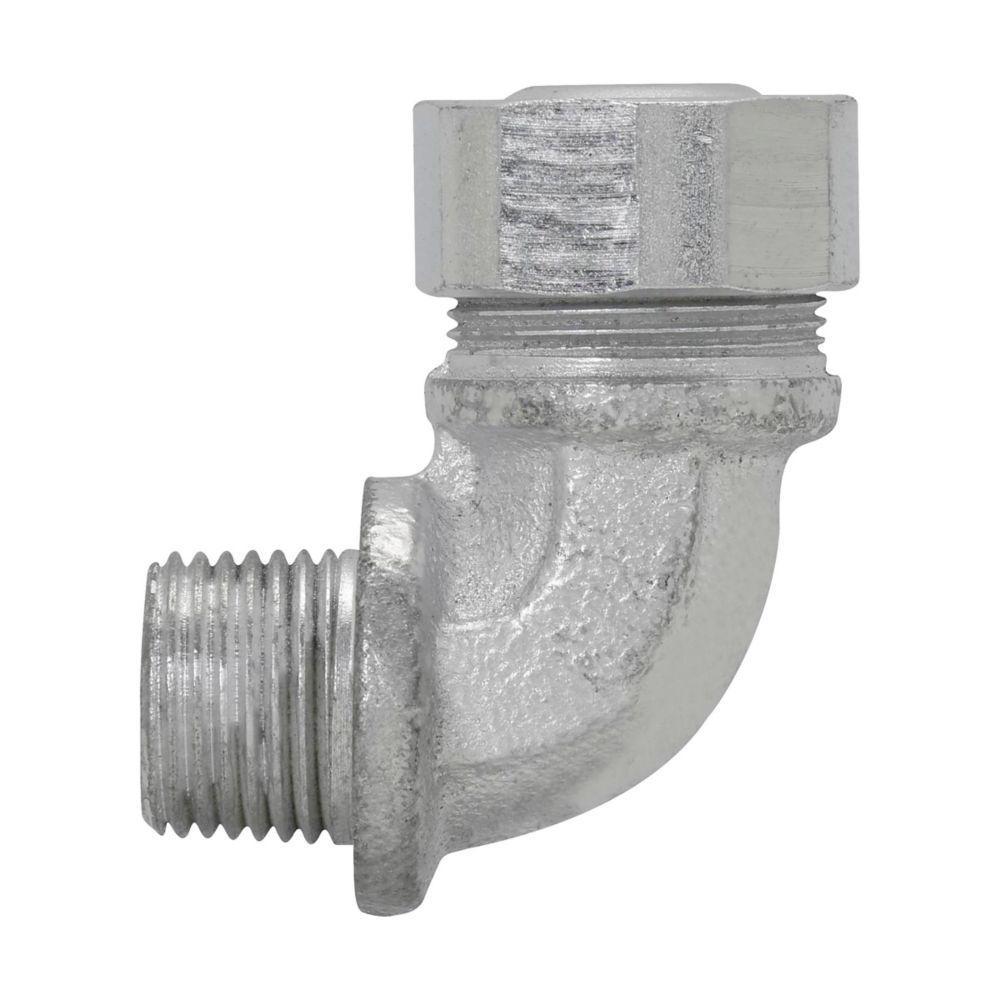

Crouse-Hinds Cord Grip Connector, Color Coded, Series: CG, 1/2 in Trade, Cable Openings: 0.25 to 0.35 in, Tapered MNPT Connection, 90 deg Angle, Steel, Electro-Galvanized, White, 1-13/16 in L x 2-1/4 in W Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a95f5cc1eae5106b7f4821edd34674179ba9a89f93227432d17b40cdf52a3252.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a95f5cc1eae5106b7f4821edd34674179ba9a89f93227432d17b40cdf52a3252.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Crouse-Hinds_CG5090_350_Specification_Sheet_CA.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Crouse-Hinds_CG5090_350_Specification_Sheet_CA.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e2591020677e3f4a06dfa44770294e5b59dc7819413ebeaa1bdb1ce89a7cea8b.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e2591020677e3f4a06dfa44770294e5b59dc7819413ebeaa1bdb1ce89a7cea8b.pdf

• Neoprene bushings are color-coded by cable diameter for quick and easy identification of proper cord grip
• Rugged construction protects cord from damage
• Compact design permits close spacing of fitting on panel application
• Tightening one nut creates watertight seal
• Male tapered thread NPT
• Provide a means for passing a cord into an enclosure
• Form a watertight seal for cord
• Provide pullout protection for cord
• Suitable for use with portable cords which including S, so, STO, ST, SJ, SJT, SJTO and SVO
• 19/32 in maximum cable
• 1-3/16 in cross corner
• 1-3/16 in hex body
• 1-3/16 in exposed length
• For NEMA 4 enclosure
