The 2014 NEC has mandated ground fault and arc fault circuit protection on many 15 and 20 A kitchen and laundry circuits. GE dual function circuit interrupter (DFCI) offers both ground fault and combination arc fault (GFCI and AFCI) protection in a simple to apply and cost effective solution.

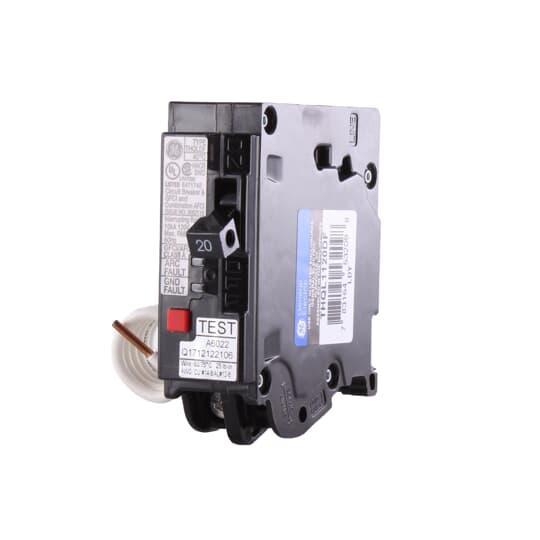

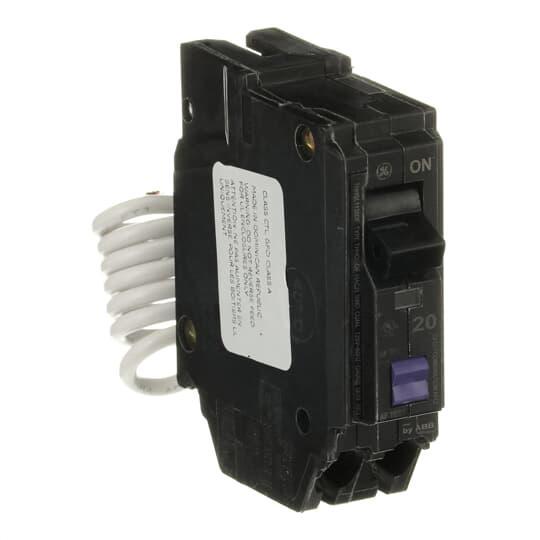

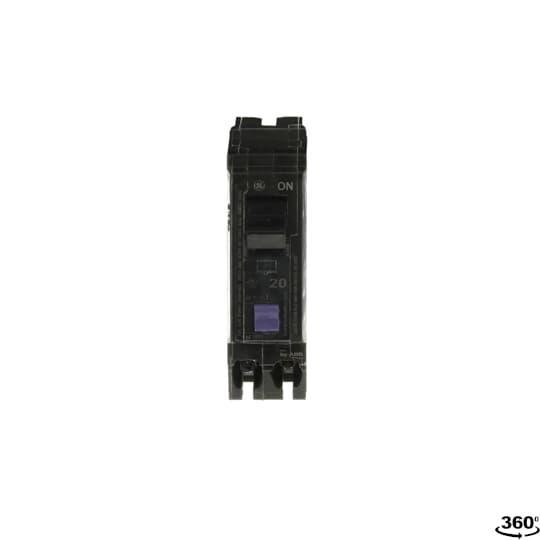

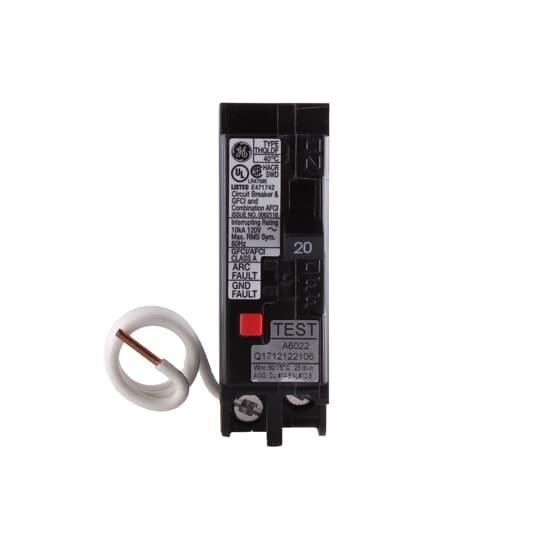

GE QLINE™ Dual Function Circuit Breaker, Type THHQL AFCI/GFCI Plug-In, 120/240 VAC, 20 A, 50/60 Hz, 22 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1, Pivot Handle Actuator, Load Lug, 14 to 8 AWG, 12 to 8 AWG Wire, Plug-In Mount, 10 to 50 deg C, 1 in W x 2-3/8 in D x 3-9/32 in H, Plastic

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_THHQL1120DF_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_THHQL1120DF_Specification_Sheet.pdf

• Copper stabs, tin plated for corrosion resistance, make the connection reliable and permanent
• Heat resistant thermoset cases and covers add stability and structural rigidity
• Trips are easy to spot because handles trip to the center position
• The dedicated calibration screw is cemented (not simply papered over) to prevent shifting, the result is stable calibration for optimum trip performance
• 14 to 8 AWG Cu, 12 to 8 AWG Al wire range
• GE's Dual Function Circuit Interrupter (DFCI) provides ground fault and arc fault circuit protection in one unit
• The 2014 National Electric Code mandated Ground Fault and Arc Fault circuit protection on many 15 and 20 A kitchen and laundry circuits
• Our DFCI offers both ground fault and combination arc fault (GFCI and AFCI) protection in a simple to apply and cost effective package
• 22 kA at 120 VAC interrupt rating
