The IDEAL® 61-657 is Cat IV 1000 VAC, IP67 UL Listed, dual range non-contact Voltage Tester that automatically detects and indicates the presence of voltages between 12 to 1000 VAC (Low Range) and 50 to 1000 VAC (High Range) with the push of a button. The tester can sustain a drop from 6.6 ft (2 m) and provides non-contact detection of voltage through an antenna enclosed in plastic at the tip of the tester which senses the presence of the electromagnetic field present around live conductors. The tip is illuminated by a green LED when powered on and switches to a red flashing LED, and audible beep that increase in frequency as the voltage level increases. The tester is powered by two 1.5 V AAA batteries and features an in tip LED flash light, an audible disable function, a lanyard tie-off point, an auto power off function and a low battery indication.

IDEAL® Voltage Tester, Non-Contact, 12 to 1000 VAC Maximum Working Voltage, 6.6 ft Distance, LED Light Source, LED Display, (2) 1.5 V AAA Alkaline Battery, Battery Supply, 50/60 Hz Frequency, Environmental Conditions: 32 to 104 deg F Operating, 14 to 122 deg F Storage, IP67 Enclosure, Plastic, 6.4 in L x 1 in W x 1.2 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_61_627_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_61_627_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_61_657_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_61_657_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_61_657_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_61_657_Specification_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_61_627_Warranty.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_61_627_Warranty.pdf

• Low battery indication - if battery voltage is less than around 2.4 V, the green led in the tip will flash 3 times and the buzzer will send out one long beep, then turn off the device

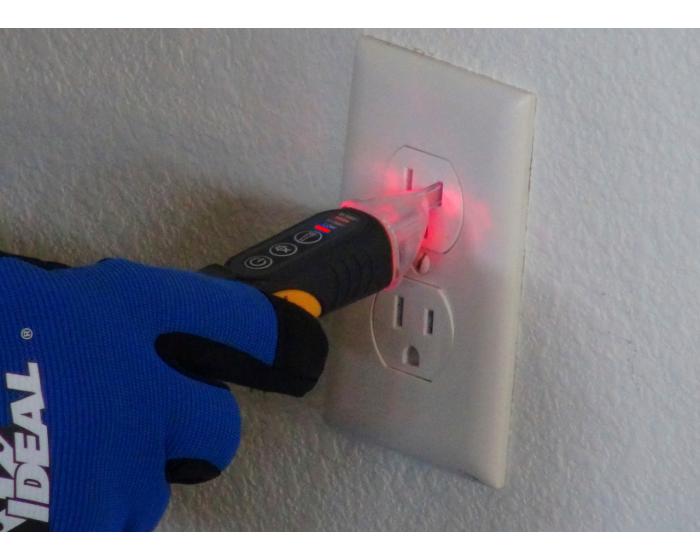

• Senses 2 Vage ranges 12-1000 VAC or 50-1000 VAC allowing detection of low voltage (doorbells, thermostats, etc.) and standard voltage in tamper-resistant outlets when the tip is located near the Hot receptacle and/or Hot Connection point on the outlet
• Dust Tight and Water proof (1 m for 30 min) Industrial Design makes this tester easy to grip and capable of sustaining a drop from 6.5 ft (2 m)
• An LED Flashlight in the tip operates independently of the tester functions and can be used to illuminate the work area, press the Flashlight Button to turn it On/Off
• Audible Notification Disable - The tester can be operated with a visual only indication of voltage when working in noise sensitive/noise restricted area with the simple press of a speaker button
• Auto Power Off - After 10 min of inactivity (no button pressed and no signals detected), the tester will emit one long beep (0.5s) and then shut off. Note, if the flashlight is on, it will be also shut off
