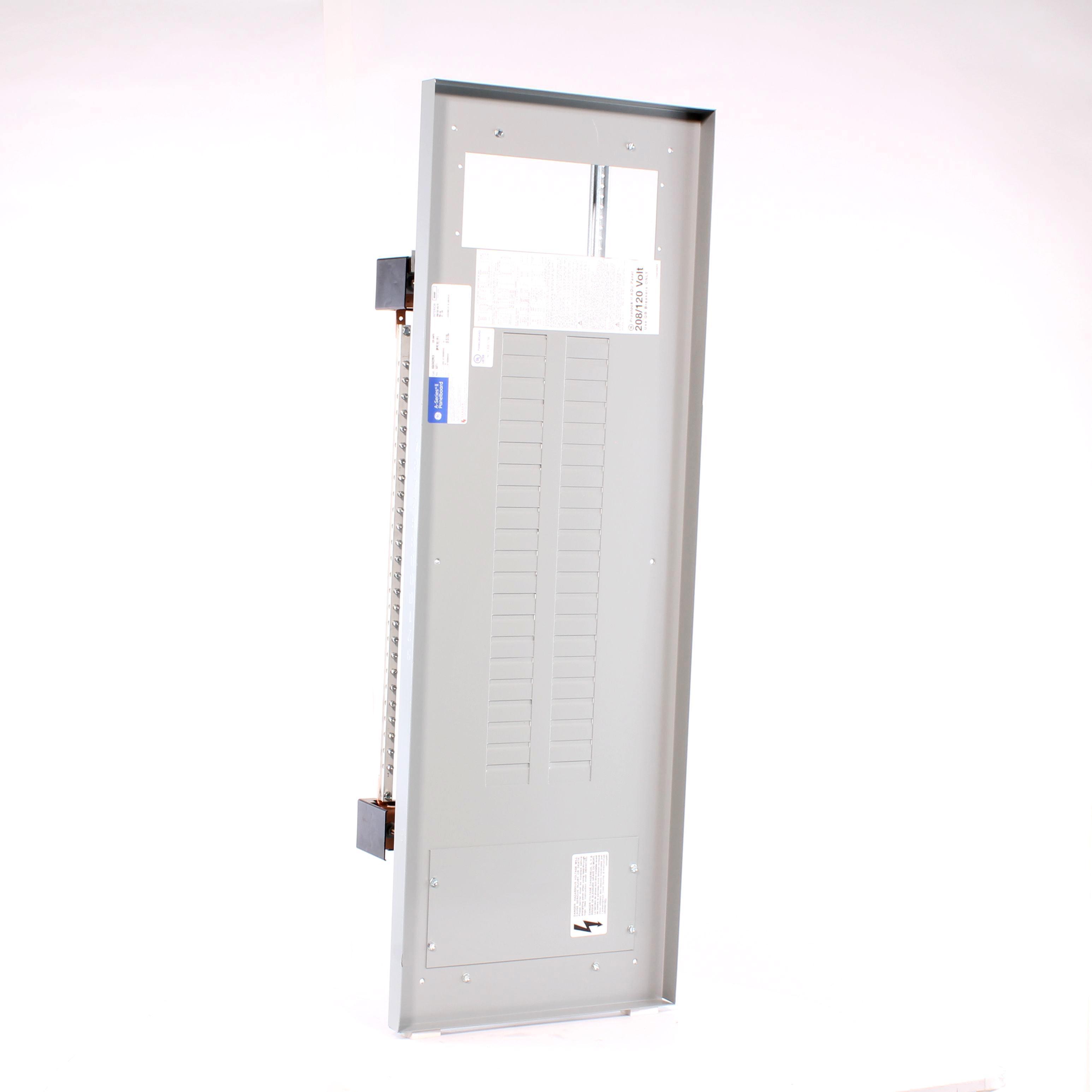

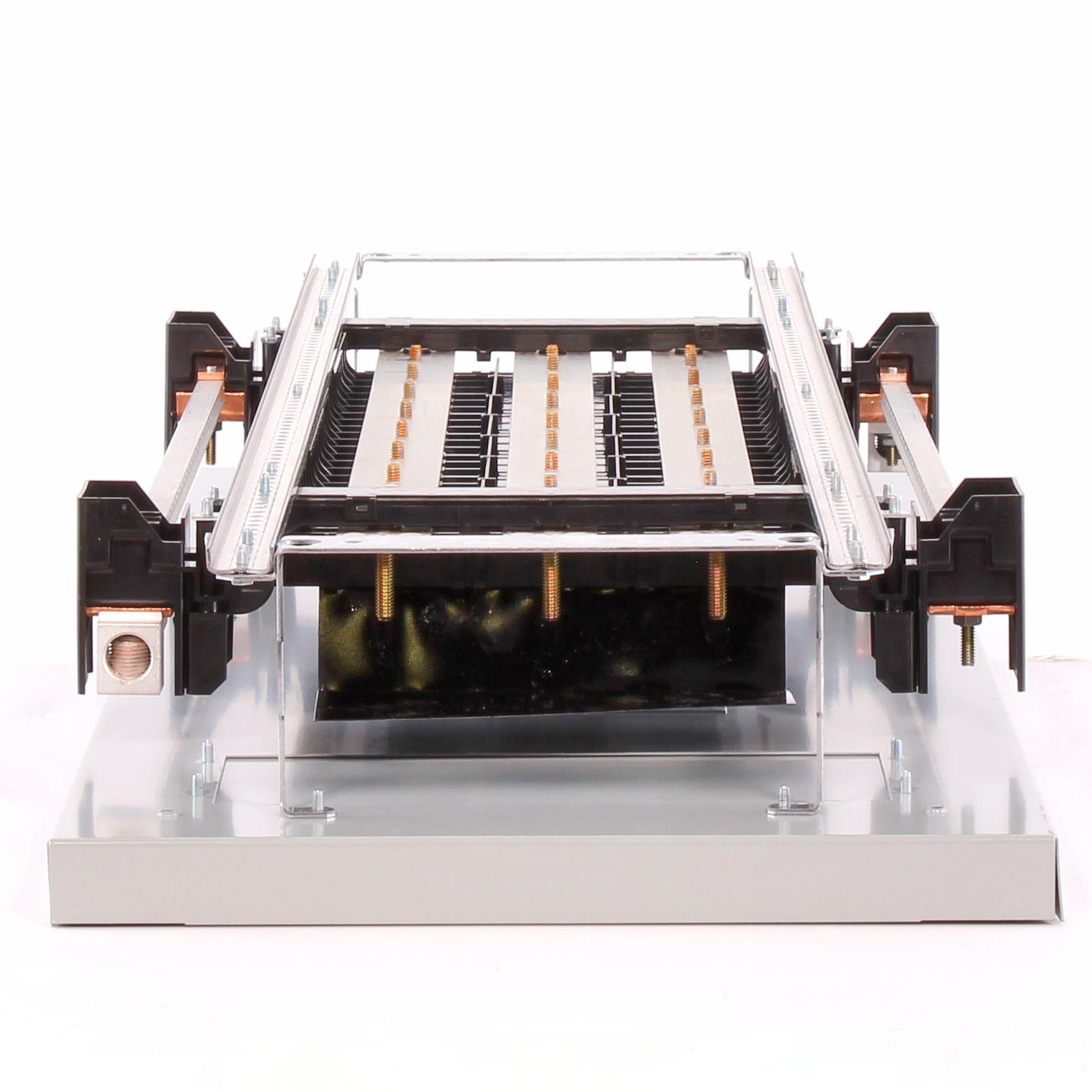

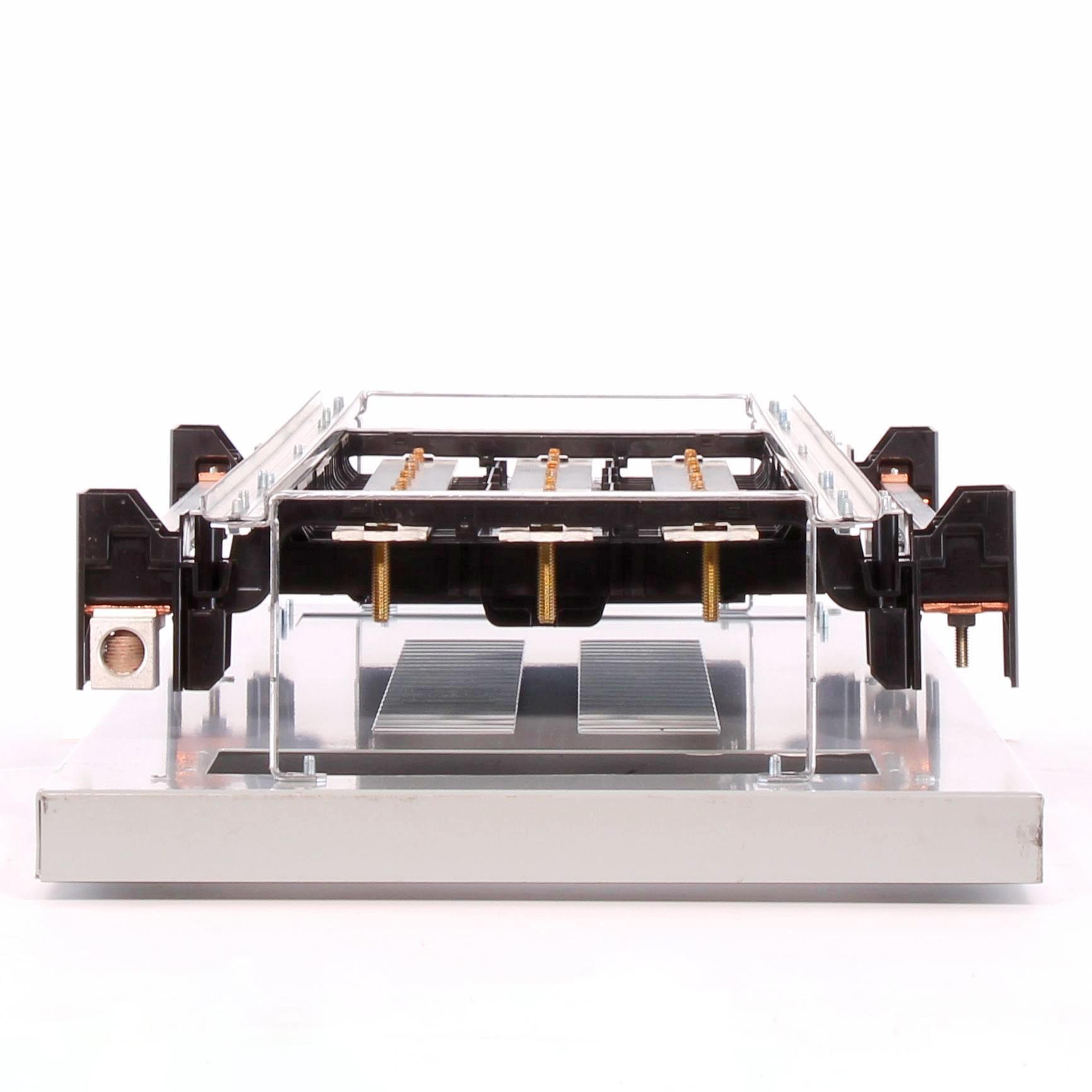

GE Pro-Stock™ Lighting Panelboard, 3-Phase Interior Unassembled, Series: A-Series™ II, 240 VAC, 225 A, 3 Pole, 42 Circuits, Aluminum Bus, Feed-Through Feed, Bolted-On Mounting, NEMA 1/3R/12 Enclosure, 46-1/2 in L x 17 in W x 49-1/2 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_AQU3422RCXAXT1_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_AQU3422RCXAXT1_Specification_Sheet.pdf

• Maximum system voltage is up to 240 VAC for AQ panelboard line
• Field installable kits allow you to shift gears on the fly
• Standard Pro-Stock™ panels have the capability of adding sub feed breaker or feed-through lug in the field
• All panel are convertible between main lug or main breaker
• Reversible interior and no need to specify top or bottom feed
• Solid state Spectra™ rms or thermal magnetic breakers available as mains or sub-feeds
• Flush or surface mounted trims with door within door and front hinge to box options available
• Modular kits allow for field installation of 200% neutrals and service entrance bonding straps
• Extruded split neutrals speed and simplify wiring
• Field installable TVSS (transient voltage surge suppression) kits, 200 kA per phase
• Up to six poles of sub feed available in 400 A and 600 A and up to 3-poles of sub feed available in 225 A
• 49-1/2 in H box/front
• 32 go schedule
