BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high conductivity electrolytic copper. The connectors are normally tinplated, lead plated or plated with proprietary BURNDY® brite finish to provide durable long lasting corrosion resistance. The connector design has been matched to the cable Size to provide the necessary physical strength requirements for reliable electrical performance.

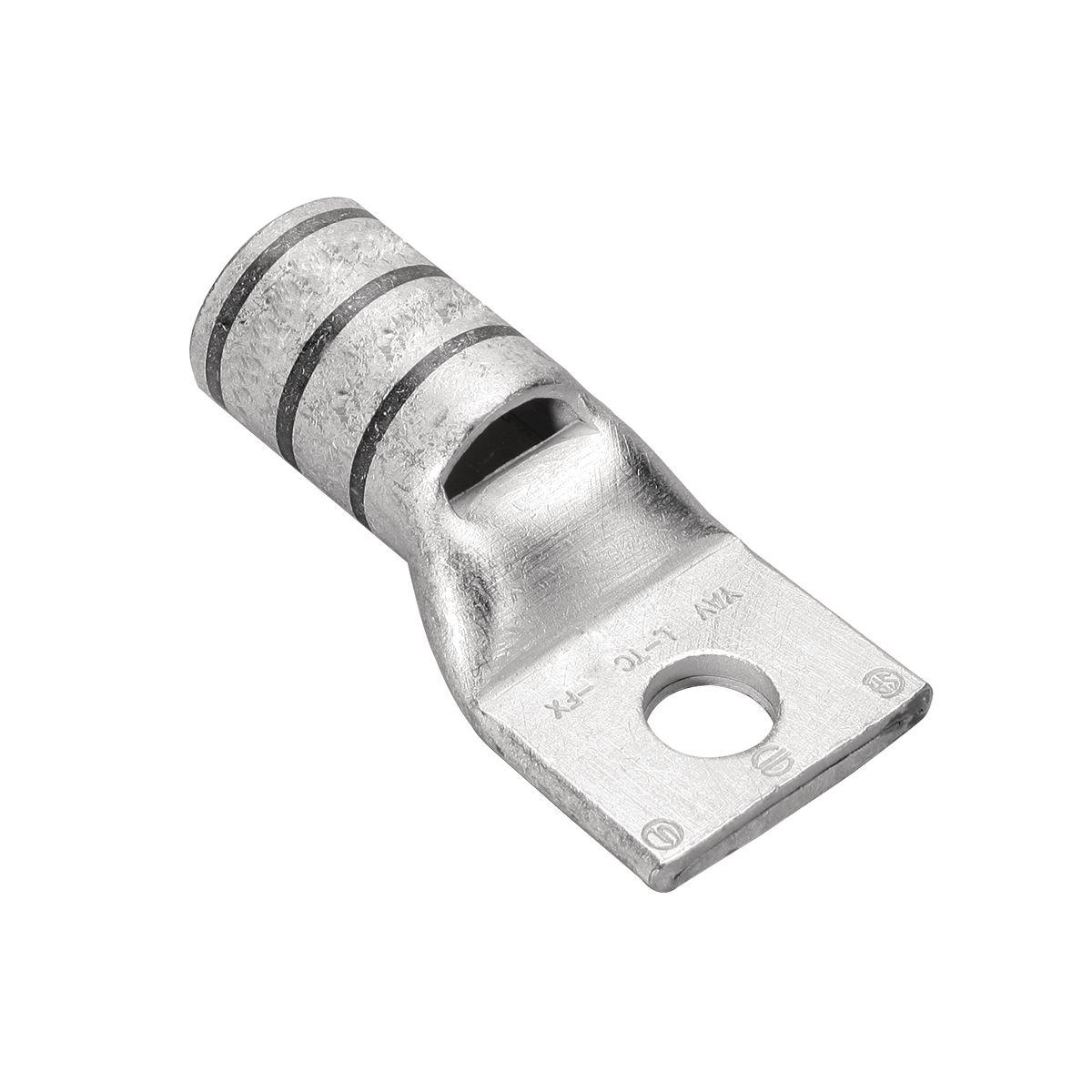

BURNDY® HYLUG™ Compression Lug, 1-Hole Heavy Duty Uninsulated, Series: YAV-L, Stranded Copper Conductor, 8 AWG Conductor, Die Code: 38, 600 VAC to 35 kV, 1/4 in Stud, Ring Straight Tongue, 0.46 in W x 0.07 in THK Tongue, 1.22 in Overall Length, Short Barrel, 0.41 in L Barrel, 1/2 in L Wire Strip, Electro-Tin Plated Copper

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YAV8CL2BOX_Full_Engineering_Drawing.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YAV8CL2BOX_Full_Engineering_Drawing.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YAV8CL1BOX_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YAV8CL1BOX_Specification_Sheet.pdf

• Manufactured from seamless pure electrolytic copper tubing to provide maximum conductivity, low resistance and excellent ductility for crimping
• Seamless tubular crimp barrel design - No seams to split resulting in a very high quality electrical connection, also can be used on solid conductor
• Double thick tongue structurally a very strong terminal tongue
• Produced from tubular copper, extra copper material assures the compression connector will operate cooler than the conductors it connects
• Internally bevelled barrel for easy cable entry, especially for flexible conductors
• Inspection hole provides easy visual check for proper conductor insertion
