BURNDY® YA392N

Share Print

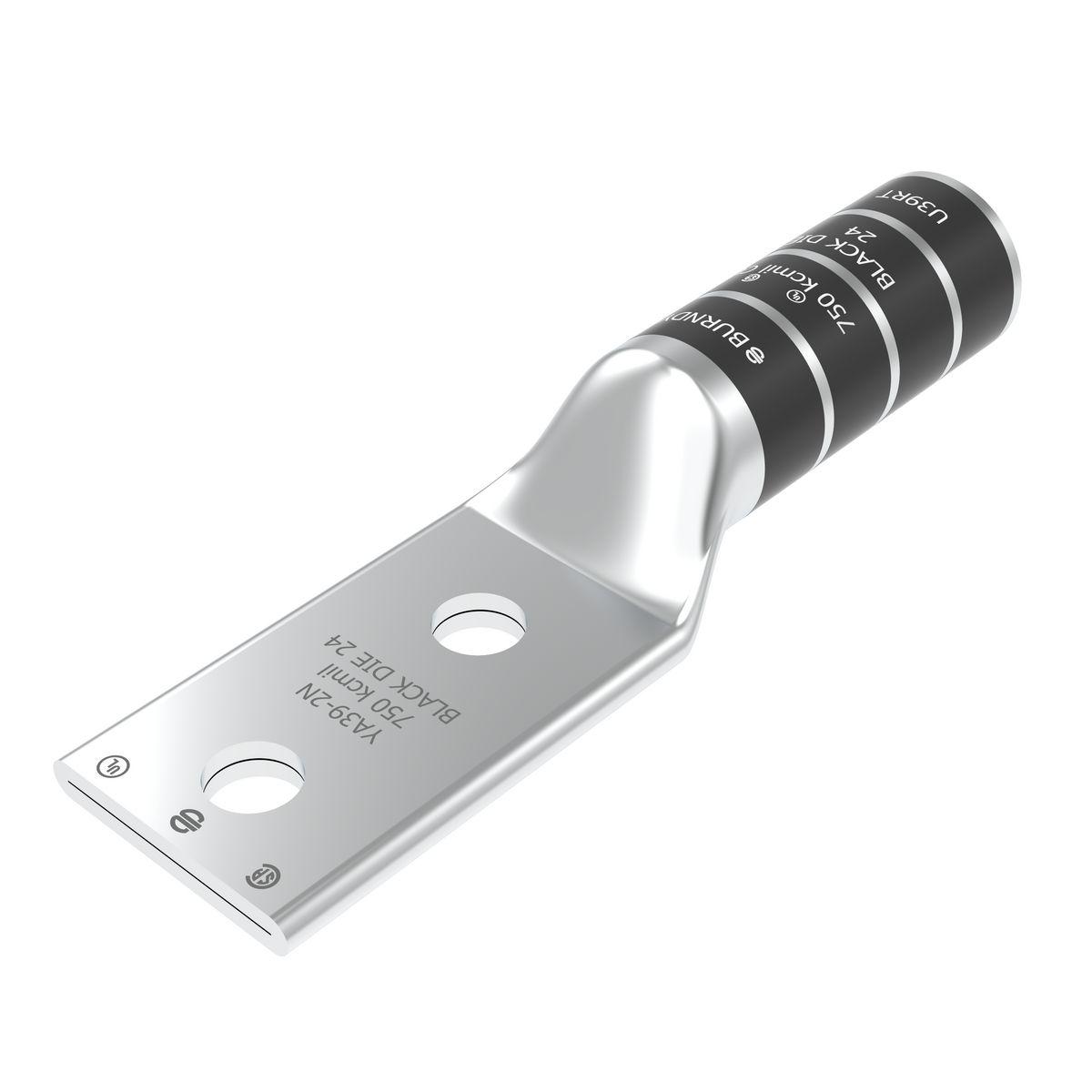

BURNDY® HYLUG™ YA392N 2-Hole Compression Lug, 750 kcmil Stranded Copper Conductor, Die Code: 24, 1/2 in Stud, Tin Plated Copper

  • MPN: YA392N

  • IESPN: 171001

  • UPC: 781810522356

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH

    • Availability: loading

    • Branch Availability
BURNDY® YA392N

BURNDY® HYLUG™ Compression Lug, 2-Hole, Stranded Copper Conductor, 750 kcmil Conductor, Die Code: 24, 600 to 35000 VAC, 1/2 in Stud, Straight Tongue, 1.91 in W x 0.27 in THK Tongue, 6.87 in Overall Length, Chamfered/Long Barrel, 2.88 in L Barrel, 2-3/4 in L Wire Strip, 90 deg C, 1-3/4 in Mounting Hole, Tin Plated Copper, Black

Type      2-Hole
Conductor Type      Stranded Copper
Conductor Size      750 kcmil
Die Code      24
Voltage Rating      600 to 35000 VAC
Stud Size      1/2 in
Tongue Type      Straight
Tongue Size      1.91 in W x 0.27 in THK
Overall Length      6.87 in
Barrel Type      Chamfered/Long
Barrel Size      2.88 in L
Specifications      2-3/4 in L Wire Strip
Temperature Rating      90 deg C
Mounting Hole Size      1-3/4 in
Material      Tin Plated Copper
Color      Black
  • Without inspection window
