The ZL1D LED strip light with its drop lens, provides a clean look for commercial or architectural applications. Intentional uplight helps minimize the cave effect on the ceiling. You get the application versatility of a fluorescent fixture, with the efficiency you expect from LED. Highly efficacious, the ZL1D maximizes savings yet does so without compromising light levels. The ZL1D is available in lengths of 2, 4 and 8 ft, allowing you to match existing fluorescent fixtures or keep the same aesthetic throughout your site.

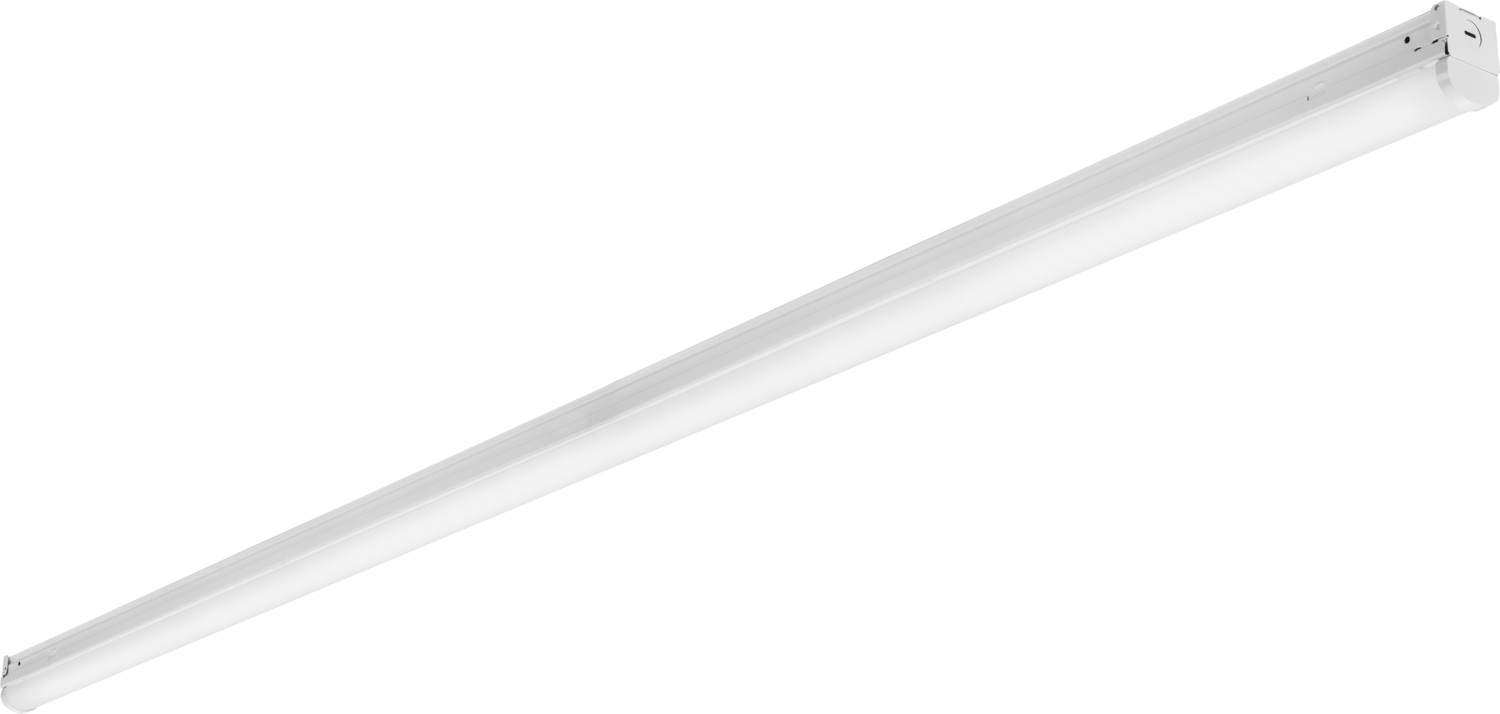

Lithonia Lighting®, ZL1D L48 3000LM FST MVOLT 35K 80CRI WH, Strip Light Fixture, Compact Low Profile T8, Series: ZL1D, 120 to 277 VAC, 75 W Fixture, LED Lamp, 1500 Lumens/ft Light Output, 100000 hr Average Life, 3500 K Color Temperature, 80 CRI, Snap-On/Snap-Off Drop Frosted Diffused Lens, 3000 Lumens, Ceiling/Pendant/Surface/Suspended Mounting, Steel Housing Material, High Gloss Baked White Enamel Housing Finish, 48.028 in L x 2.234 in W x 2.9882 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_ZL1D_L48_3000LM_FST_MVOLT_35K_80CRI_WH_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_ZL1D_L48_3000LM_FST_MVOLT_35K_80CRI_WH_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_TZL1D_L96_6000LM_FST_MVOLT_40K_80CRI_WH_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_TZL1D_L96_6000LM_FST_MVOLT_40K_80CRI_WH_Specification_Sheet.pdf

• Built on the compact, low-profile Z strip channel, this LED strip offers long maintenance free life, several color temperatures, lumen outputs and lengths
• Ideal for new construction and retrofit applications in T8 lengths
• Compact design channel and cover are formed from code gauge cold rolled steel
• Easy to install six point row aligner included for continuous row mounting
• Standard diffuse snap on/snap off lens eliminates pixels, improves uniformity and minimizes glare
• Utilizes high output LEDs integrated on a two layer circuit board, ensuring cool running operation
• Factory installed nLight® power pack option for synchronous dimming and networking

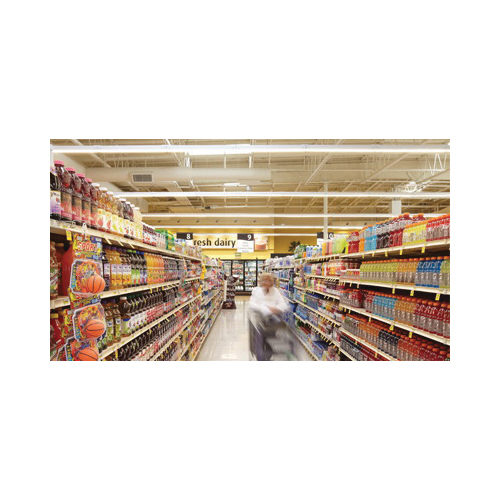

• Continuous row mounting for aisle applications
