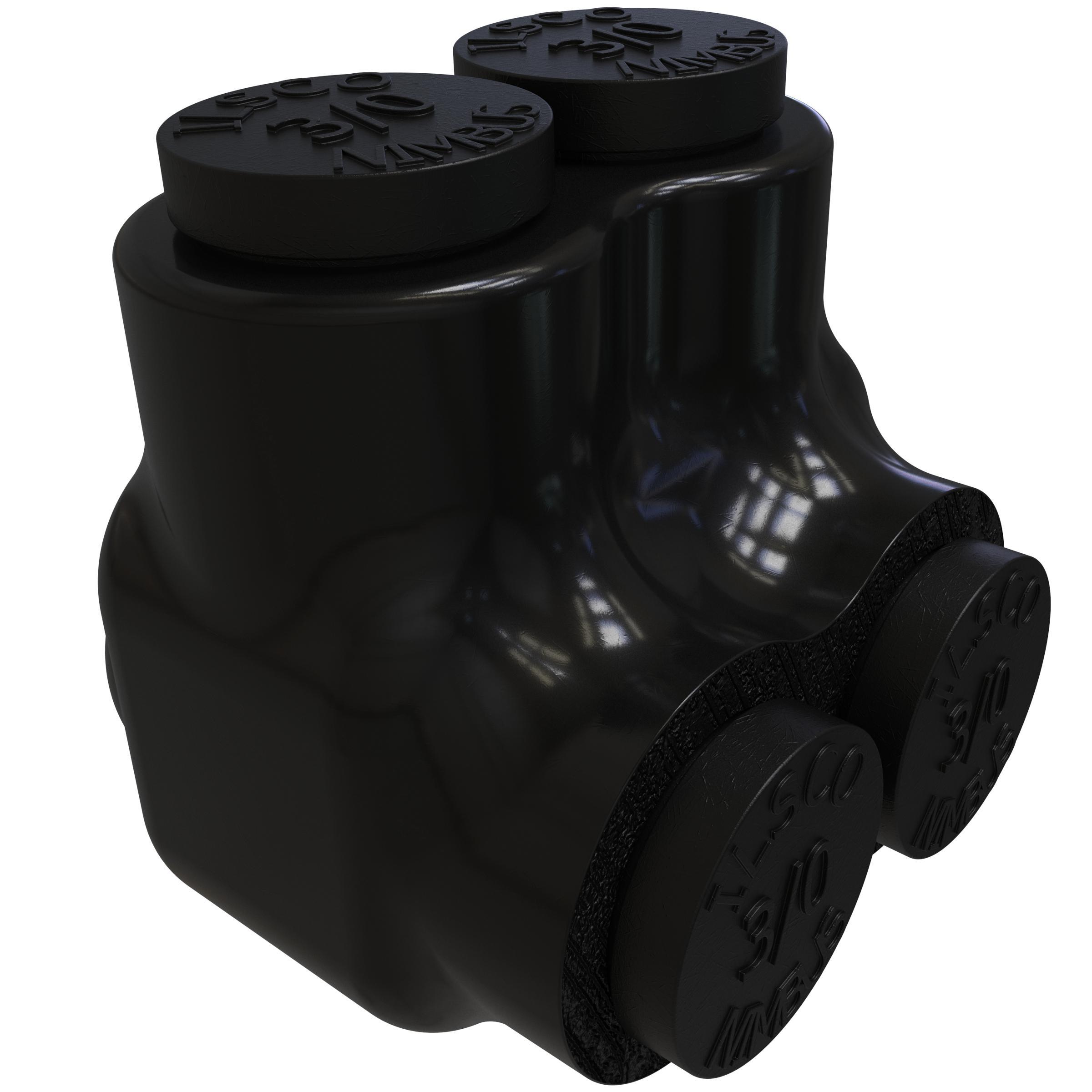

ILSCO® NIMBUS® Multi-Tap Connector, Type PBTS 1-Sided Entry 2-Port Dual Rated Insulated, Aluminum/Copper Conductor, 600 VAC, 6 to 3/0 AWG Wire, 1/4 in Hex, 225 A, -45 to 90 deg C, Aluminum, 1.89 in L x 1.58 in W x 1.86 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/ILSCO_PBTS-2-3_0_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/ILSCO_PBTS-2-3_0_Specification_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/ILSCO_GGC_2_Warranty.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/ILSCO_GGC_2_Warranty.pdf

• Broad wire range 14 AWG to 750 kcmil
• High dielectric strength plastisol is chemical resistant
• Black cover is UV rated
• Removable port and screw plugs
• Pre-filled with DE-OX® oxide inhibiting compound
• Per NEC article 310-16 allowable ampacities are as follows 4 to 95 A, 1/0 to 170 A, 3/0 to 225 A, 250 to 290 A, 350 to 350 A, 600 to 475 A and 750 to 535 A
• Flexibility in the field
• Ensures reliability
• Patented screw design
• Entry port closure
• Prevents oxides from forming
• Chemical resistant
• Incoming and outgoing conductors must be staggered
