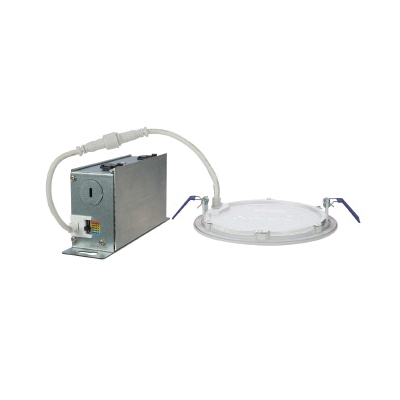

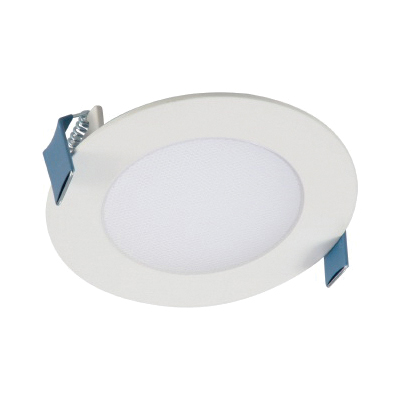

The HLB4 is a 4 in ultra thin LED lens downlight with remote driver/junction box suitable for new construction and remodel applications. Field selectable color temperature and high color rendering provide excellent color performance. Simplified installation in drywall or suspended ceilings eliminates recessed cans saving time and money. Installs from below the ceiling in as little as 3-1/2 in plenum height, can be used in direct contact with insulation and is airtight. Use for general area lighting in low to medium height ceilings where energy savings, long life and economy are required.

Halo Downlight, 4 in Aperture Integrated Round Ultra Thin, Series: HLB4, 120 VAC, 0.1 A, LED Lamp, 12 W Lamp, 1 Lamp, 72.7 Lumens/W Light Output, 50000 hr Average Life, Soft White Light, 3000 K Color Temperature, 90 CRI, Dimmable Ballast, Acrylic Diffuser Lens, 600 Lumens, IP44 Enclosure, Ceiling/Direct/Surface Mounting, Die Cast Aluminum Housing Material, 6.42 in Dia x 3.16 in H Dimensions

Direct mount (does not require recessed housing or junction box) • Delivers up to 750 lumens; Achieves L70 at 50,000 hours in IC and non-IC applications • 2700K, 3000K, 3500K, 4000K and 5000K field selectable CCT; 3000K and 4000K fixed CCT • 90 CRI (min), R9 50 and color accuracy within 4 SDCM • Wet location listed for showers and protected ceilings; Available in 120V or 120-277V

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8e804f911fca21308796ce6ebbaf53d95c63d25c6fea6983d8c32340ba336831.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8e804f911fca21308796ce6ebbaf53d95c63d25c6fea6983d8c32340ba336831.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_104ef8ad754b498572b23cbcbdab437477c10713412e5a55d3b89ea8c5aca63d.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_104ef8ad754b498572b23cbcbdab437477c10713412e5a55d3b89ea8c5aca63d.pdf

• Achieves L70 at 50000 hr in IC and non-IC applications
• Wet location listed for showers and protected ceilings
• Dimmable with 120 VAC dimmers
• Direct mount does not require recessed housing or junction box
