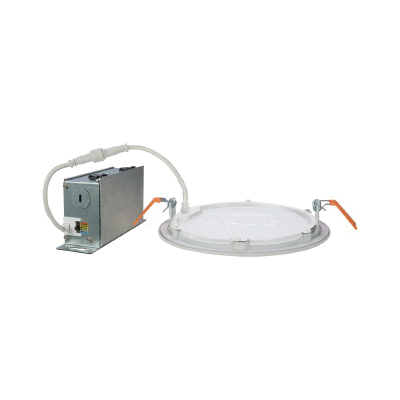

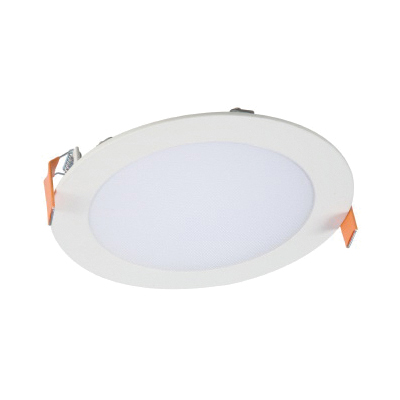

The HLB6 is a 6 in ultra-thin LED lens downlight with remote driver/junction box suitable for new construction and remodel applications. Field selectable color temperature and high color rendering provide excellent color performance. Simplified installation in drywall or suspended ceilings eliminates recessed cans saving time and money. Installs from below the ceiling in as little as 3-1/2 in plenum height, can be used in direct contact with insulation and is airtight. Use for general area lighting in low to medium height ceilings where energy savings, long life and economy are required.

Halo, HLB6099FS1EMWR, Aperture Integrated Round Recessed Downlight, Series: HLB6, 120 VAC, 16 W Fixture, 0.133 A, LED Lamp, 16 W Lamp, 1 Lamps, 64.8/66.3/67.4/68.4/69 Lumens/W Light Output, 6-1/8 in Ceiling Opening, 50000 hr Average Life, Bright/Soft/Warm White Light, 2700/3000/3500/4000/5000 K Color Temperature, 90 CRI, Dimmable Ballast, Acrylic Diffuser Lens, 900 Lumens, IP44 Enclosure, Ceiling/Surface/Direct Mounting, Die Cast Aluminum Housing Material, 6.42 in Dia x 3.16 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8e804f911fca21308796ce6ebbaf53d95c63d25c6fea6983d8c32340ba336831.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8e804f911fca21308796ce6ebbaf53d95c63d25c6fea6983d8c32340ba336831.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_36a8f61066c6bfa35cfde6f7f32a2b080a4077b456e576c56c4d753d6a6a997e.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_36a8f61066c6bfa35cfde6f7f32a2b080a4077b456e576c56c4d753d6a6a997e.pdf

• Ultra-low profile surface luminaire with downlighting distribution
• Downlight cone of light performance
• Dimmable to 5% with many 120 VAC leading edge and trailing edge phase control dimmers
• Accu-Aim™ optics for directional control
• Damp location listed for walls
• Wet location listed for showers and outdoor protected ceilings
• Plug-in LED connector for easy installations
• Direct mount does not require recessed housing or junction box
• Achieves L70 at 50000 hr in IC and non-IC applications
• 90 CRI (min), R9 50 and color accuracy within 4 SDCM
• Recyclable 4-color unit carton suitable for point of purchase merchandising display
