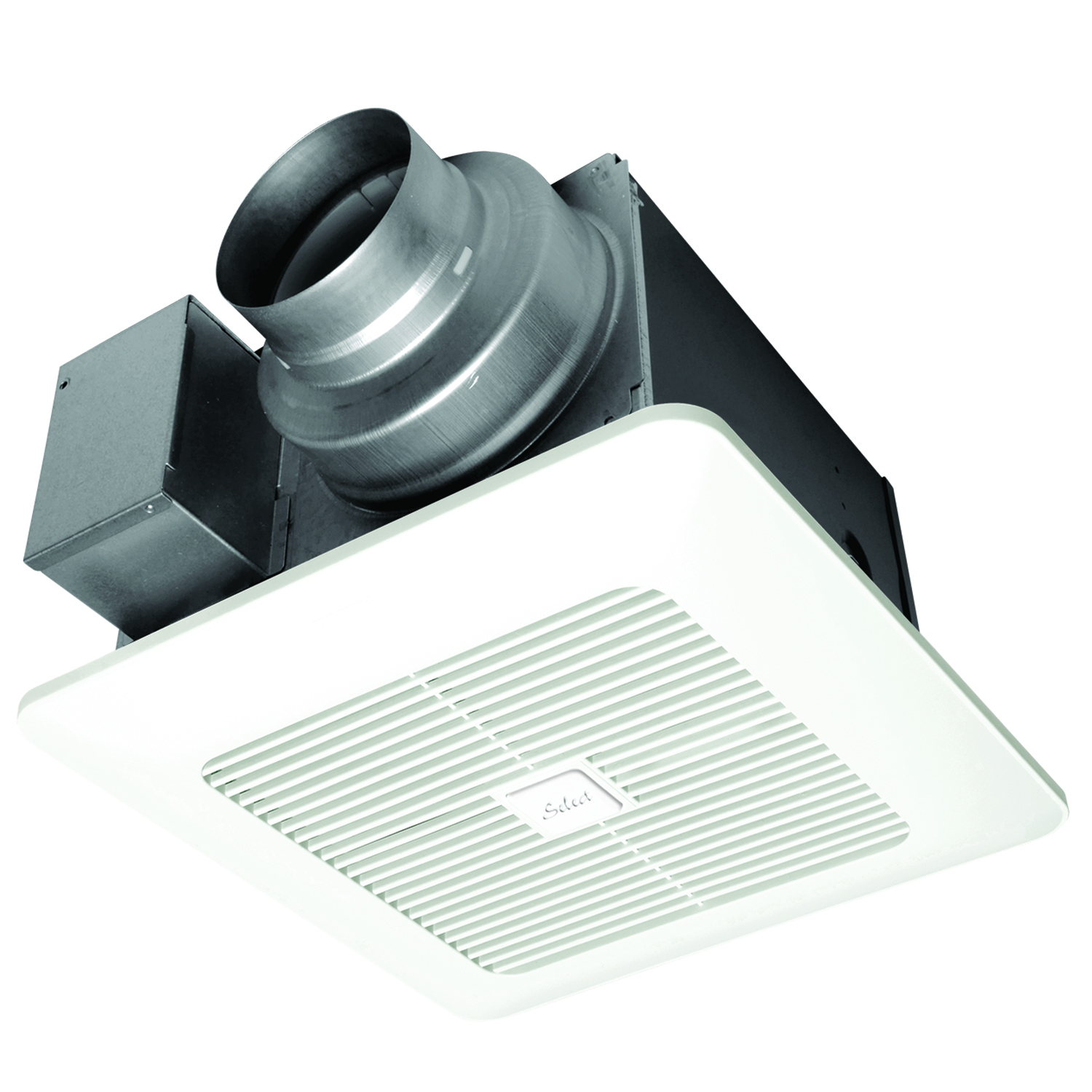

Panasonic FV-0511VKS2

Panasonic WhisperGreen® Select™ FV-0511VKS2 Multi-Speed Ventilation Fan, 50/80/110 cfm, 4 in Dia Duct, 9.9 W, 120 VAC, 0.1 A, Import

  • MPN: FV-0511VKS2

  • IESPN: 197931

  • UPC: 885170337305

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
Panasonic FV-0511VKS2

Reintroducing WhisperGreen® Select™, our whole house IAQ solution with enhancements that will provide greater value to our customers. First, our improved single-hinged Flex-Z Fast™ bracket for more flexible, fast and easy installation. Other enhancements include a new elegant grille design, an environmentally friendly 26 ga Zinc-Aluminum-Magnesium (ZAM) housing design and dual access junction box that helps simplify wiring in tight spaces.

Panasonic WhisperGreen® Select™ Ventilation Fan, Multi-Speed, 50/80/110 cfm, 4 in Duct Dia, 120 VAC, 0.1 A, 60 Hz, 9.9 W, 13 in Grille Length, 13 in Grille Width, Polypropylene Grille, 10-1/4 in Housing Length, 10-1/4 in Housing Width, 7-3/8 in Housing Height, Zinc-Aluminum-Magnesium Housing, Ceiling Mount, Humidity Sensing: No, Motion Sensing: No, Import

Type      Multi-Speed
Flow Rate      50/80/110 cfm
Duct Diameter      4 in
Voltage Rating      120 VAC
Amperage Rating      0.1 A
Frequency Rating      60 Hz
Power Rating      9.9 W
Grille Length      13 in
Grille Width      13 in
Grille Material      Polypropylene
Housing Length      10-1/4 in
Housing Width      10-1/4 in
Housing Height      7-3/8 in
Housing Material      Zinc-Aluminum-Magnesium
Mounting Type      Ceiling
Humidity Sensing      No
Motion Sensing      No
Domestic/Import      Import
  • pdfInstruction/Installation Manual
  • pdfMTR
  • pdfService Manual
  • pdfSpecification Sheet
  • Customizable, all-in-one whole house precision ventilation solution ideal for use in the bathroom, laundry room, sun room, basement or garage
  • Customizable ceiling mount ventilation fan with multi-speed control (0, 30 to 100 cfm, in 10 cfm increments) and a built-in high/low adjustable time delay activated by a wall switch
  • Environmentally friendly 26 ga zinc-aluminum-magnesium (ZAM) housing design
  • Improved Flex-Z Fast™- single-hinge bracket with added flexibility, fast and easy
  • Elegant grille design complements the aesthetics of any room
  • Integrated 4 in dual duct adapter enhances installation options, fits in 2 x 8 construction
  • Built-in damper reduces back draft and helps with blower door testing
  • Built-in metal flange provides blocking for penetrations through drywall as an air barrier, and assists with the decrease in leakage in the building envelope during blower door testing
  • Suitable for installation in ceilings insulated up to R60
  • Articulating and expandable installation bracket up to 24 in
  • Removable permanently lubricated plug-in motor
  • Motor equipped with thermal cut-off fuse
  • Enclosed brushless ECM smart motor technology rated for continuous operation
  • Attaches directly to housing with torsion springs
  • Includes a motion sensor cap for use as a cover when the motion sensor Plug-n-Play™ module has not been selected
  • 3.1 W at 50 cfm/5.1 W at 80 cfm/9.9 W at 110 cfm power rating
  • 0.04 A at 50 cfm/0.06 A at 80 cfm/0.10 A at 110 cfm ampere rating
  • < 0.3 sones at 1/4 in SP
