Panasonic FV-0510VSL1

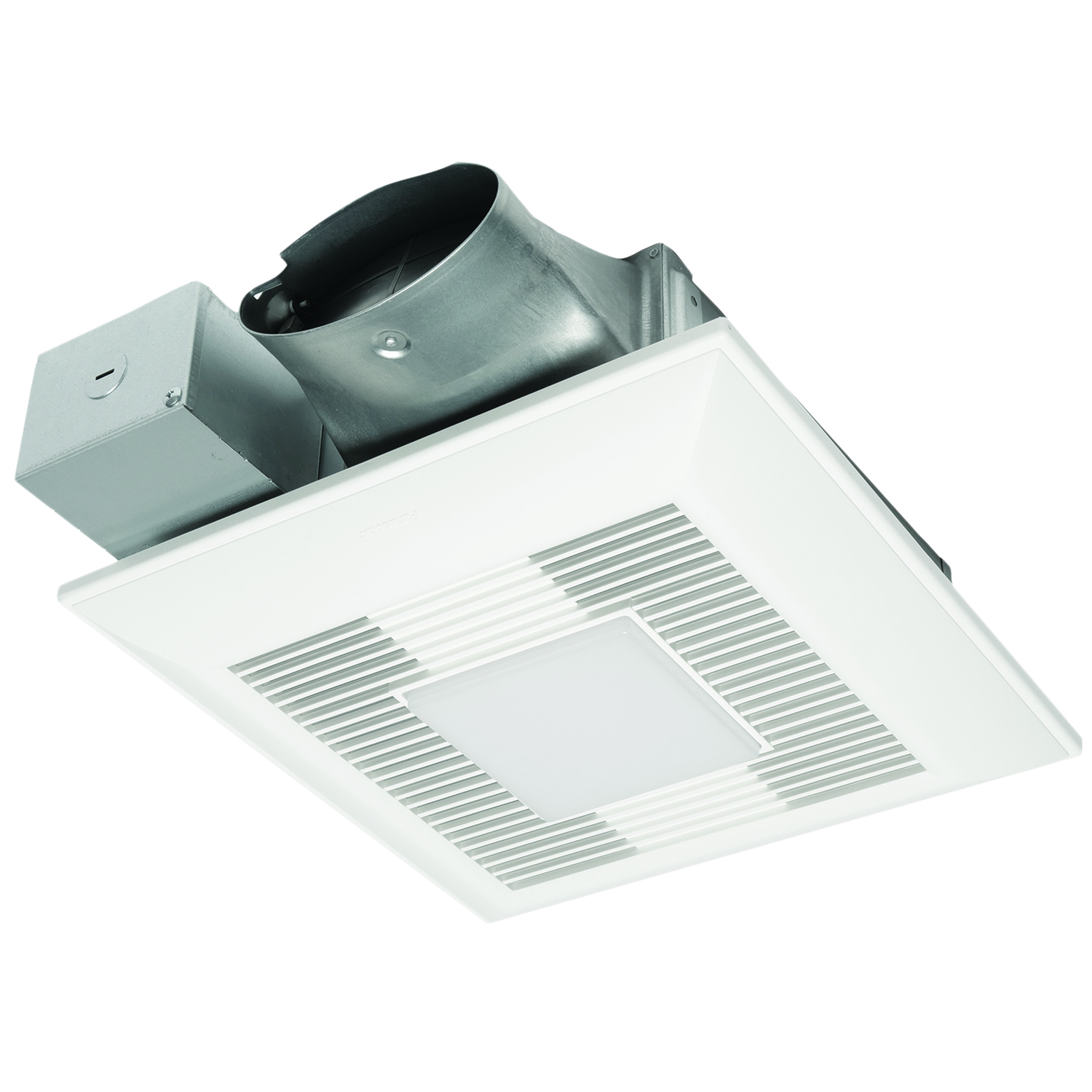

Panasonic WhisperValue™ DC™ SmartFlow™ FV-0510VSL1 Ventilation Fan/Light With ECM Motor and L-Shaped Mounting Bracket, LED Lamp, 120 VAC, Steel Housing

  • MPN: FV-0510VSL1

  • IESPN: 198336

  • UPC: 885170317826

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
Panasonic FV-0510VSL1

WhisperValue® DC™ fan/LED light is the lowest profile energy Star® certified ventilation fan. Ideal for residential construction (single and multi-family) and manufactured homes. It features Panasonic's revolutionary ECM motor with SmartFlow™ optimum cfm technology and incorporates a Pick-A-Flow™ speed selector switch to customize airflow (50, 80 or 100 cfm).

Panasonic WhisperValue™ DC™ SmartFlow™ Ventilation Fan/Light, 120 VAC, 0.39 A, LED Lamp, 10 W Lamp, 50000 hr Average Life, Warm White Light, 3000 K Color Temperature, 90 CRI, Ceiling Mounting, 733/856/954 rpm Fan Speed Control, 50/80/100 cfm, 4 in Fan, Steel Housing Material, 10-1/4 in L x 10-1/4 in W x 3-3/8 in H Dimensions

Voltage Rating      120 VAC
Amperage Rating      0.39 A
Lamp Type      LED
Lamp Wattage      10 W
Average Life      50000 hr
Light Color      Warm White
Color Temperature      3000 K
Color Rendering Index (CRI)      90
Mounting Type      Ceiling
Fan Speed Control      733/856/954 rpm
Fan Size      4 in
Housing Material      Steel
Dimensions      10-1/4 in L x 10-1/4 in W x 3-3/8 in H
Air Flow Rate      50/80/100 cfm
  • pdfCompliance Certificate https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panasonic_FV0510VSL1_Compliance Certificate.pdf
  • pdfInstallation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panasonic_FV0510VSCL1_Instruction_Sheet.pdf
  • pdfManual https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panasonic_FV0510VSCL1_Manual.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panasonic_FV0510VSL1_Datasheet.pdf
  • pdfSpecification Sheet-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panasonic_FV0510VSCL1_Datasheet_1.pdf
  • Revolutionary ECM motor with SmartFlow™ technology for optimum cfm output
  • Pick-A-Flow™ speed selector - one fan, you choose the cfm (50, 80 or 100 cfm)
  • Low profile 3-3/8 in D fits virtually anywhere, including 2 x 4 construction
