Lithonia Lighting® is committed to providing sustainable lighting solutions that are enabled and enhanced by LED lighting and other advanced technologies, including lighting controls.

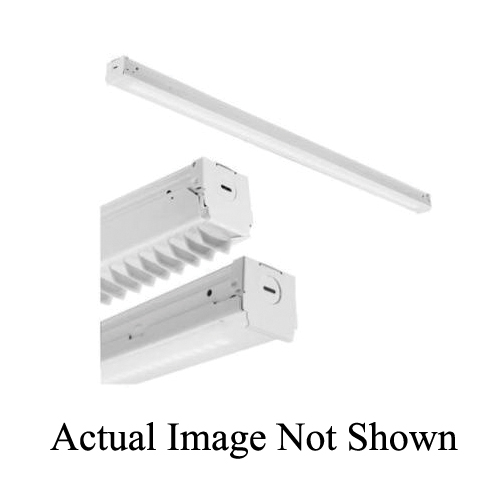

Lithonia Lighting®, TZL1N L96 10000LM FST MVOLT 40K 80CRI WH, Strip Light Fixture, Compact Low Profile T8, Series: TZL1N, 120 to 277 VAC, 75 W Fixture, LED Lamp, 2 Lamps, 60000 hr Average Life, White Light, 4000 K Color Temperature, 80 CRI, Acrylic Glass Lens, 10000 Lumens, Surface Mounting, Steel Housing Material, 46 in L x 98-1/2 in W x 31-1/16 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_ZL1N_L48_3000LM_FST_MVOLT_40K_80CRI_WH_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_ZL1N_L48_3000LM_FST_MVOLT_40K_80CRI_WH_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_ZL1N_L48_3000LM_FST_MVOLT_40K_80CRI_WH_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_ZL1N_L48_3000LM_FST_MVOLT_40K_80CRI_WH_Specification_Sheet.pdf

• Built on the compact, low profile Z strip channel, this LED strip offers long life, several color temperatures, lumen outputs and lengths
• Lumen output up to 2000 lumens per foot
• Luminaire should be installed in applications where ambient temperatures do not exceed 86 deg F (30 deg C)
• Tool-less channel cover for easy installation
• Fixture may be surface mounted (with or without ZSPRG hanger), pendant or stem mounted with appropriate mounting options
• Three-point aligner locks in place for easy continuous row mounting
• For use in damp locations between -4 to 86 deg F
• Tandem double length fixtures
• Ideal for new construction and retrofit applications in both T5 and T8 lengths
• Compact design channel and cover are formed from code gauge cold-rolled steel
• Five stage iron phosphate pretreatment assure superior paint adhesion and rust resistance
• Utilizes high output LED integrated on a two-layer circuit board, ensuring cool running operation
• LED static lamp
• The ZL series LED strip lights provide aesthetic and performance choices, integrated controls options and innovative mounting accessories
• When paired with occupancy sensors, dimming and intuitive controls, you save energy and extend the life of the fixtures
