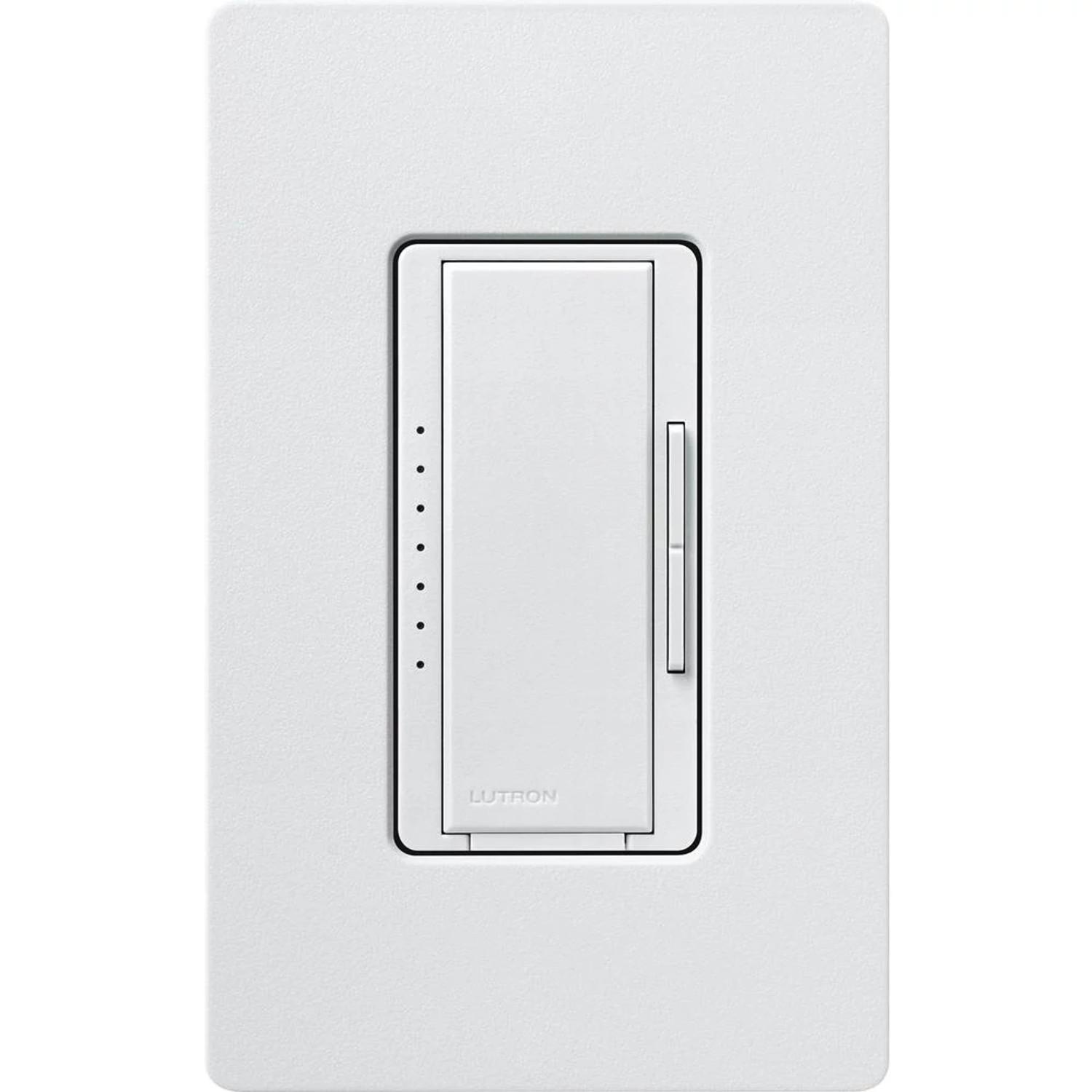

The Maestro PRO LED+ Neutral Optional Dimmer Switch features advanced phase selectable dimming, color change kits, and is designed for a broader compatibility range of high efficiency lighting. UL listed to control dimmable LEDs with integrated drivers, ELV, MLV, incandescent, and halogen loads as well as Phillips Mark 10® ballasts and Lutron Hi-Lume 1% 2-Wire (LTE) LED drivers. The large decorator style tap switch turns lights on/off and the dimming buttons allows for local fine-tune dimming. Works with up to 9 Maestro Companion Dimmer Switches (MA-R-xx) to create a multi-location dimming application. Neutral Optional. Screw terminal installation. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Lutron® Maestro® C.L® Dimmer, Phase Selectable, Series: MA-PRO, 120 VAC, 250/500/400 W Power, 50/60 Hz Frequency, 1 Pole, CFL/Halogen/Incandescent/LED Lamp, Operation Mode: On/Off, Tap/Touch Rocker Control, 0 to 40 deg C, Plastic, White, 4.69 in H x 2.94 in W x 0.32 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MA-PRO-PD_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MA-PRO-PD_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MK-D-5-HT_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MK-D-5-HT_Specification_Sheet.pdf
• VIDEO LINK https://lutron.widen.net/content/mywnd9xzlc/mp4/Maestro-LED+-Single-Pole-Installation_English.mp4
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MA-S8AM-AL_Warranty.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MA-S8AM-AL_Warranty.pdf

• Neutral Optional for LED, CFL, and Incandescent/Halogen, Neutral Required for ELV, MLV, dimmable fluorescent ballasts, and Hi-Lume 1 Percent LED drivers
• Single pole or multi-location dimming from up to 9 locations with companion dimmer (MA-R-xx sold-separately)
• Advanced Programming Mode allows users to customize the controls preset light level, high- and low-end trims, disable indicator lights, fade times, and phase select

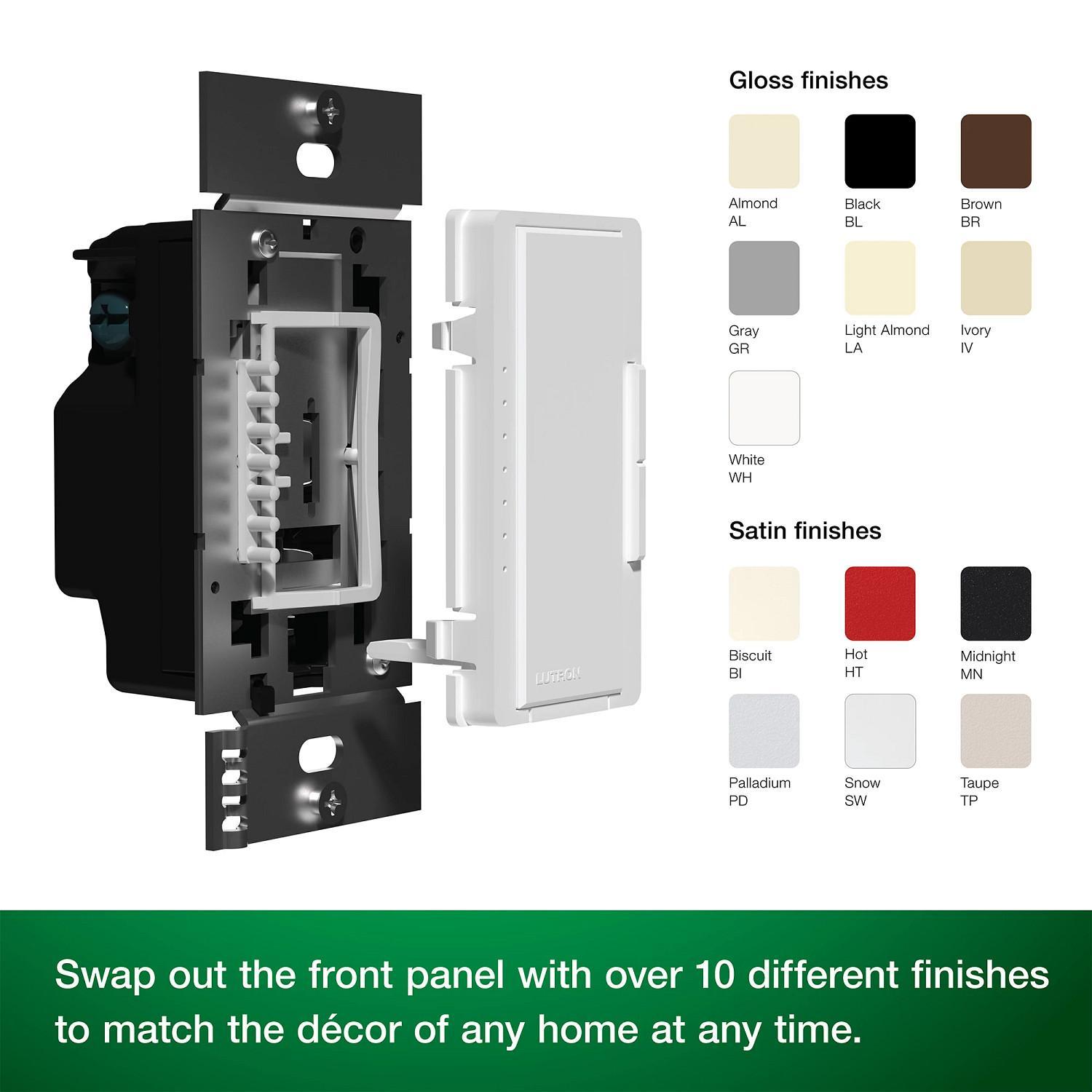

• Interchangeable color kits available for front panel (color change kit MK-D sold separately)

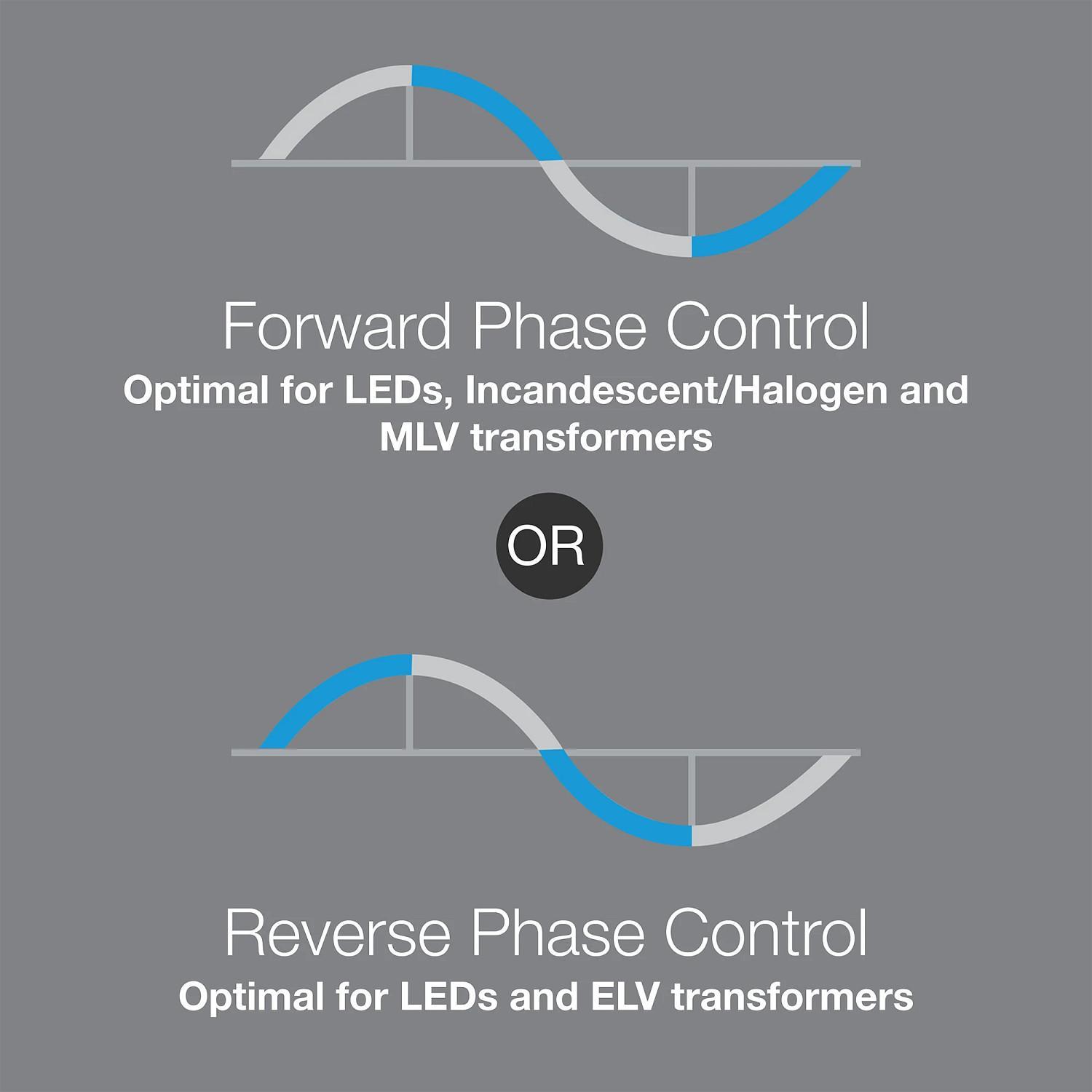

• Phase Auto-Select, Chooses between either reverse or forward phase (When neutral is connected the automatic default is reverse phase, When neutral is not connected, the automatic default is forward phase)
