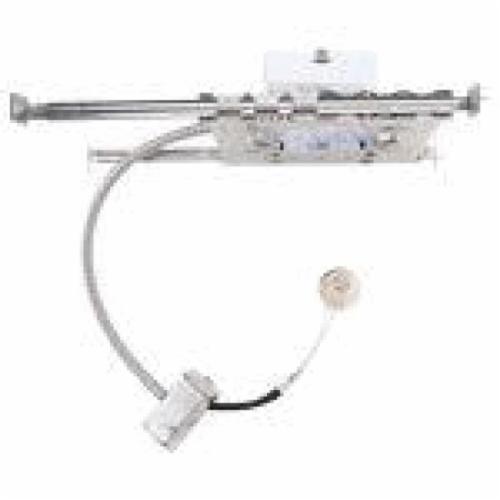

2000LVR Lytecaster® 3-3/4 in Low Voltage MR16 Non-IC Remodel Frame-In Kit is made of 20 ga galvanized steel and will accommodate existing ceilings up to 2 in THK. Non-IC designation requires that insulation be kept a minimum of 3 in away from housing. Includes magnetic low voltage transformer, removable from below. UL listed. Suitable for damp locations. Overall height dependent on selected trim option. Lamp type and wattage dependent on trim kit and frame-in kit combination per attached manufacturer spec sheet. A complete fixture consists of a trim kit and frame-in kit, sold separately. Dimmable with low voltage magnetic dimmer if used with a halogen MR16 lamp.

Philips Luminaires Lightolier Lytecaster® Frame-In Kit, Low Voltage Remodeler Round Standard, 120 VAC, 4-1/8 in Ceiling Opening, Halogen Lamp, 50 W Lamp, 1 Lamp, Ceiling Mount, 3-3/4 in Dia, For Use With: 2005, 05WH, 06, 08, 10, 11, 12, 13, 13WH, 13BK, 22LV, 24LV Reflector Trim, Recessed Downlight, 5.1 in Height, 9.2 in Width, Galvanized Steel Housing

• Brochure-2 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Lightolier_2000LVR_Specification_Sheet.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520617942491.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Lightolier_2000LVR_Specification_Sheet_1.pdf

• 1 x MR16 GU5.3 (Bi-pin) bulb shape
• 20 AWG galvanized steel junction box
• Integral cable clamps permit attachment of non-metallic Romex® or armored cable without need of additional connectors
• Socket housing aluminum, with lamp adjustment assembly allows vertical and horizontal adjustment
• Socket field replaceable two pin socket, prewired with 18 AWG SF1 leads to junction box
• Transformer outboard mounted, magnetic, 120 VAC primary, nominal 12 VAC secondary removable from below
• Thermal protector-insulation must be kept 3 in away from fixture sides and wiring compartments and must not be placed above fixture in a manner which will entrap heat
• Mounting ring 18 AWG galvanized steel, accommodates existing ceilings up to 2 in THK, attaches securely to any type of ceiling material without tools using (3) mounting straps provided
• Nail clips secures junction box and plate to ceiling
• Use unshielded lamps only
• 8.1 in L
• Dimming capability
