EATON ECNR400

Share Print

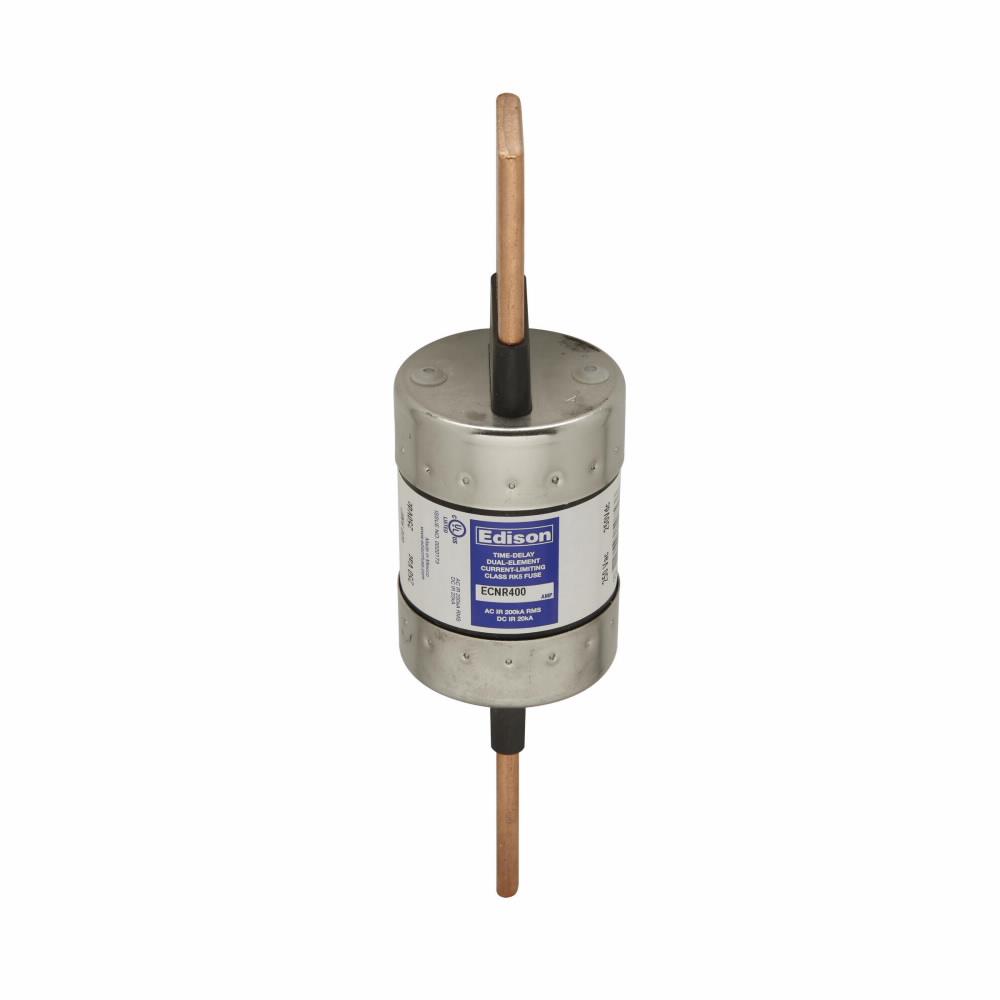

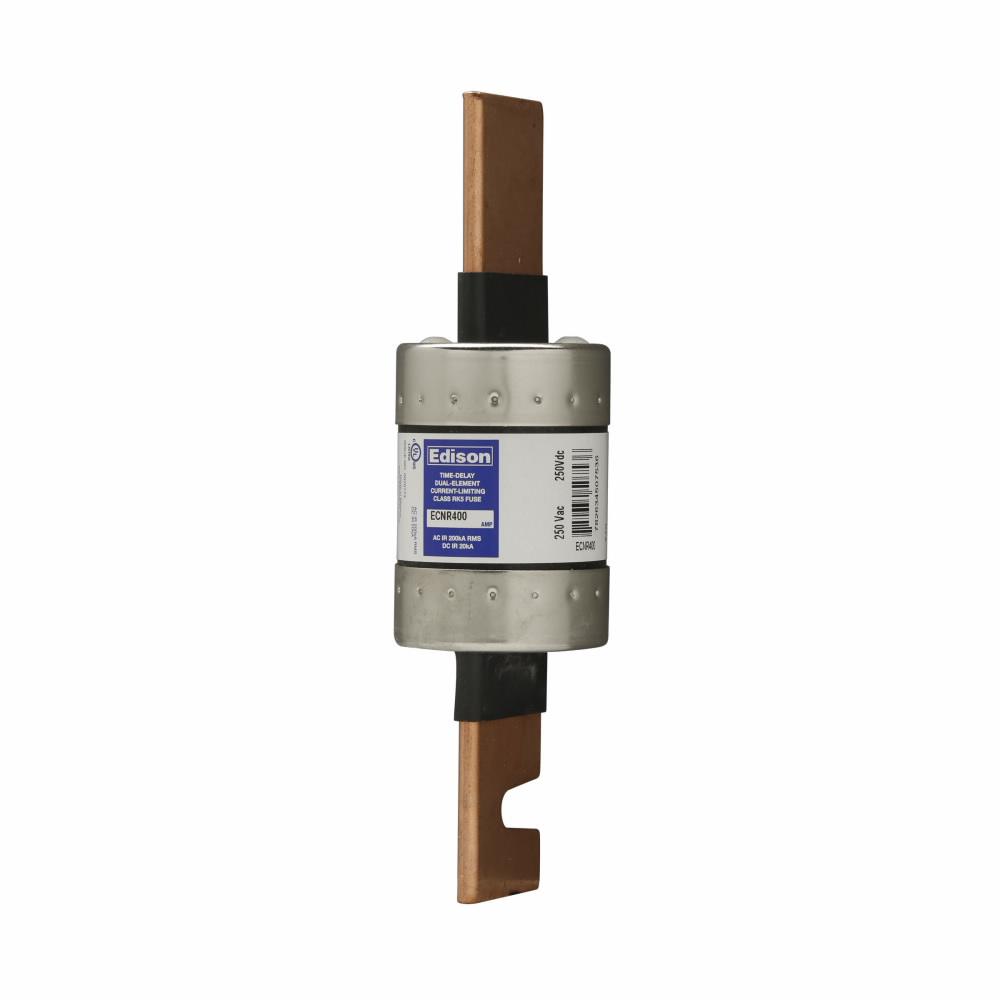

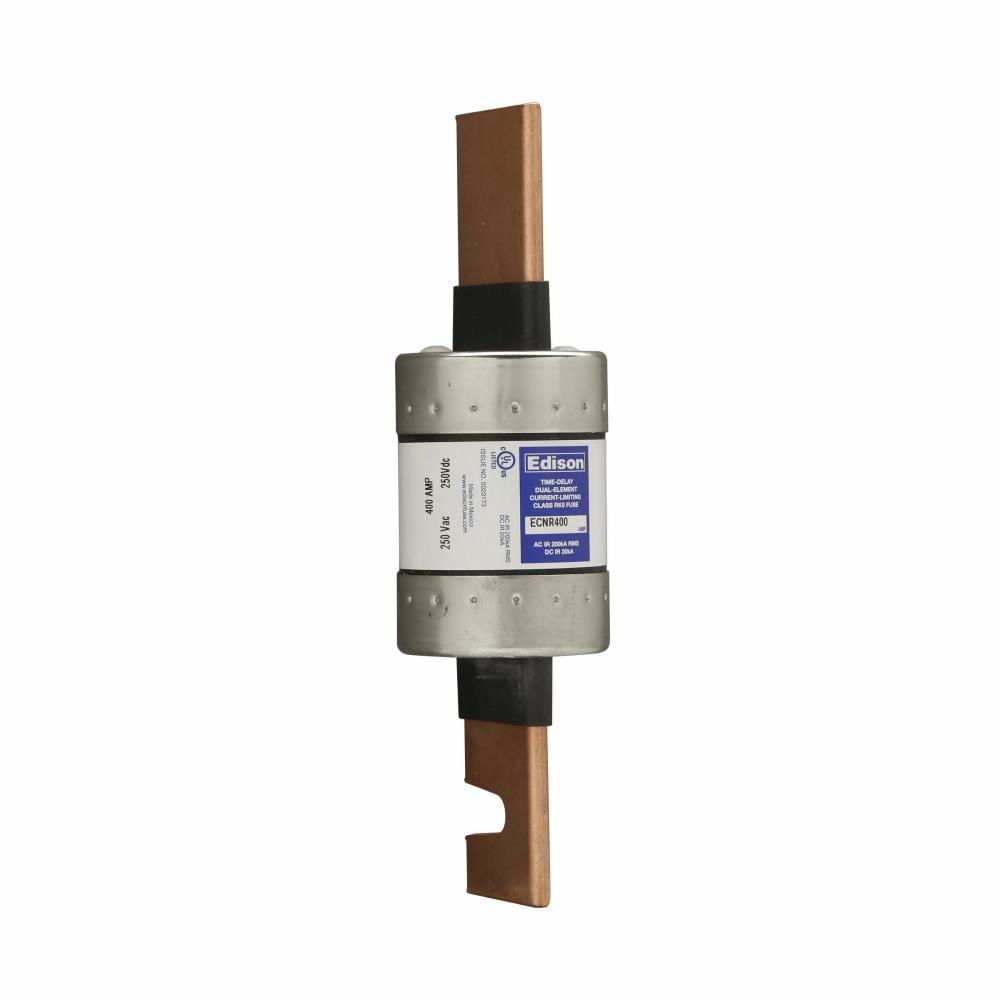

EATON Edison ECNR400 Current Limiting Time Delay Fuse, 400 A, 250 VAC/VDC, 200 kA Interrupt, Class: RK5, Cartridge Body

  • MPN: ECNR400

  • IESPN: 168025

  • UPC: 782634507536

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH

    • Availability: loading

    • Branch Availability
EATON ECNR400

Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.

EATON Edison Time Delay Fuse, Current Limiting, Non-Indicating, 400 A, 250 VAC/VDC, 200 kA Interrupt, Class: RK5, 10 s at 500% Response, Blade End x Blade End Terminal, Cartridge Body, Dual Element, 2.38 in Dia x 8.63 in L Body

Type      Current Limiting
Indicating/Non-Indicating      Non-Indicating
Amperage Rating      400 A
Voltage Rating      250 VAC/VDC
Interrupt Rating      200 kA
Class      RK5
Response Time      10 s at 500%
Terminal Type      Blade End x Blade End
Body Type      Cartridge
Element      Dual
Body Size      2.38 in Dia x 8.63 in L
