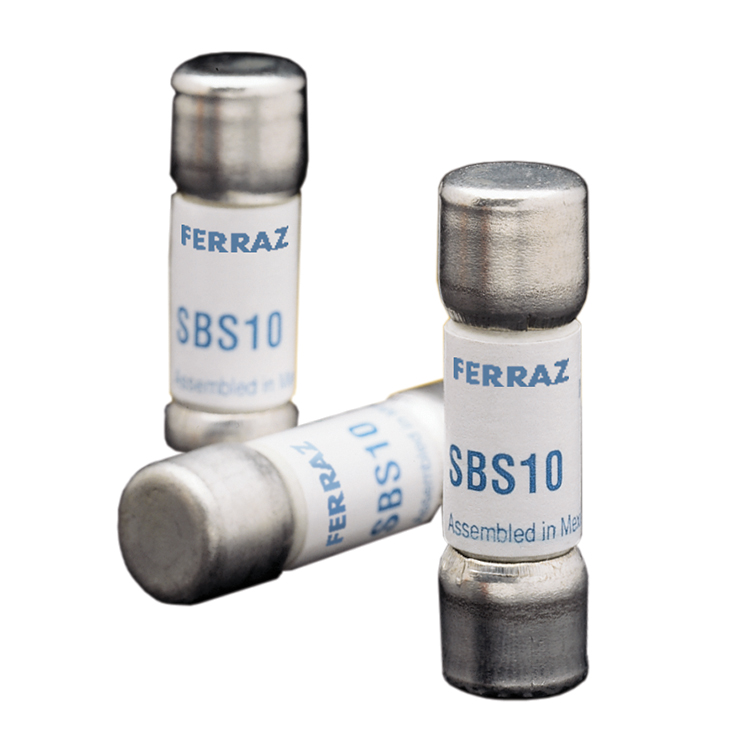

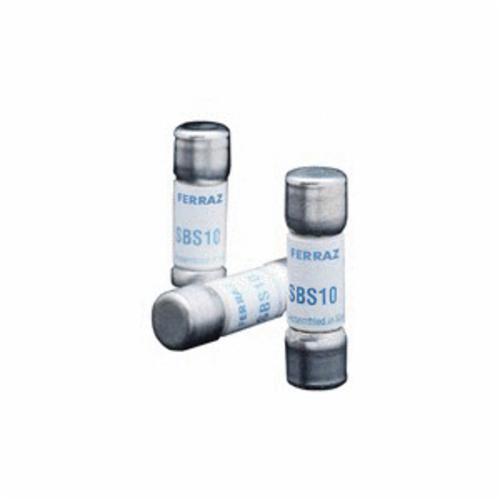

SBS midget fast-acting fuses were developed in response to the industry's demand for smaller equipment and components. They are the only fuses in their size with a full 600VAC rating for all ampere ratings by UL Standard 248-14 and CSA No. 59.2, and are the only fuses of this size with an interrupting rating of 100kA RMS, compared to 10kA on other brands.

Mersen Fast Acting Fuse, Low Voltage, Series: SBS, Rejection/Non-Rejection: Non-Rejection, 5 A, 600 VAC, 100 kA Interrupt, Class: Midget, 29 s Response, Ferrule Terminal, Clip Mount, Cylindrical Body, Fiber, 13/32 in Dia x 1-3/8 in L Body Size

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Mersen_SBS2_10_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Mersen_SBS2_10_Specification_Sheet.pdf

• Small unique physical size for maximum design flexibility and non-interchangeability with other fuse classes
• Fiberglass body provides dimensional stability in harsh industrial environments
• Tin-plated copper contact
• Can be used with UltraSafe™ fuse holders
