All Leviton® hospital grade receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high-abuse tolerance, including health care facilities, manufacturing plants and schools.

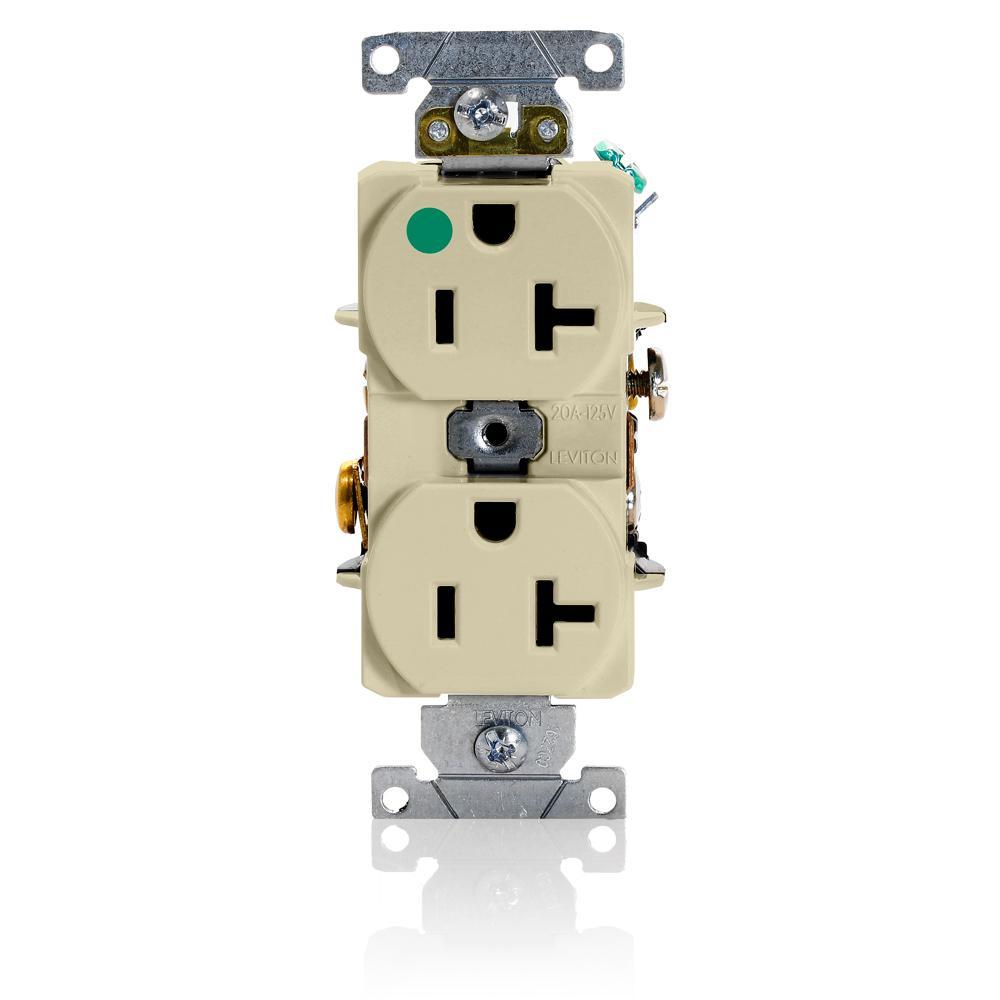

Leviton®, 8300-HI, Straight Blade Receptacle, Duplex Heavy Duty Smooth Face Self-Grounding Standard, Series: 8300-H, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, -40 to 60 deg C, Back/Side Wire Terminal, PBT Polyester Blend/Thermoplastic, Ivory, 4.06 in H x 1.51 in W x 1.18 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_54504-2I_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_54504-2I_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5015-T_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5015-T_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_8300-HI_RoHS.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_8300-HI_RoHS.pdf

• Brass self-grounding clip is permanently staked on for secure and reliable performance
• Wide receptacle face shelf provides exceptional support to the wallplate or box cover
• Body and face made of impact-resistant advanced engineering polymer for extreme durability
• Universal strap design provides ample support for electrical box installations and includes multiple break-off tabs to eliminate interference with virtually any cover or wall plate
• Ground terminal clamp allows for both back and side wiring
• Oversized brass terminal screw heads provide superior clamping force and electrical conductivity
• External wiring clamps allow for back or side wiring and provide visual verification of termination and a faster, easier installation
• Molded in ribs prevent terminal screws from making contact with wall box
• Dielectric voltage withstands 2000 V per UL498
• Full rated current
• Phosphor bronze line contacts
• Brass terminal screws
• Brass grounding screw
• Strap is galvanized steel with riveted ground contacts
• Zinc plated steel clamp nuts
• Brass ground clips
• 14 to 16 in-lb torque
• Back and side wired
