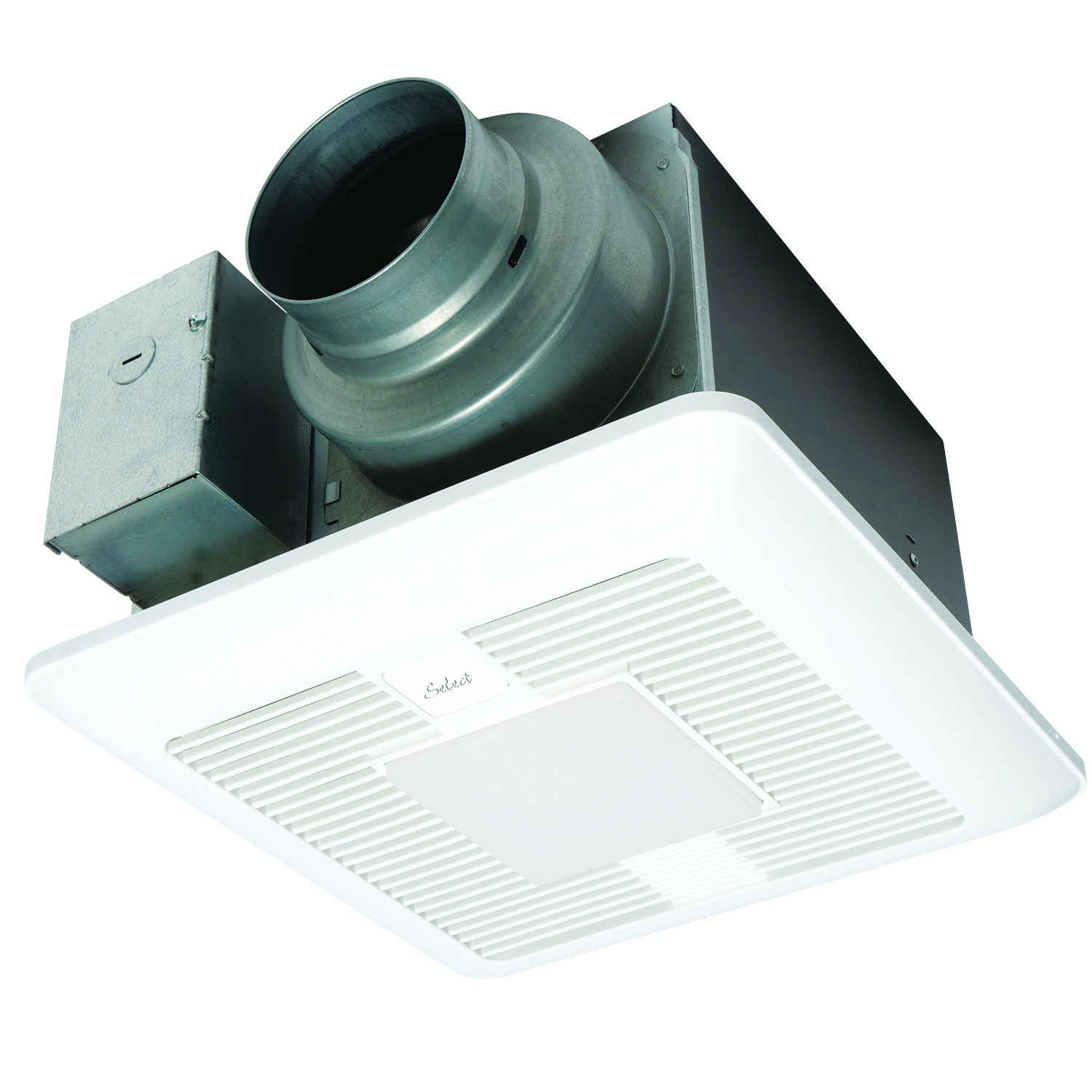

Panasonic FV-0511VKSL2

Panasonic WhisperGreen® Select™ FV-0511VKSL2 Multi-Speed Ventilation Fan With Light, (1) Dimmable LED Lamp, 10.5 W Fixture, 120 VAC, Zinc-Aluminum-Magnesium Housing

  • MPN: FV-0511VKSL2

  • IESPN: 197929

  • UPC: 885170337312

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
Panasonic FV-0511VKSL2

Reintroducing WhisperGreen® Select™, our whole house IAQ solution with enhancements. First, the newly redesigned elegant grille incorporates a 10 W dimmable LED chip panel with < 1W LED night light for energy efficient illumination. Our improved single-hinged Flex-Z Fast™ bracket for more flexible and fast installation. Additionally, WhisperGreen Select® includes an environmentally friendly 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing design.

Panasonic WhisperGreen® Select™ Ventilation Fan, Multi-Speed, 120 VAC, 10.5 W Fixture, 0.11 A, Dimmable LED Lamp, 10 W Lamp, 1 Lamp, 700 lumens, 50000 hr Average Life, Warm White Light, 3000 K Color, 90 CRI, Ceiling Mount, 50/80/110 cfm, Zinc-Aluminum-Magnesium Housing, 10-1/4 in L x 10-1/4 in W x 7-3/8 in H

Type      Multi-Speed
Type      Multi-Speed
Flow Rate      50/80/110 cfm
Voltage Rating      120 VAC
Duct Diameter      4 in, 6 in
Fixture Wattage      10.5 W
Amperage Rating      0.11 A
Voltage Rating      120 VAC
Amperage Rating      0.11 A
Frequency Rating      60 Hz
Lamp Type      Dimmable LED
Power Rating      5.8 W at 80 cfm/11.1 W at 110 cfm
Grille Length      13 in
Lamp Wattage      10 W
Grille Width      13 in
Number of Lamps      1
Grille Material      Polypropylene
Light Output      700 lumens
Average Life      50000 hr
Housing Length      10-1/4 in
Housing Width      10-1/4 in
Light Color      Warm White
Color Temperature      3000 K
Housing Height      7-3/8 in
Color Rendering Index (CRI)      90 CRI
Housing Material      Zinc-Aluminum-Magnesium
Mounting Type      Ceiling
Mounting Type      Ceiling
Housing Material      Zinc-Aluminum-Magnesium
Dimensions      10-1/4 in L x 10-1/4 in W x 7-3/8 in H
Air Flow Rate      50/80/110 cfm
  • pdfAdditional Information https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Panasonic_FV-05-11VKSL1_Additional_Info.pdf
  • pdfAdditional Information https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Panasonic_FV-05-11VKSL1_Additional_Info_1.pdf
  • pdfCatalog-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Panasonic_FV-VS43R_Catalog.pdf
  • pdfData/Spec Sheet-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Panasonic_FV-05-11VKSL1_Data_Sheet.pdf
  • pdfData/Spec Sheet-2 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Panasonic_FV-05-11VKSL1_Data_Sheet_1.pdf
  • pdfInstallation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1537662314998.pdf
  • pdfInstruction/Installation Manual https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panasonic_FV0511VKL2_Manual.pdf
  • pdfInstruction/Installation Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Panasonic_FV-05-11VKSL1_Instruction_Installation.pdf
  • pdfInstruction/Installation Sheet-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Panasonic_FV-0510VSB1_Instruction_Installation.pdf
  • pdfMaterial Safety Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520542784045.pdf
  • pdfMTR https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_47f15dc9fcb32d0975e524e5990fe6895ae2a9dfb79b9917ce4715abad0d928e.pdf
  • pdfService Manual https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panasonic_FV0511VKSL2_Service_Manual.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520575377885.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fd5af8bb749ea6609401ab9f96b934229700f70c4b687bfd463febe3b4f46cb3.pdf
  • Customizable, all-in-one whole house precision ventilation solution ideal for use in the bathroom, laundry room, sun room, basement or garage
  • Customizable ceiling mount ventilation fan with multi-speed control (0, 30 to 100 cfm, in 10 cfm increments) and a built-in high/low adjustable time delay activated by a wall switch
  • Environmentally friendly 26 ga zinc-aluminum-magnesium (ZAM) housing design
  • Improved Flex-Z Fast™- single-hinge bracket with added flexibility, fast and easy
  • Elegant grille design complements the aesthetics of any room
  • Integrated 4 in dual duct adapter enhances installation options, fits in 2 x 8 construction
  • Built-in damper reduces back draft and helps with blower door testing
  • Built-in metal flange provides blocking for penetrations through drywall as an air barrier, and assists with the decrease in leakage in the building envelope during blower door testing
  • Suitable for installation in ceilings insulated up to R60
  • Articulating and expandable installation bracket up to 24 in
  • Removable permanently lubricated plug-in motor
  • Motor equipped with thermal cut-off fuse
  • Enclosed brushless ECM smart motor technology rated for continuous operation
  • Attaches directly to housing with torsion springs
  • Includes a motion sensor cap for use as a cover when the motion sensor Plug-n-Play™ module has not been selected
  • ECM motor with SmartFlow™ technology
  • 3.2 W at 50 cfm/5.3 W at 80 cfm/10.5 W at 110 cfm power rating
  • 0.04 A at 50 cfm/0.06 A at 80 cfm/0.11 A at 110 cfm ampere rating
  • < 0.3 to 0.4 sones at 1/4 in SP
  • Round duct
