Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QL breakers are plug-in versions of the Q line used for connection to load centers and lighting panels. All Q line circuit breakers feature quick-make/quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q line breakers are available in 1, 2 and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

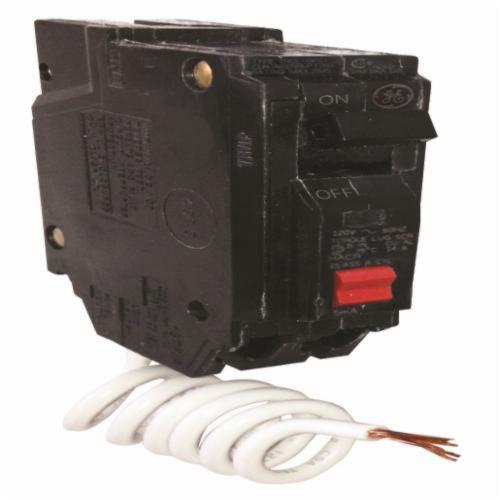

GE Ground Fault Circuit Breaker, Self Test, Series: Q-Line®, 120/240 VAC, 50 A, 10 kA Interrupt, THQL Frame, Non-Interchangeable Trip, 5 mA Trip, 2 Pole, 1 Phase, 1 in Plug-In Connection, 14 to 8 AWG Cu, 12 to 8 AWG Al Wire, 3-9/32 in H x 2 in W x 2-3/8 in D

• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/General_Electric_THQL1115GFT_Brochure.pdf
• Catalog-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/General_Electric_THL103_Catalog.pdf
• Catalog-2 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/General_Electric_THQL1115GFT_Catalog_1.pdf
• Data/Spec Sheet-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/General_Electric_THQL2150GFT_Data_Sheet.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520598777202.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/10985/ID-SPE-THQL2150GFT_product_details.pdf

• The National Electrical Code requires GFCI protection of receptacles located outdoors, in bathrooms, garages and spa areas
• This applies not only to new construction, but also to existing homes
• When an electrical outlet is replaced in a location that requires ground-fault protection, the new outlet must be GFCI protected, according to the NEC
• The GFCI circuit interrupter provides protection against overloads, short circuits and ground faults
• It detects very low levels of electrical current leakage (ground faults) and acts quickly to shut off power, preventing serious shock
• Push button test validates the ground fault detection capability of the breaker
• Class A 5 mA ground fault circuit interrupter
• Quick make, quick break
• Fixed thermal magnetic trip unit
• Fixed long time
• Fixed instantaneous
• Suitable for reverse feed
• Continuous current rated: Standard
• Trip function: LIG
• Special markings: HACR
• Miniature circuit breakers
• 60 deg C/75 deg F conductor rating
• Box type terminals
• Multi-pole breakers incorporate internal common trip
