Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.

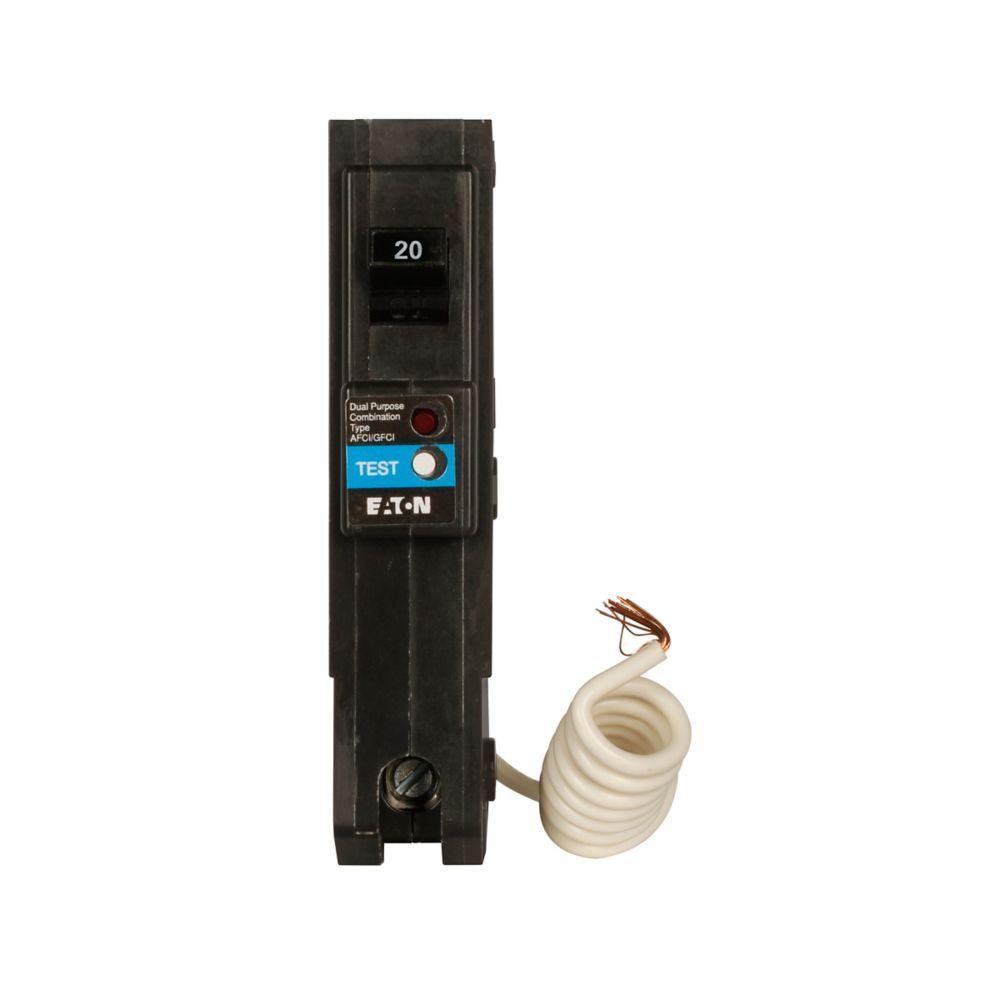

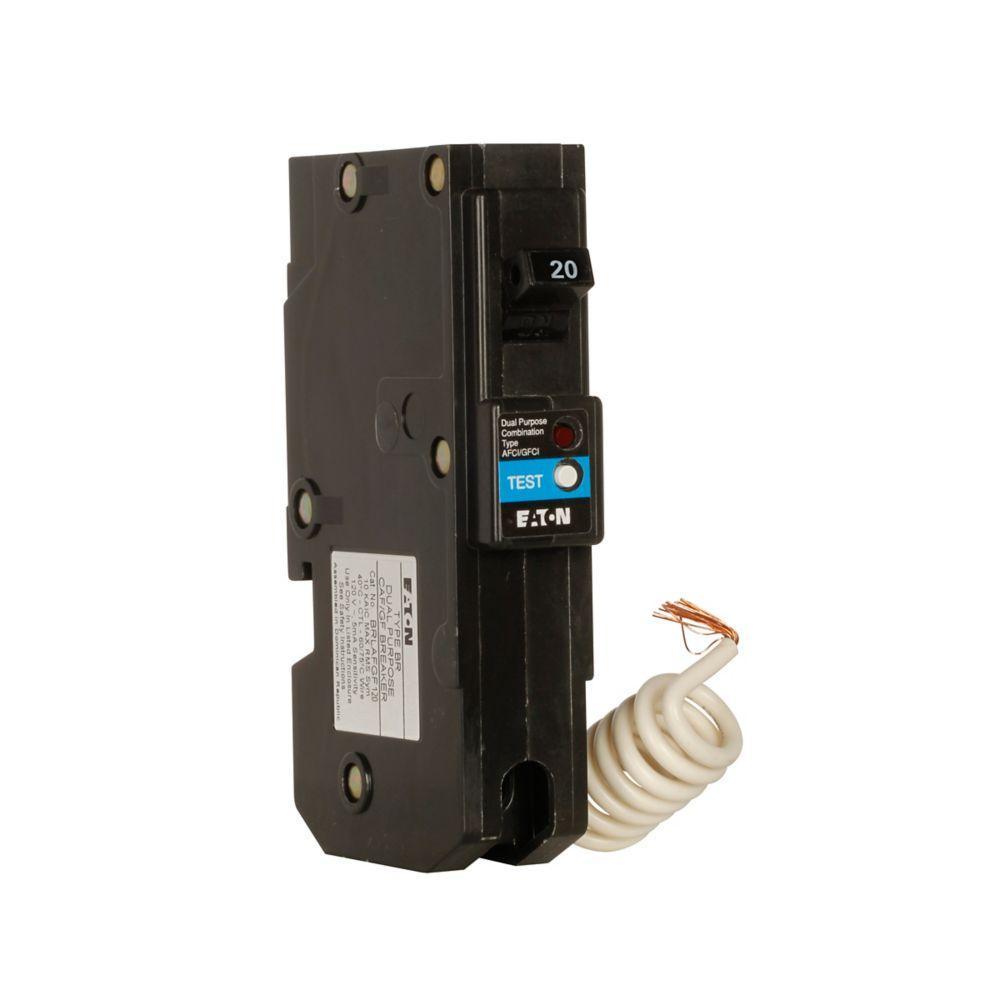

EATON AFCI/GFCI Circuit Breaker, Type BR Combination Dual Purpose, 120/240 VAC, 20 A, 60 Hz Frequency, 10 kA Interrupt, 1 Pole, Plug-On Mounting, -31 to 150 deg F, 1 in W Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_CHQ125_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_CHQ125_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_BRLAFGF120_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_BRLAFGF120_Specification_Sheet.pdf

• The AF/GF circuit interrupter provides quick installation and a single location to easily access and identify tripped circuits
• Provides one device for both AFCI and GFCI protection, allowing for a single point of reset
• Offers complete protection from arc and ground faults for the entire circuit, including home runs
• Enables a lower installed cost versus other code approved alternatives by using only one device to achieve both AFCI and GFCI protection
