NCGS series solar non-metallic cord grips are used in both commercial and residential grid-tied PV solar applications and are designed to accommodate the entry of multiple PV wires coming into a combiner or pass through box. The solar cord grips provide mechanical strain relief as well as a liquidtight seal around the solar panel wires.

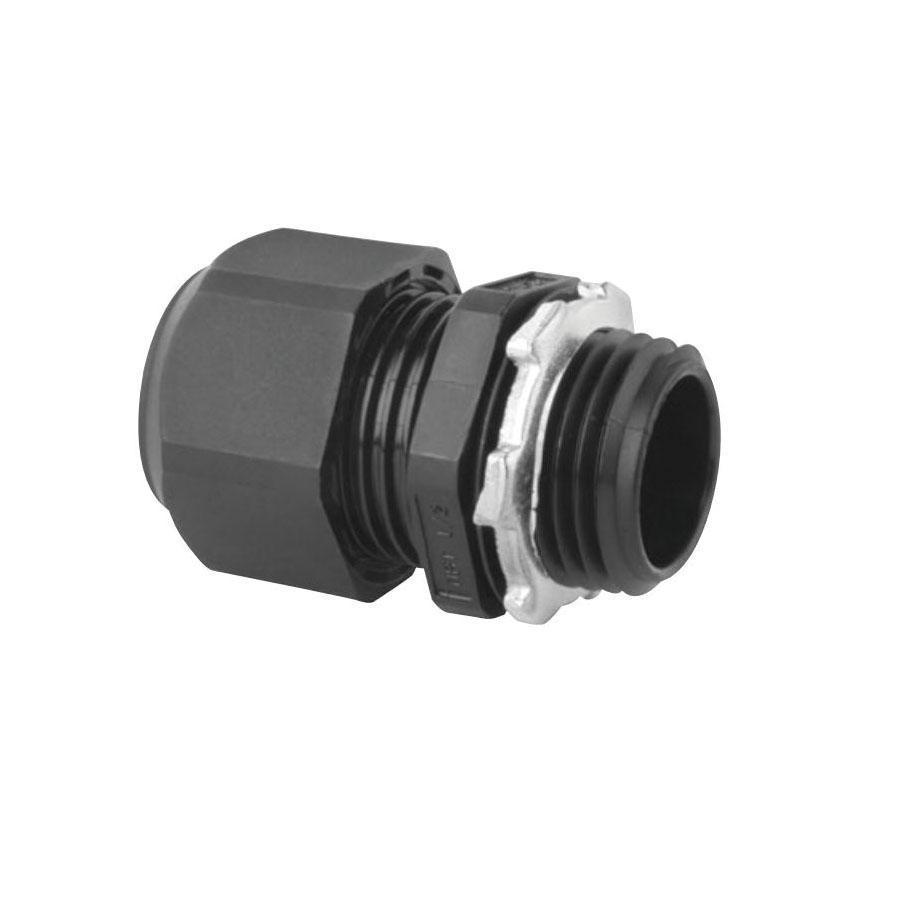

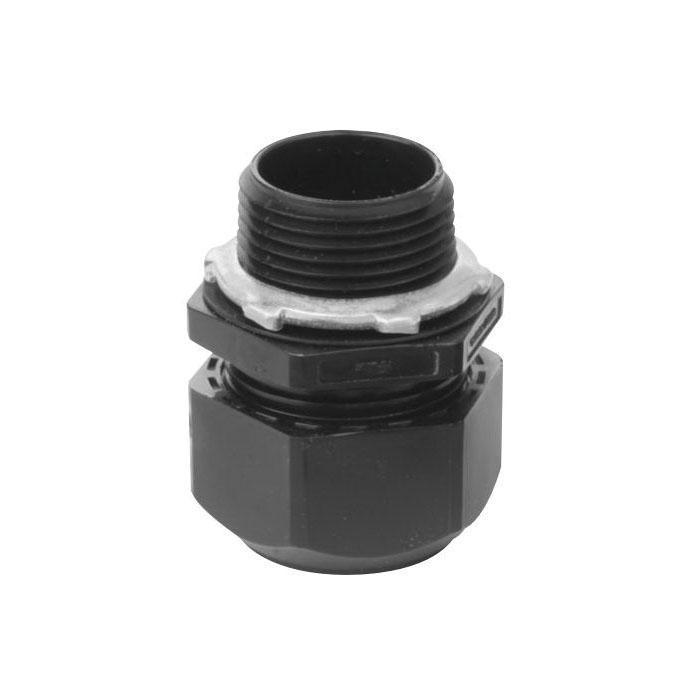

Crouse-Hinds Solar Cord Grip, Non-Metallic, Series: NCGS, 1 in Trade, 9 Holes, 5 mm Hole Cable Diameter, USE-2 Wire, 12 AWG, 10 AWG Wire, -30 to 100 deg C, Threaded Mounting, Nylon 6/6, Black

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NCGS6197_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NCGS6197_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NCGS39_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NCGS39_Specification_Sheet.pdf

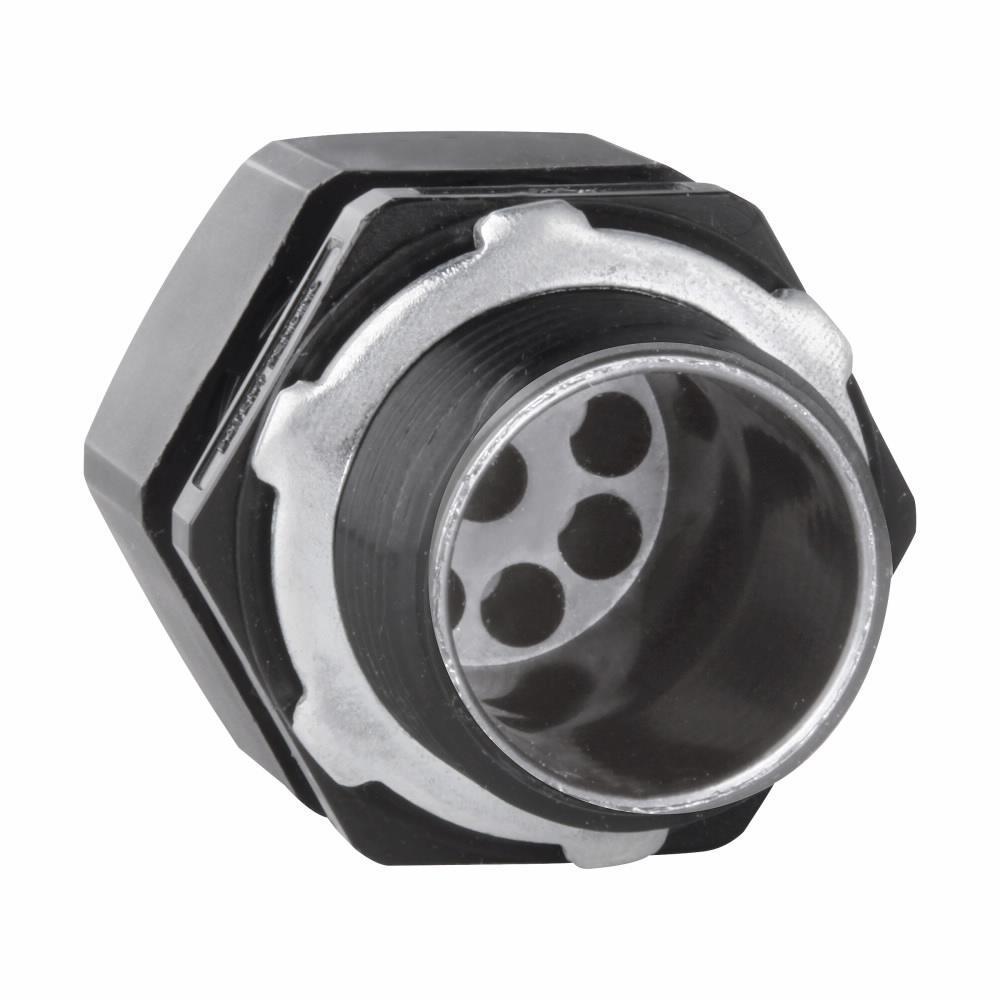

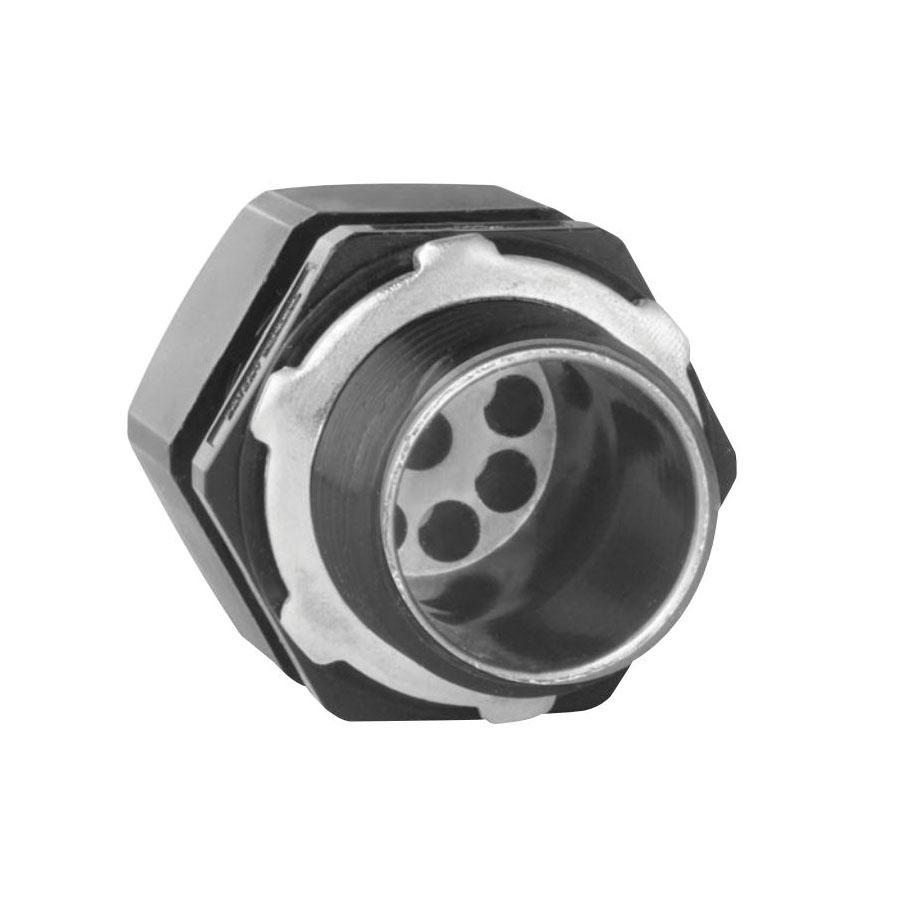

• Multi-hole cord grip to allow for entry of multiple PV wires
• Solar cord grips offer customer flexibility by allowing the termination from 1 to 31 PV wires in a single connector
• Skinned over glands provide a durable, liquid tight seal around the wires
• No disassembly required for installation
• Wide-range of cable acceptance sizes for customer flexibility
• Provide mechanical strain relief as well as a liquid tight seal around the solar panel wires
• TPE/Buna N sealing glands
