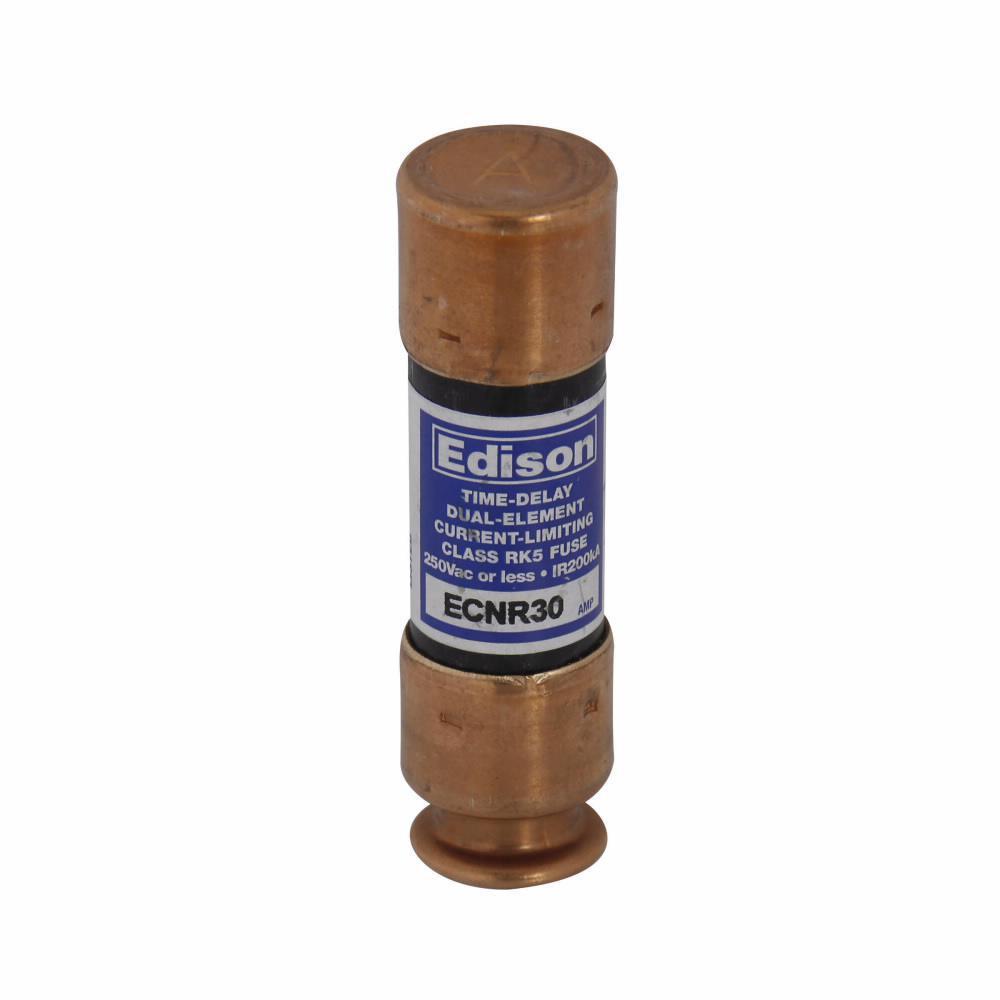

Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.

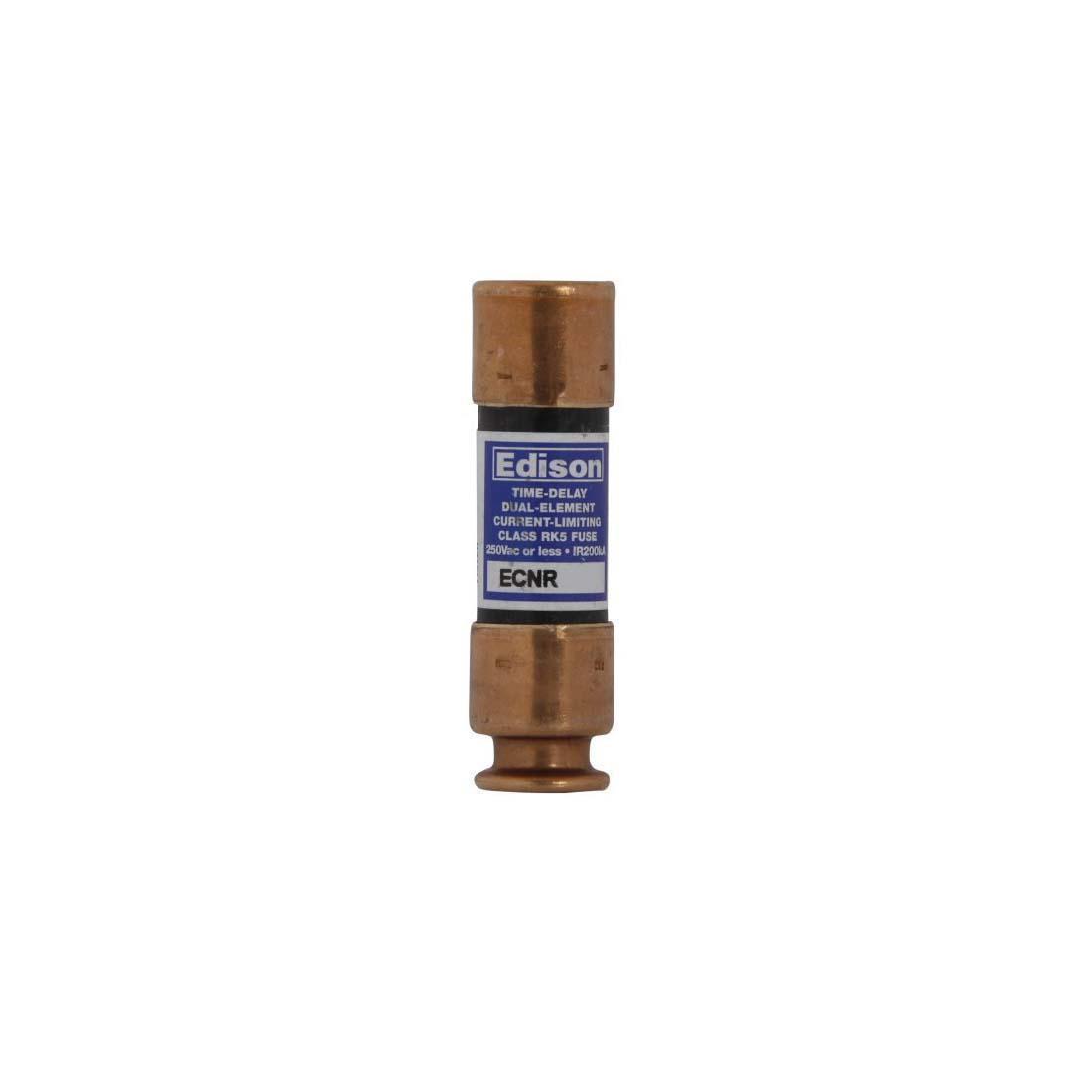

Bussmann Bullet™ Time Delay Fuse, Current Limiting, Series: ECNR, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 20 A, 250 VAC/125 VDC, 200 kA Interrupt, Class: RK5, 10 s at 500% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Thermoplastic, 0.56 in Dia x 2 in L Body Size

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bussmann_ECSR10_User_Manual_CA.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bussmann_ECSR10_User_Manual_CA.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_ECNR20_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_ECNR20_Specification_Sheet.pdf
• VIDEO LINK https://www.youtube.com/watch?v=YMvqUyoETXk

• True dual element construction allows sizing of 125% FLA for motor backup protection
• Superior overload and cycling capabilities
• Current limiting provides component short circuit protection
• For all general purpose applications including lighting, heating and other non-inductive loads
• Tin plated copper brass terminal and zinc plated steel screws
