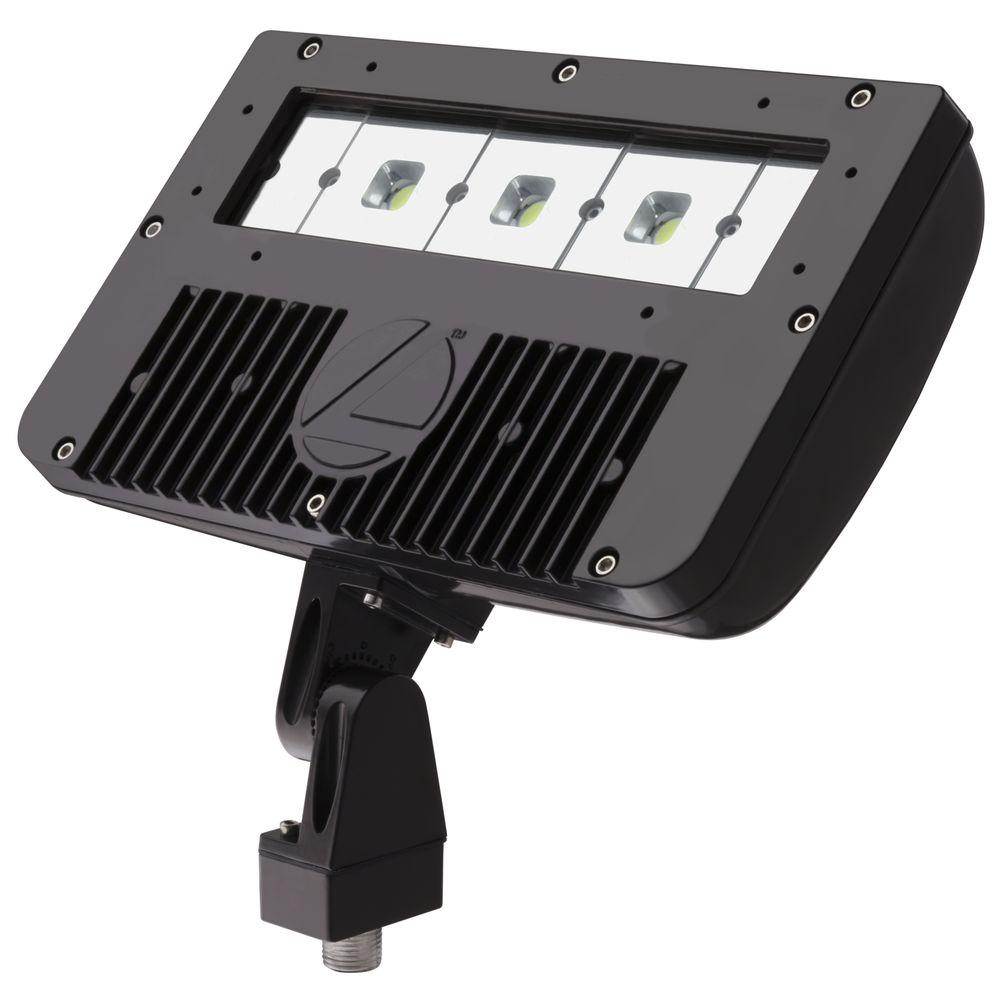

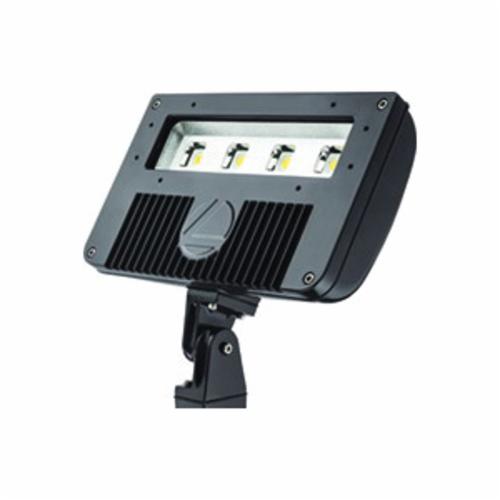

The D-Series Size 2 Flood features precision optics to beautifully illuminate a variety of applications as its sleek, compact styling blends seamlessly with its environment. The D-Series Flood reflector systems and cutting edge chip-on-board LED technology produce excellent uniformity combined with precision beam patterns for minimal spill light and incredible photometric performance. It'™s the ideal long-life replacement for 150 - 250W metal halide floods, with typical energy savings of 70 percent and expected service life of over 100000 hours.

Lithonia Lighting® Floodlight Fixture, Series: DSXF, 120/277 VAC, 530 mA, LED Lamp, 54 W Lamp, 100000 hr Average Life, 5000 K Color Temperature, 67 CRI, Tempered Glass Lens, 5810 Lumens, IP65 Enclosure, Wall Mounting, Aluminum Housing Material, Bronze Housing Finish, 12 in H x 8-7/8 in W x 3-1/8 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_DSXF2LED350KM2_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_DSXF2LED350KM2_Specification_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1518582693191.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1518582693191.pdf

• The sleek design of the D-Series Floodlights reflects the embedded high performance LED technology
• They are ideal for landscape, signage, accent, security and general area lighting in many commercial and residential applications
• The LED driver is mounted in direct contact with the casting to promote low operating temperature and long life
• Housing is completely sealed against moisture and environmental contaminants using a tempered glass lens(IP66). Low EPA (0.6 ft2 ) for optimized wind loading
• A tightly controlled multi-stage process ensures a minimum 3 mils thickness for a finish that can withstand extreme climate changes without cracking or peeling
• A variety of precision-molded vacuum metalized specular reflectors are engineered for superior target illumination, uniformity and spacing
• Three COB engines
• Size 2
• 0.6 ft square EPA
• 0.95 Lumen maintenance factor
• Die-cast aluminum housing has integral heat sink fins to optimize thermal management through conductive and convective cooling
• LED driver is mounted in direct contact with the casting to promote low operating temperature and long life, housing is completely sealed against moisture and environmental contaminants
• Exterior parts are protected by a zinc-infused Super Durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering, tightly controlled multi-stage process ensures a minimum 3 mils thickness for a finish that can withstand extreme climate changes without cracking or peeling
• Variety of precision-molded vacuum metalized specular reflectors are engineered for superior target illumination, uniformity and spacing
• Light engine(s) consist of chip-on-board (COB) LEDs directly coupled to the housing to maximize heat dissipation and promote long life (100,000 hrs, L80)
• Integral adjustable knuckle with 1/2-14NPS threaded pipe, tenon slipfitter, or integral slipfitter, facilitates quick and easy installation to a variety of mounting accessories, this secure connection enables the D-Series Size 1 to withstand upto a 1.5 G vibration load rating per ANSI C136.31
• Single-engine unit uses a Class 2 electronic driver, dual-engine unit uses a Class 1 electronic driver, both drivers have a power factor >90%, THD <20%, and an expected life of 100,000 hours
• Die Cast Aluminum housing
