Arktite CPS receptacles and CPP plugs from Eaton Crouse-Hinds Division are used with portable electrically operated devices such as motor generator sets, compressors, conveyors, portable tools and lighting systems. Used in locations that are hazardous due to the presence of flammable vapors or gases, and in damp or corrosive locations. Applicable for petroleum refineries, chemical and petrochemical plants and other process industry facilities.

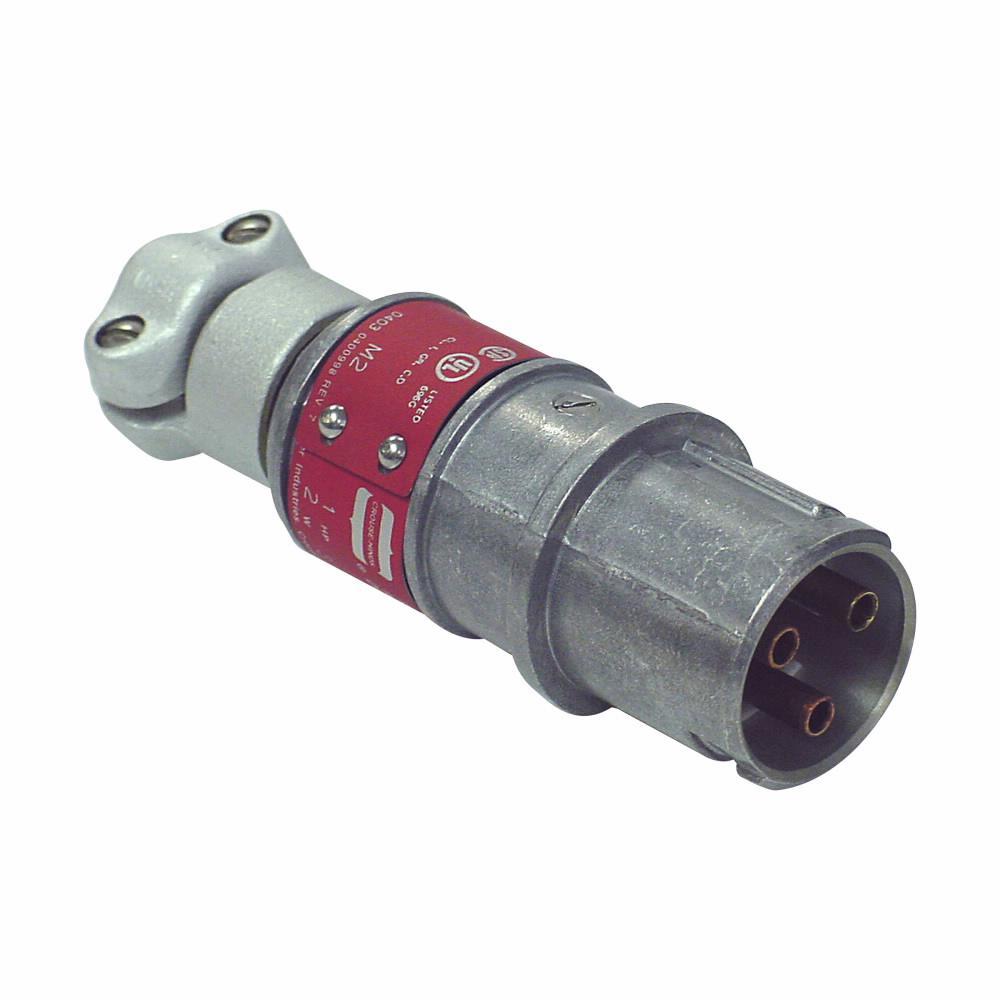

EATON Crouse-Hinds Arktite® Pin and Sleeve Plug, Grounding Style 1 Explosionproof Watertight Reverse Interior, Series: CPS Series, 600 VAC/250 VDC, 100 A, 1 hp, 50 to 400 Hz Frequency, 1 Pole, 2 Wires, NEMA 4 NEMA Rating, Industrial Grade, Solder Terminal, Cast Aluminum, 4-1/8 in Dia x 10-1/8 in L Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6f1427d1490065f92468161ec9b9293bcb48daf7ade738d8578ec07e44a2c59c.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6f1427d1490065f92468161ec9b9293bcb48daf7ade738d8578ec07e44a2c59c.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8d1e8a7e623a7353cafa3941eaca8db03c55ce33cbc626f51989194fbc98800c.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8d1e8a7e623a7353cafa3941eaca8db03c55ce33cbc626f51989194fbc98800c.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7008287bdd9ca7b120b82cfb4abc19d9f914fac151099020494f3eea1fec1b6d.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7008287bdd9ca7b120b82cfb4abc19d9f914fac151099020494f3eea1fec1b6d.pdf

• Grounding style 1 through extra pole and shell
• The delayed action feature permits the plug to be used as an emergency push pull switch
• 30 A plugs are provided with pressure terminals for ease of field wiring, 20 A plugs have solder terminals
• CPP plugs are provided with an extra grounding pole
• CPP plugs are used with portable electrically operated devices such as motor generator sets, compressors, conveyors, portable tools and lighting systems
• In locations which are hazardous due to the presence of flammable vapors or gases, in damp or corrosive locations
• In petroleum refineries, chemical and petrochemical plants and other process industry facilities
• Reverse interior
• 0.875 to 1.7 in Dia cord
• 4 to 1 AWG building, 4 to 2 AWG extra flex wire
