Eaton's Bussmann series panel mount terminal blocks are available in double row terminal blocks and multi-pole terminal blocks. Double row terminal blocks are made up to 36-poles and available in a variety of voltage and ampacity ratings. Multi-pole panel mount terminal blocks provide a compact, high density circuit connection solution without the necessity of a mounting rail. These products are designed to be nested together to form one string of circuit connections.

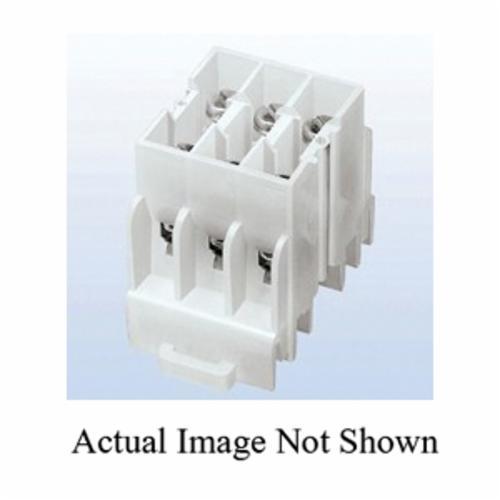

Edison Terminal Block, Series: NDN, 600 VAC, 30 A, 3 Pole, 22 to 10 AWG Wire, Feed-Through Terminal, 7.62 mm Spacing, 18 in-lb, DIN Rail/C Rail Mount, Screw, 105 deg C, Thermoplastic, White, 33.3 mm H x 23.9 mm W x 42.4 mm D

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_01bb33a733fed921676391a007d7b0e2da1cb7fe547653f08d8dd1ca85425c93.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_01bb33a733fed921676391a007d7b0e2da1cb7fe547653f08d8dd1ca85425c93.pdf
• VIDEO LINK https://www.youtube.com/watch?v=YMvqUyoETXk

• Easily snaps onto the mounting rail for a quick, simple, low-cost solution
• Made of thermoplastic insulation, steel screw with zinc plated
• 38-circuit per foot
