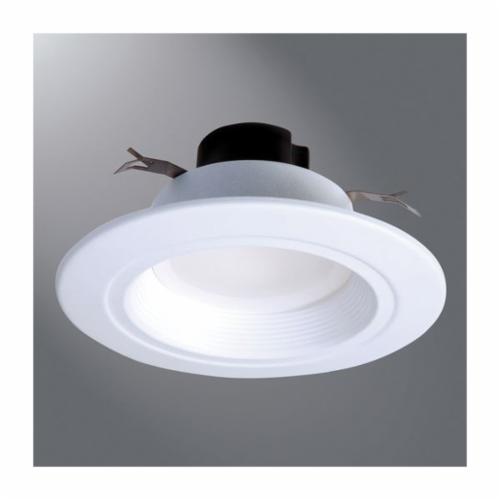

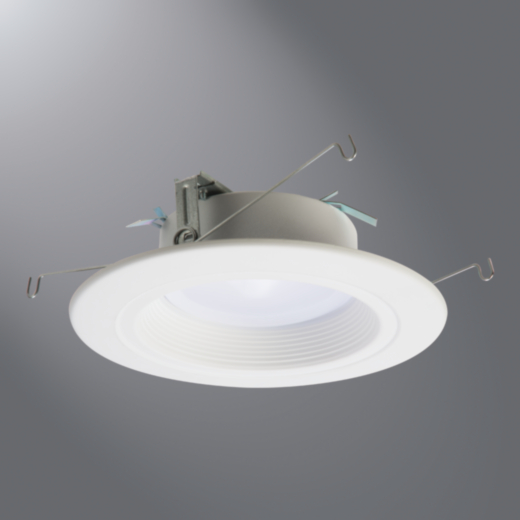

The Halo® RL56 series is a complete LED baffle-trim module for 5 and 6 in aperture recessed downlights. RL56 is designed for use in new construction, remodel and retrofit installation in Halo, All-Pro® and other compatible 5 and 6 in housings. The integral LED driver offers 120 V dimming capability. The RL56 lens provides uniform illumination and wet location listing. Precision designed to make any housing Air-Tite™ for added HVAC savings and code compliance. Compliant with NFPA® 70, NEC section 410.16 (A) (3) and 410.16 (C)(5).

Halo Retrofit LED Module, Adjustable Gimbal Dimmable, Series: 600 RL56, 120 VAC, 8.1 W Fixture, 0.15 A, LED Lamp, 50/65 W Lamp, E26 Medium Base Lamp Base, 5 in, 6 in Ceiling Opening, Baffle Recessed Trim, 50000 hr Average Life, White Light, 3000 K Color, 90 CRI, LED Driver Ballast, Diffusing/Regressed Lens, 579 Lumens, Flush Mount, Aluminum Housing, 2.938 in L x 7.5 in W x 8.25 in H

• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Halo_RL560WH6827_Brochure.pdf
• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515128037889.pdf
• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1537662478013.pdf
• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11143/ID-BRO-v1-halo-retrofit-takeone-br518028en-bro.pdf
• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Halo_RL560WH6827_Installation Instructions.pdf
• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515125553718.pdf
• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11143/ID-INS-v1-halo-rl560-ib518052en-ins.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Halo_RL560WH6827_Specification Sheet.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515127733909.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1537663517941.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11143/ID-SPE-v1-halo-rl56-900series-td518005en-sss.pdf
• Specification Sheet-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Halo_RL560WH6827_Specification Sheet_1.pdf
• Warranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511873502812.pdf
• Warranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/http://www.ideadigitalcontent.com/files/11143/StockGuide_Warranty_Page.pdf

• Use with Halo 5 and 6 in LED housings new construction and remodel
• Dual mount torsion spring and Push-N-Twist clip models
• Damp location and wet location shower listed
• Impact resistant polycarbonate, high lumen transmission
• Halo matte white trim finish
• A tight chromaticity specification ensures LED color uniformity, sustainable color rendering index (CRI) and correlated color temperature (CCT) over the useful life of the LED
• Torsion springs pre-installed
• Dimmable to 5% with select dimmers
