MC-Quik® cables were developed in 2012 and introduced a metal clad cable (MC cable) without an overall polypropylene wrap. This new construction of cable is referred to as MCI-A cables because of the style of fittings used during installation. AFC has combined a feature of armored cables (AC cable) with the armor in conjunction with an aluminum bond wire that can be used as a grounding means. In addition, AFC cable added a labor saving feature of extruding the polypropylene wrap over each individual conductor. Removing the overall tape eliminates the time to remove it to access the conductors and eliminates the waste of the scrap. Without the overall tape, contractors do not need to spend time unraveling the tape to expose the conductors and then trim off the excess. When installation is complete, there is less waste to be cleaned up on the job site. AFC cable offers MC-Quik® in both steel and aluminum versions with various configurations and conductor color options. To learn more about our MC-Quik®, watch the video below. AFC cable also offers a healthcare (HCF) version of MC-Quik® called MC-Stat. MC-Stat utilizes a redundant green ground to comply with healthcare requirements.

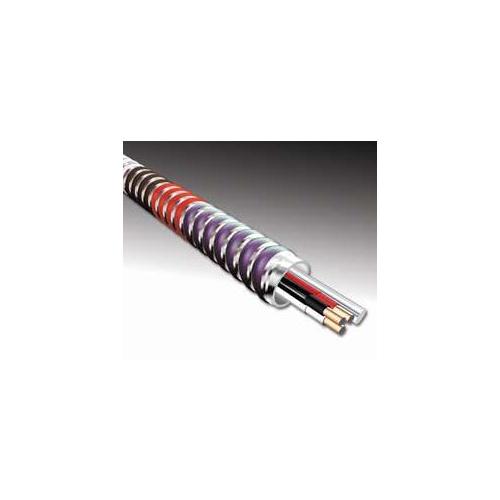

AFC Cable Systems MC-Quik® Armored Cable, Type MCI-A, Reel Packaging, 600 VAC, 2 Conductors, Solid Copper Conductor, 12 AWG Conductor, 0.463 in OD, 1000 ft Length, THHN Insulation, Interlocked Galvanized Steel Strip Jacket, Purple Jacket, 90 deg C

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e9ef8112a5ac4bdd5828e91a42438c4068d66a88f0ada8a4ddea10acfbf73384.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e9ef8112a5ac4bdd5828e91a42438c4068d66a88f0ada8a4ddea10acfbf73384.pdf

• Purple armor for easy cable identification
• Armor plus full sized aluminum ground wire is the equipment grounding means (MC-Quik® steel)
• Conductor insulation THHN protective covering over each insulated copper conductor
• MCI-A listed connectors required
