Atkore's MC Plus is the modern-day Type MC homerun cable that incorporates a neutral per-phase design ideal for multi-wire branch circuit applications and addresses harmonics distortions in power distribution systems. MC Plus's neutral per-phase design eliminates shared neutrals and the risk of overloading. This design also helps quickly identify faulty circuits, reducing outages. The MC Plus cable offers improved safety and efficiency in electrical systems for a range of applications.

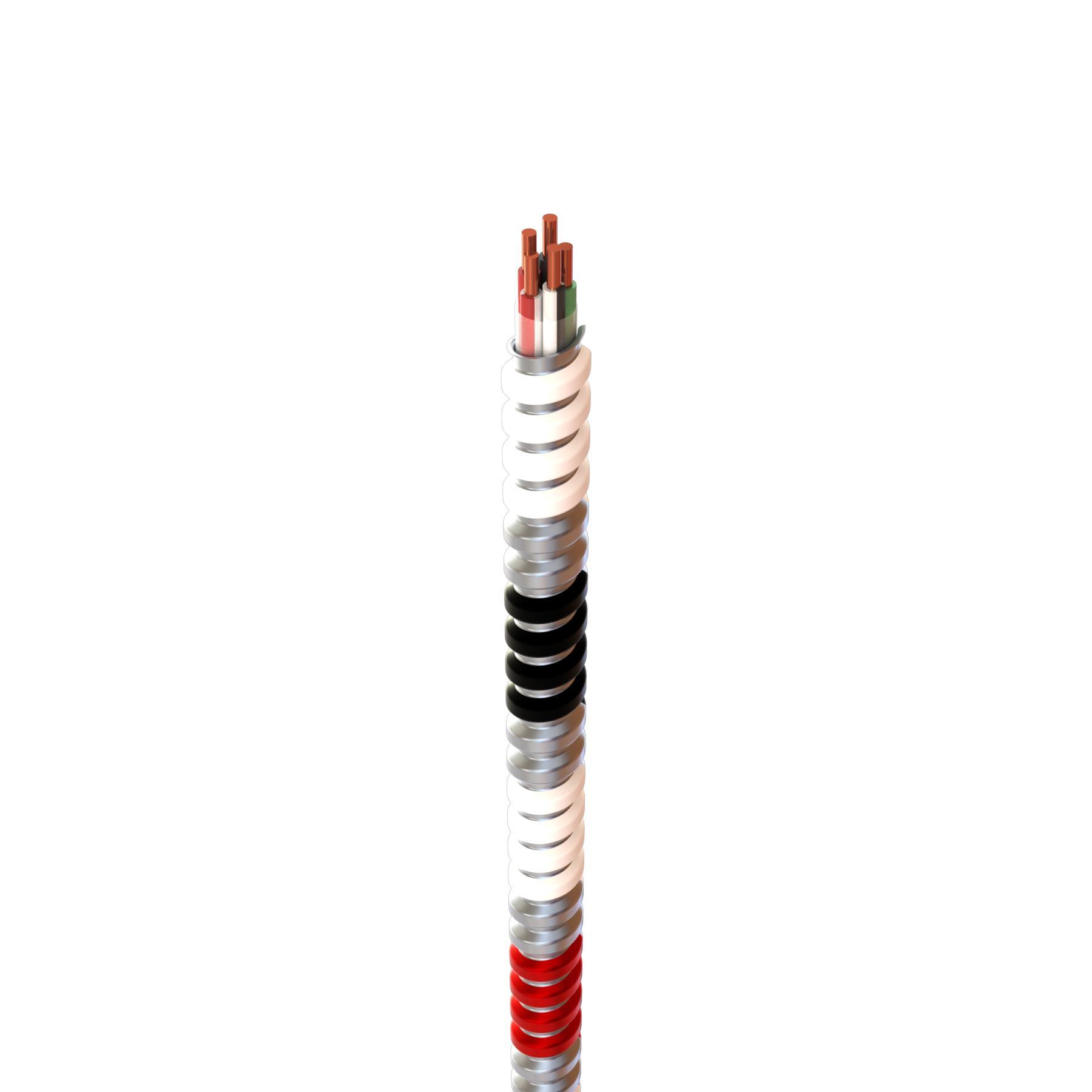

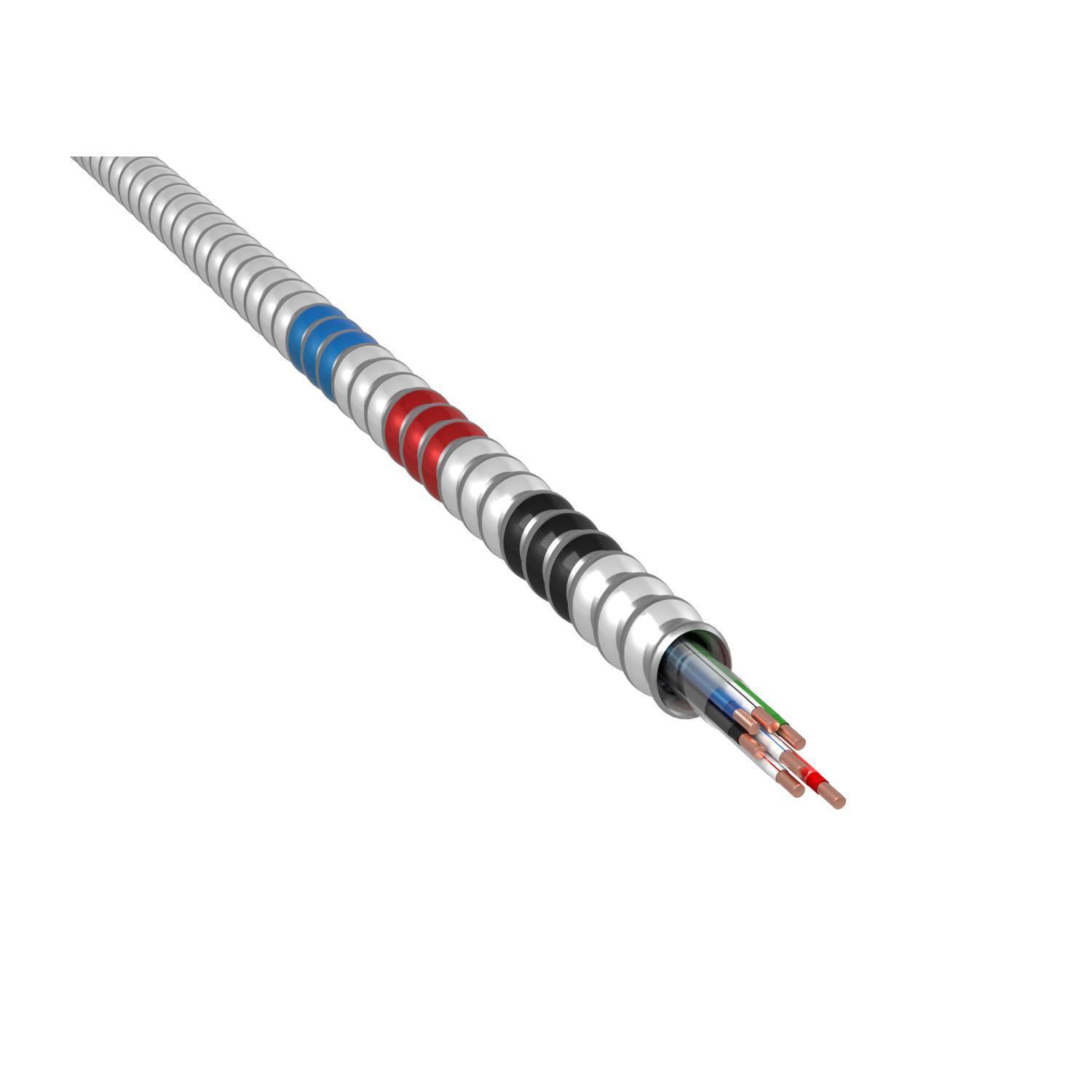

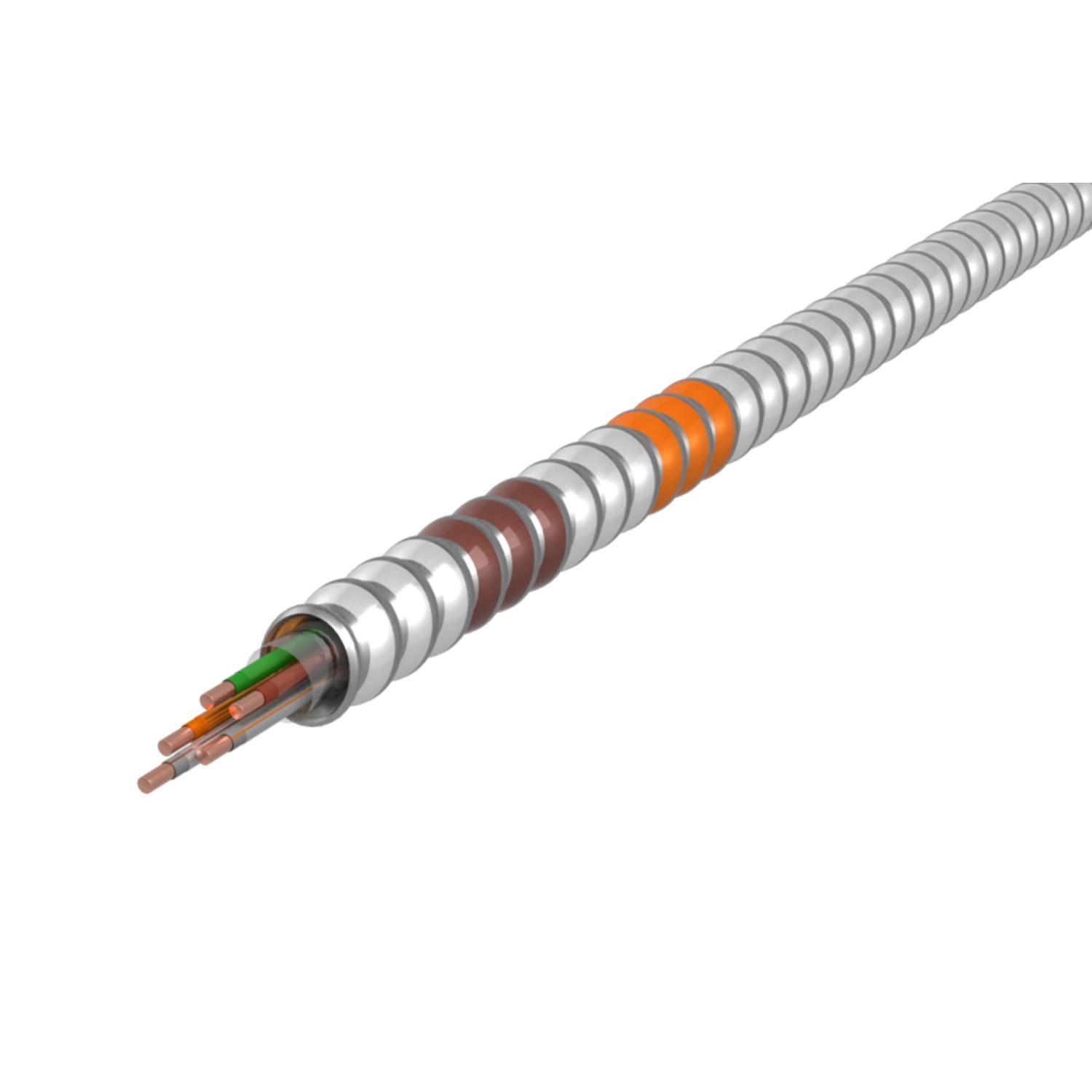

AFC Cable Systems MC-Plus® Lite Neutral Per Phase Cable, Type MC Traditional, Reel Packaging, 600 VAC, 4 Conductors, Solid Copper Conductor, 10 AWG Conductor, 0.667 in OD, 1000 ft Length, THHN/THWN Insulation, Interlocked Galvanized Steel Strip Jacket, 90 deg C

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_abd0993df02fbf7aeacb642cb6edc283eb1cc69e5ddc94f280ae1f63e8376da4.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_abd0993df02fbf7aeacb642cb6edc283eb1cc69e5ddc94f280ae1f63e8376da4.pdf

• A neutral per phase type MC cable designed for multi-wire branch circuit applications
• Decreases the time it takes to identify a faulty circuit because only the affected 1-phase breaker will trip thus, reducing the length of unnecessary outages
• Technically equivalent and economically superior to traditional raceway and wire installations
• Decreases the time it takes to identify a faulty circuit because only the affected single-phase breaker will trip thus, allowing the rest of the electrical systems to continue to operate and reducing the length of unnecessary outages
• ColorSpec ID/Color-Trak ID System
• White steel armor with phase and neutral ID painted directly onto the armor for added identification without the added step of opening up the panel to determine circuit type
