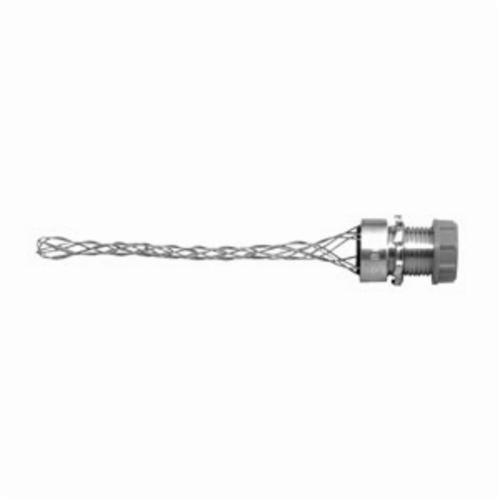

Remke 7303-004R

Remke 7303-004R Non-Insulated Wide Range Strain Relief Grip, 0.52 to 0.73 in Cable, Steel

  • MPN: 7303-004R

  • IESPN: 36403

  • UPC: 785411102191

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
Remke 7303-004R

Tuff seal strain relief grips are used to connect cord or cable to electrical enclosures and equipment, power boxes, portable power tools, panel boards, and machine tools. For indoor use only in dry locations, these grips help control arc-of-bend and prevent cable pull-out and damage resulting from flexing. Strain is distributed over the length of these grips instead of at a single point. These tuff seal strain relief grips are made with a single-weave, galvanized steel mesh and feature aluminum fittings and a gasket that provides an environmental seal against dust, filings and other foreign material.

Remke Wide Range Strain Relief Grip, Non-Insulated, 0.52 to 0.73 in Cable, 5-3/4 in Mesh Length, Steel

Type      Non-Insulated
Cable Size      0.52 to 0.73 in
Mesh Length      5-3/4 in
Material      Steel
  • pdfBrochure
  • pdfSpecification Sheet
  • The mesh exerts a uniformly distributed compressive force over a large area of the cable for maximum gripping without pinching the cable
  • An endless weave conforms to the cable jacket, eliminating wedging or crushing of the cable at that point
  • Mesh material has high-tensile strength and corrosion resistance (more than adequate for most indoor applications)
  • PVC gasket seals out large dust particles, lint or metal filings and other contaminants from the electrical connections
  • Adjusts to wide range of cable or cord diameters, so fewer grips are needed to fit many cable sizes
  • Readily installed, adjusted, repositioned, removed or reused, makes relocating plant wiring and machines easy
  • Automatically adjust their gripping to hold the required load
  • No special installer skills or special tools required
  • 3/4 in NPT thread
