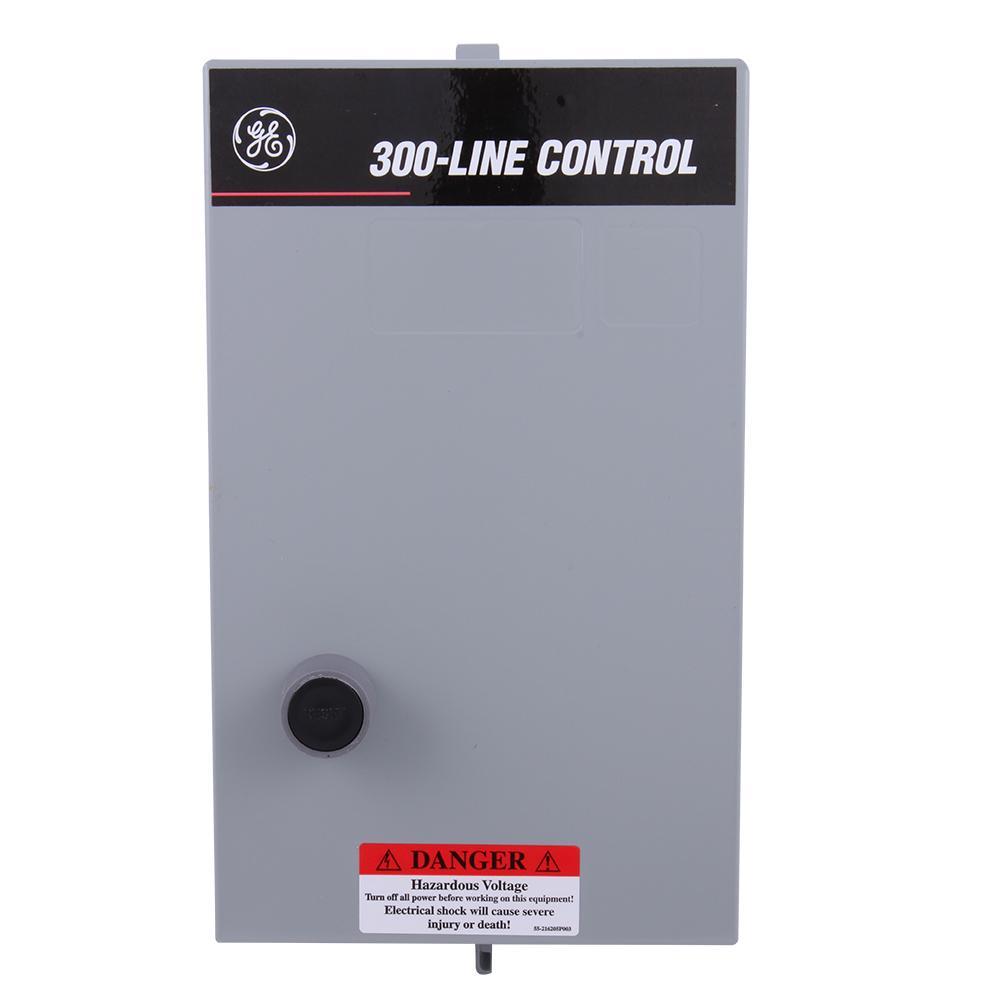

GE NEMA Magnetic Starter, Full Voltage Non-Combination Non-Reversing, Series: 300 Line, 600 VAC, 27 A, 50/60 Hz Frequency, 10 hp Motor, 460 to 480 VAC Coil, 3 Pole, Manual Reset, Saddle Clamp Connection, 3-Leg Block/Thermal Overload Relay, NEMA 1 Enclosure, -20 to 70 deg C Operating, 12.88 in L x 6.5 in W x 6.5 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_CR306C104_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_CR306C104_Specification_Sheet.pdf

• Has an encapsulated coil and a 3 leg overload relay to protect against overloads in all phases
• Toolless contactor disassembly allows quick access for inspection and maintenance
• Current carrying contact tips are weld resistant silver cadmium oxide
• Visual trip indicator with manual reset to avoid surprise restarts
• Manual weld check provides a convenient test against welding of overload relay contacts
• 2:1 adjustable full load amps with tactile feedback dial
• Built-in thermal memory to prevent hot motor restarts
• Protection against complete phase current loss
• +/- 2% accuracy, +/- 2% repeatability, Self-powered at 50% of minimum current range
• Saddle clamp terminal accommodate ring, spade and stripped wire leads and carry permanent stamped in identification
• Fast track now starters
• Enclosure starters
