Factory terminated devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL Listed connectors are keyed to ensure proper wiring installation into each receptacle. The connector simply snaps into the back of the device - no fussing with wires, stripping or tightening screws. PlugTail® devices are finger safe with no exposed terminals, so taping is not required. Now device installation is a snap! Designed to withstand abuse and constant use in demanding applications, these durable switches virtually eliminate contact bounce and arcing. Exterior housing is made entirely of high performing chemical and impact resistant thermoplastics to withstand the abuse of industrial environments and harsh chemicals. Oversize silver alloy contacts help ensure long life and better heat dissipation.

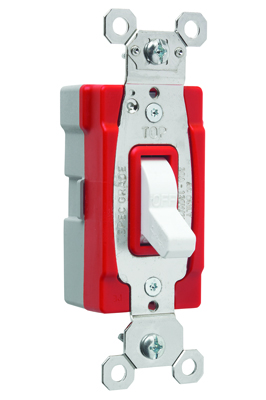

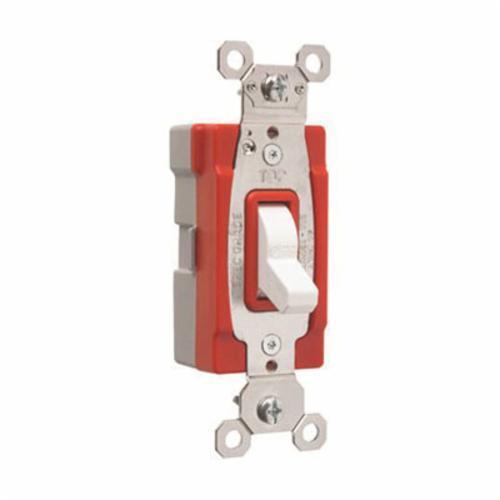

Pass & Seymour® PlugTail® Toggle Switch, 3-Way Extra Heavy Duty Plug Tail, 120/277 VAC, 20 A, 3 W Power, DPDT Contact Configuration, Toggle Actuator, Wall Mounting, Blade Terminal, 50000 Cycles Operating Cycles, Thermoplastic, White, Environmental Conditions: -40 to 60 deg C Temperature, 3.3 in H x 1.32 in W x 1.073 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PT5362CDGN_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PT5362CDGN_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PT8300LA_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PT8300LA_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PT20AC1WSL_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Pass_Seymour_PT20AC1WSL_Specification_Sheet.pdf
• VIDEO LINK https://www.youtube.com/watch?v=HgTpJikbX40

• Glass-reinforced, chemical-resistant thermoplastic back body for durability, strength, and resistance to harsh cleaners
• One-piece nickel-plated mounting strap for superior corrosion resistance
• Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections
• Auto-ground clip assures positive ground
• Shallow design for easier installation
• Heavy-duty bumpers for quiet, smooth operation
• For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
