Edison MDA-1/2-R

Share Print

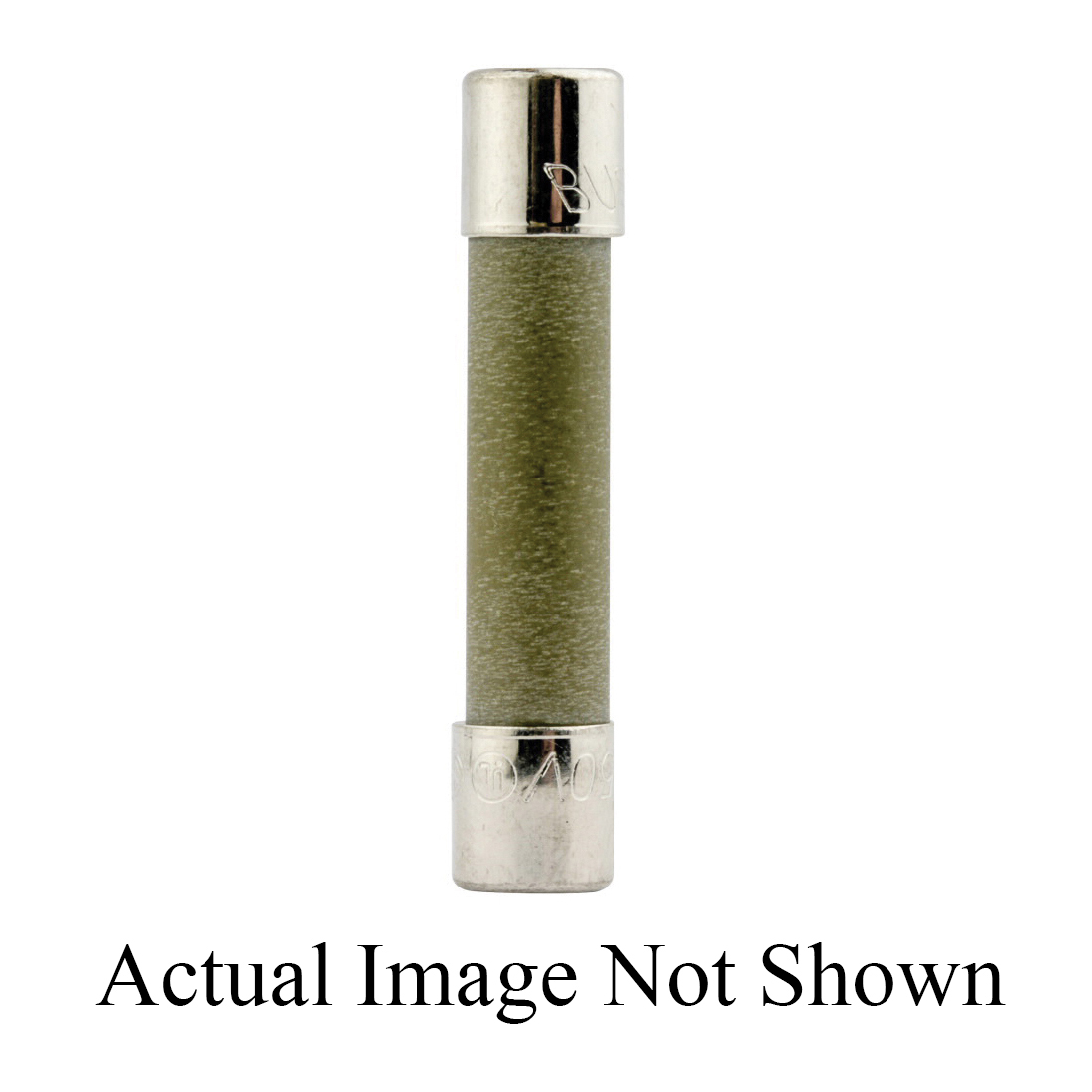

Edison MDA-1/2-R Small Dimension Time Delay Fuse

  • MPN: MDA-1/2-R

  • IESPN: 168146

  • UPC: 051712645140

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH

    • Availability: loading

    • Branch Availability
Edison MDA-1/2-R

Edison, MDA-1/2-R, Time Delay Fuse, Small Dimension, Series: MDA, Non-Indicating, Non-Rejection, 0.5 A, 250 VAC, 35 A/10 kA Interrupt, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Ceramic, 1/4 in Dia x 1-1/4 in L Body

Type      Small Dimension
Series      MDA
Indicating/Non-Indicating      Non-Indicating
Rejection/Non-Rejection      Non-Rejection
Amperage Rating      0.5 A
Voltage Rating      250 VAC
Interrupt Rating      35 A/10 kA
Response Time      60 min, 120 s
Terminal Type      Ferrule
Mounting Type      Holder
Body Type      Cylindrical
Element      Single
Material      Ceramic
Body Size      1/4 in Dia x 1-1/4 in L
  • Ceramic body for higher amp/volt ratings
  • Inventory consolidation by replacing MDL fuses allows for reduced SKU investment and minimizing potential for misapplying fuse
  • 35 A at 250 VAC, 10 kA at 125 VAC interrupt rating
  • 60 min at 135%, 120 sec at 200% response time
