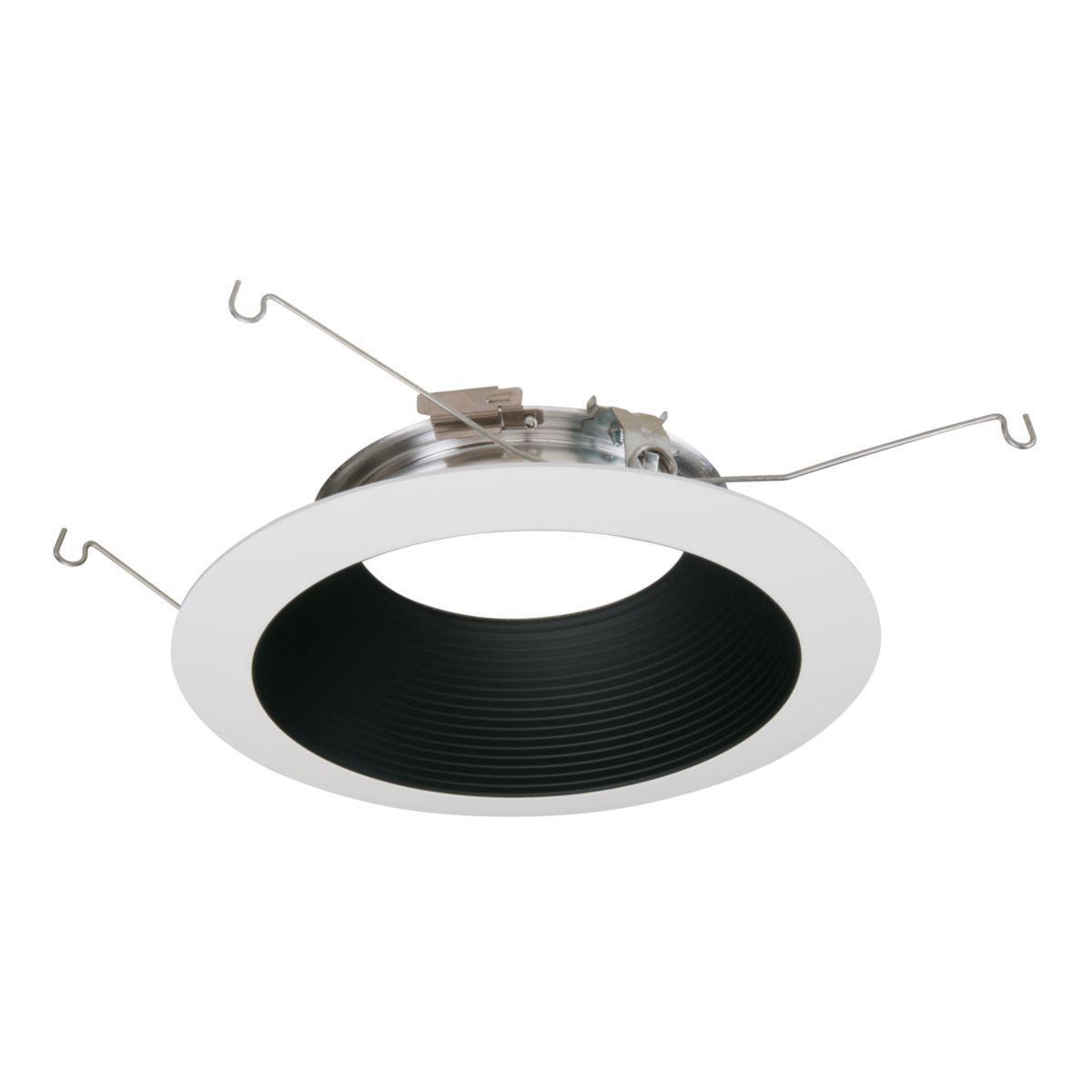

693 series LED trims are 6 in aperture micro-step baffles offered in white (matte white), black, satin nickel and tuscan Bronze. The white and black baffles feature matte white finish flange, the satin nickel baffle a satin nickel flange and the tuscan bronze baffle a tuscan bronze flange. The precision spun aluminum micro-step baffle delivers the functionality of a baffle in reduced aperture brightness, as well as excellent optical performance. The 693 baffles may be used in most standard height 6 in aperture recessed housings, Halo, ALL-PRO™ and more (refer to ML56 LED light module specifications for details).

Halo, 693WB, Trim Light, Micro-Step, Series: 693, 6 in ID, 7.3 in OD, ML56 LED Lamp, New Construction/Remodel/Retrofit, 2-3/4 in Height, 9-3/8 in Width, 1.6 in Depth, For Use With: ML56 Series LED Light Module, Ceiling Mounting, Metal, White

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_36b8f3ab1a405bd11b25ed1ebdb5aafb800128a6fe9180660ee259ce530d3e77.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_36b8f3ab1a405bd11b25ed1ebdb5aafb800128a6fe9180660ee259ce530d3e77.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_325cfa1c0878cfbf9744b21e0d1cb18599f1524d82f764fd1f9438583d551cc8.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_325cfa1c0878cfbf9744b21e0d1cb18599f1524d82f764fd1f9438583d551cc8.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5406c0f66a3cfff9d68250c585ab0aea7cbdf72c085dfb11c706f7f17d368d74.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5406c0f66a3cfff9d68250c585ab0aea7cbdf72c085dfb11c706f7f17d368d74.pdf

• For use in standard housings
• Baffles with self-flange
• Torsion springs pull trim and light module tight to ceiling
• ML56 downlight trims and modules make housings Air-Tite™ (ASTM E283)
• Wet location shower listed with ML56 LED light modules
