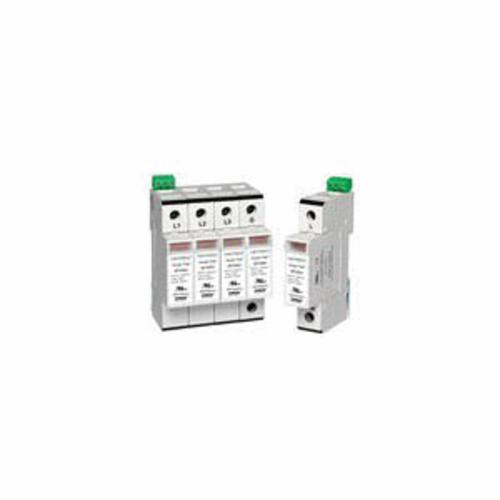

Surge-Trap® pluggable surge protective device (SPD) is a no fuse, fail safe surge suppressor featuring MERSEN patented TPMOV® technology inside. The pluggable SPD is UL 1449 3rd edition approved. It is DIN-rail mountable featuring a fail safe self-protected design, visual indicator and a small footprint. A remote indicator option provides status to critical control circuits. The Surge-Trap® pluggable SPD has a high short circuit current rating and a thermally protected MOV, which eliminates the need for additional overcurrent protection devices.

Mersen Surge-Trap® Surge Protective Device, Pluggable, 120 VAC Electrical Rating, 50/60 Hz Frequency, 1 Pole, 2 Wires, 200 kA Short Circuit, 20 kA Nominal Discharge, Modes of Protection: L-N/L-G, Microswitch Indicator, 1 ph, Environmental Conditions: -40 to 85 deg C Operating Temperature, -40 to 85 deg C Storage Temperature, IP20 Enclosure, DIN Rail Mounting, Box Terminal, 0.71 in W x 2.82 in D x 3.89 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/MERSEN_Surge_Trap_STP1201PGM_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/MERSEN_Surge_Trap_STP1201PGM_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Mersen_STP600PVM_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Mersen_STP600PVM_Specification_Sheet.pdf

• Easy installation or retrofit
• Fail safe, self-protected design
• Visual indicator
• IP20 finger safe design improves electrical safety
• Small footprint
• No additional overcurrent protection devices required
• Easy to replace modules
• 35 mm DIN rail mounting
