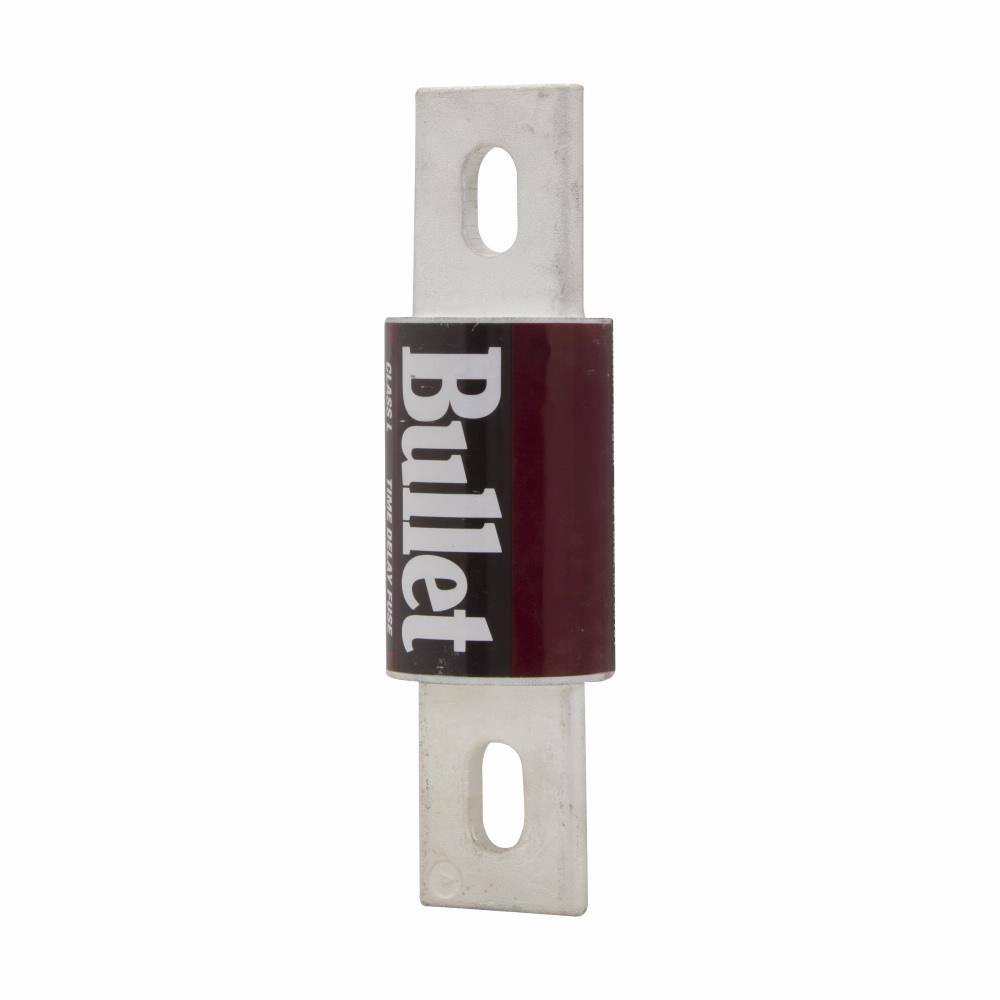

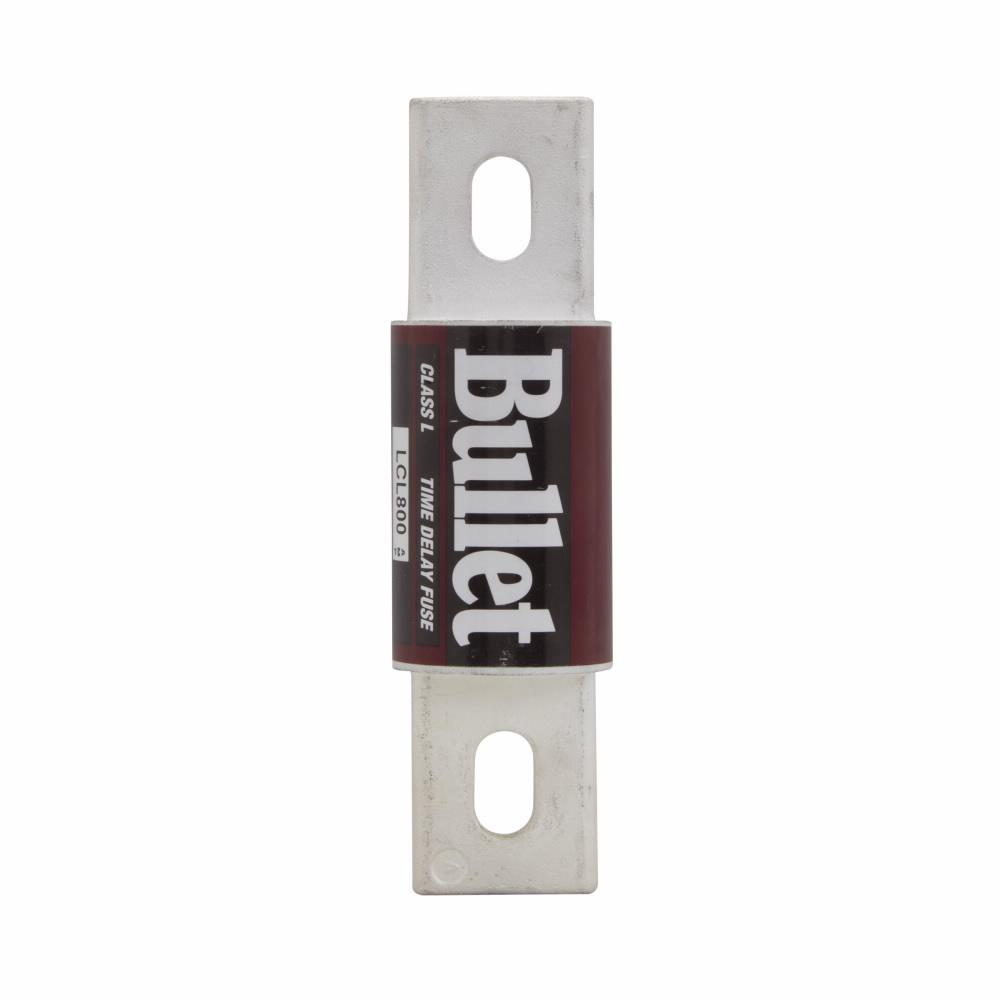

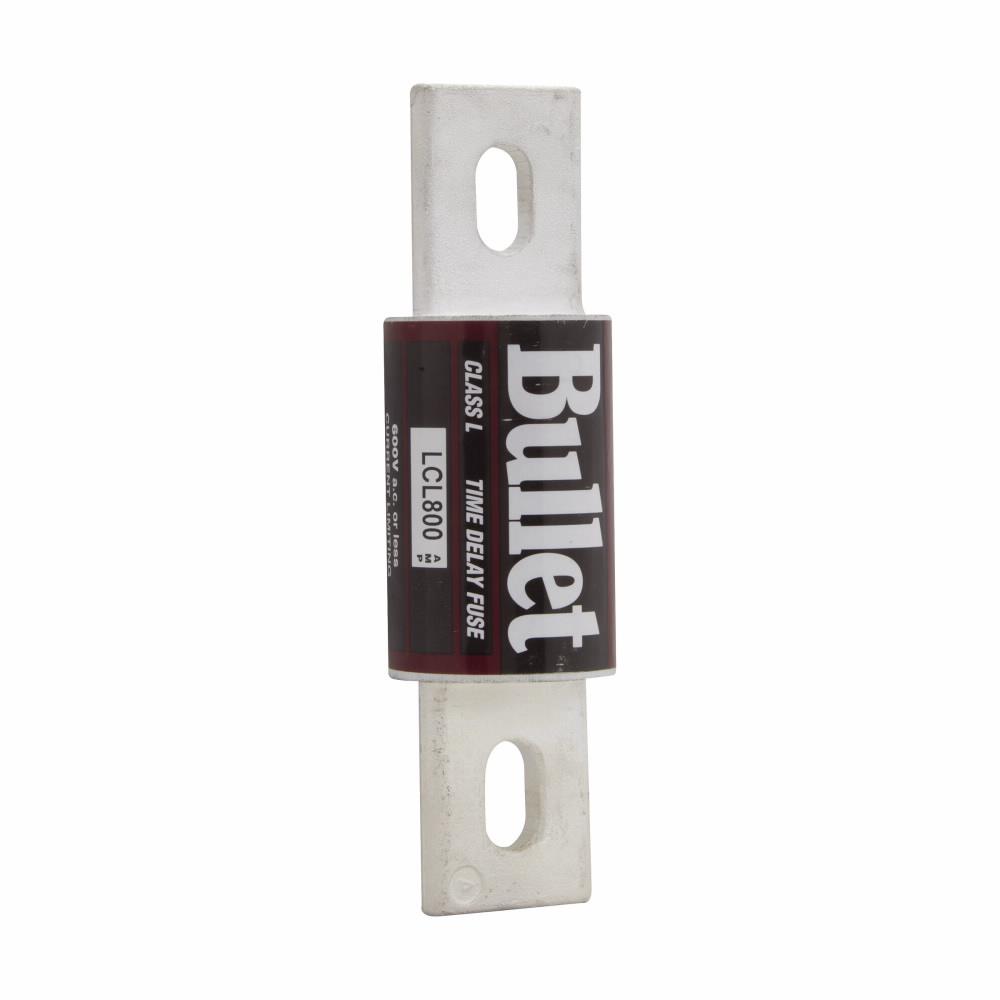

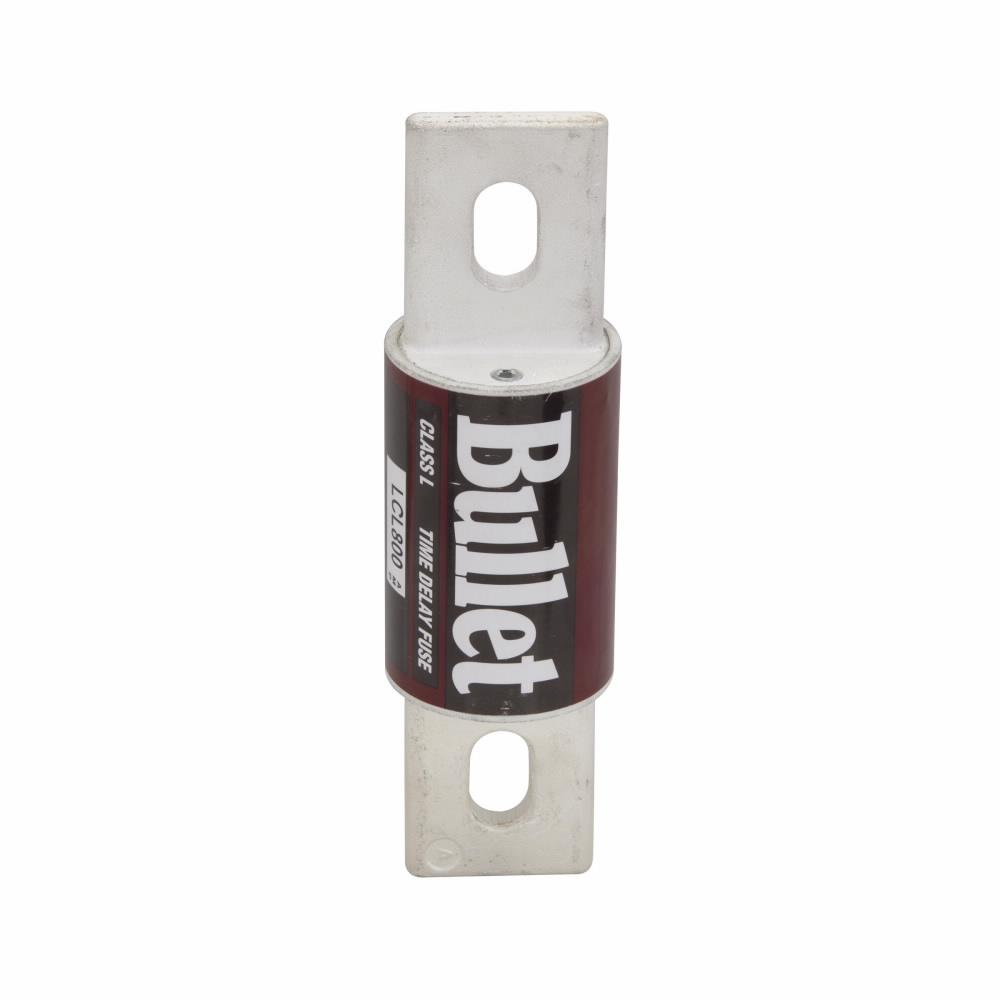

Edison LCL800
Share
PrintEdison LCL800 Bullet Current Limiting Time Delay Fuse, 800 A, 600 VAC, 200 kA Interrupt, L Class
-
MPN: LCL800
-
IESPN: 207168
-
UPC: 782634605089
-
Min Order Qty: 1
-
Quantity Interval: 1
- Sold as: EACH
-
-
Availability:
-
-
Edison LCL800
Edison Class L fuses, Catalog Numbers LCL time-delay or LCU fast acting are recommended for high capacity main, feeder or branch circuits in power distribution systems and for special applications such as system upgrading or installation ahead of network protectors.
Edison Time Delay Fuse, Bullet Current Limiting, Series: LCL, 800 A, 600 VAC, 200 kA Interrupt, Class: L, 5 s Response, Knife Blade Terminal, Bolted-On Mounting, Melamine, 2.5 in Dia x 8.63 in L Body
| Type | Bullet Current Limiting |
| Series | LCL |
| Amperage Rating | 800 A |
| Voltage Rating | 600 VAC |
| Interrupt Rating | 200 kA |
| Class | L |
| Response Time | 5 s |
| Terminal Type | Knife Blade |
| Mounting Type | Bolted-On |
| Material | Melamine |
| Body Size | 2.5 in Dia x 8.63 in L |
-
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Edison_LCL800_Specification_Sheet.pdf
-
VIDEO LINK
https://www.youtube.com/watch?v=YMvqUyoETXk
- LCL general purpose copper link fuses
- Current limiting provides component short circuit protection
- Copper links result in a minimum 5 sec time delay at 500% amperage rating
- Selective coordination (blackout prevention) when sized per published coordination ratios
- No fuse reducers required
