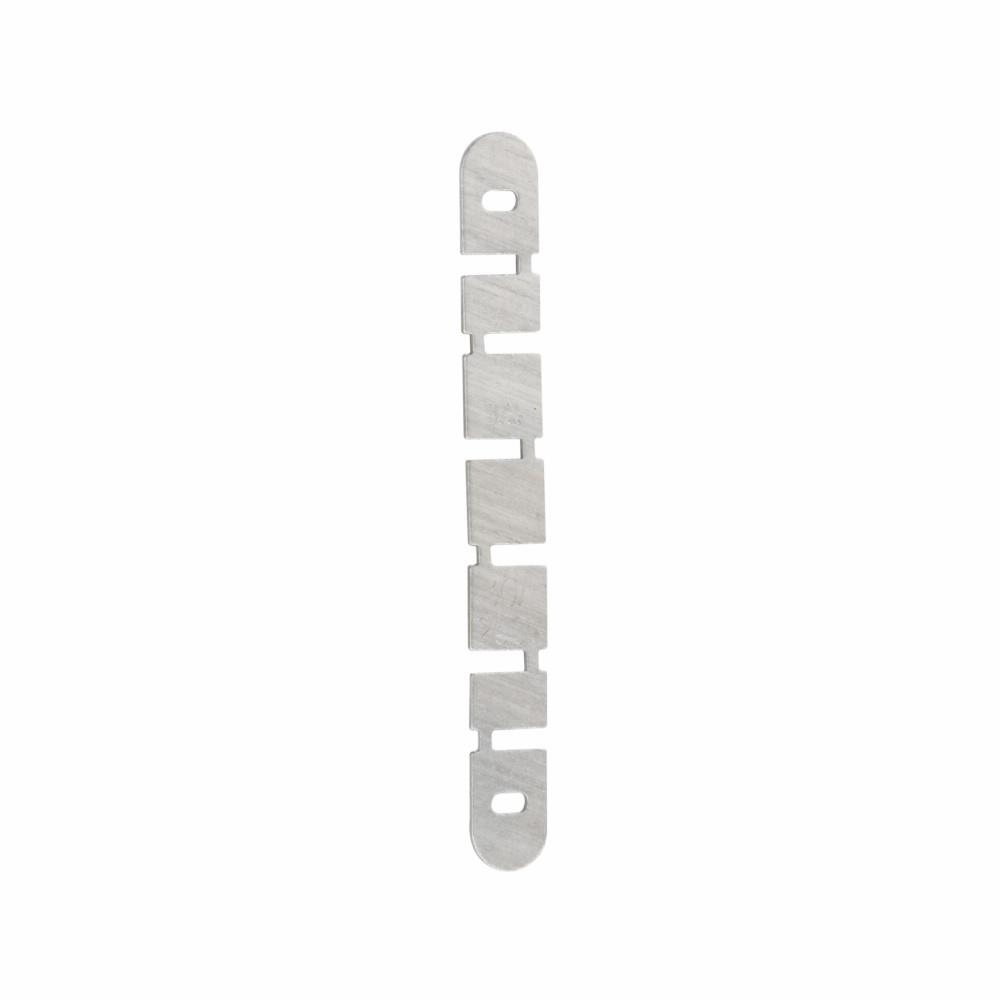

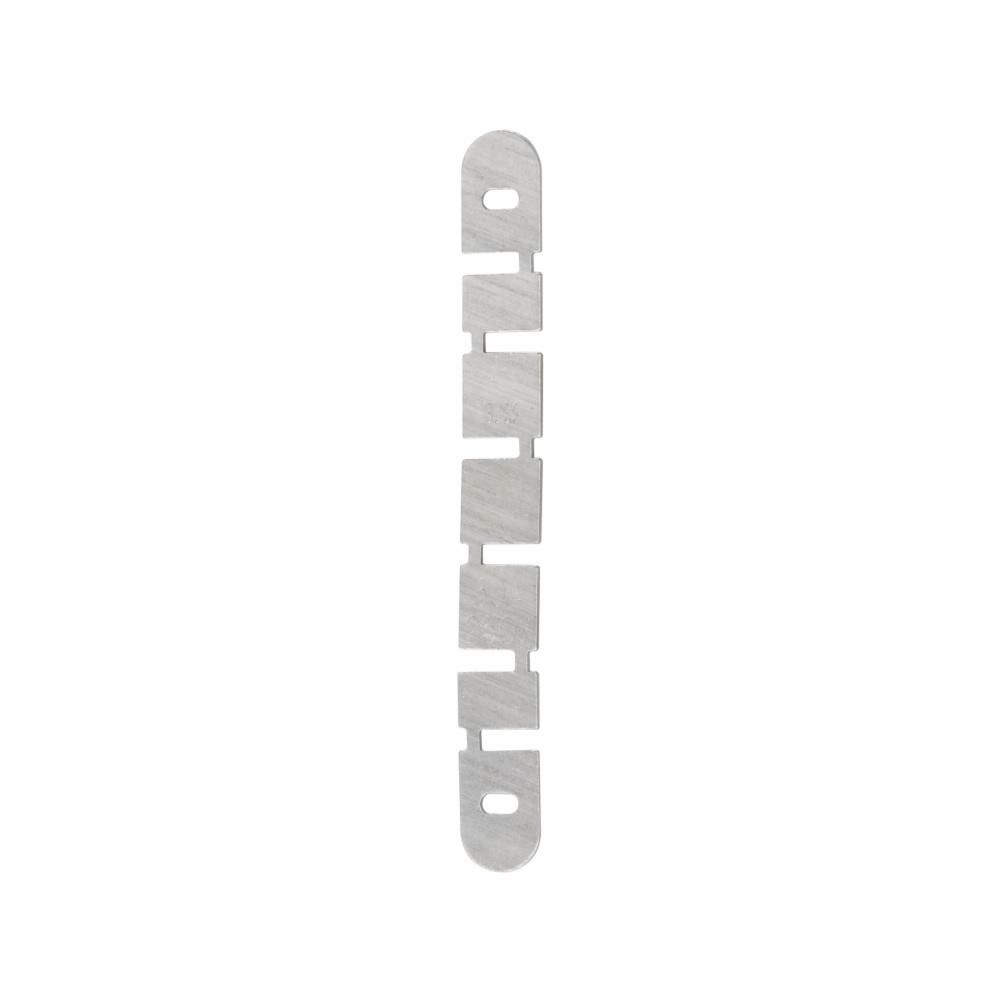

Edison Fuse Link, Non-Current Limiting Renewable, Series: LKN, 250 VAC, 20 A, Rated Breaking Capacity: 10000 A, Timing Response: Super Lag/Time Lag, Stud Mount, For Use With: REN-20 Class H 0.81 in Dia x 3 in L Fuse

• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Edison_LKN_20_Specification_Sheet.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520572594296.pdf
• Specification Sheet-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Edison_LKN_80_Specification_Sheet_1.pdf
• Specification Sheet-2 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Edison_LKN_80_Specification_Sheet_2.pdf

• Designed for easy replacement
• No multiple links to complicate replacement
• Buss super-lag renewable fuses with longer time lag than other class H fuses of this type can better sustain overloads without needlessly opening
• Super-lag fuses are used in circuits of industrial and commercial structures where maximum short circuit currents are of a low level (below 10 kA) and frequent outages dictate the economy of the "renewable" type fuse
• These fuses are generally sized at the amperage rating of non-inductive circuits and 300% for motor circuits
