Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.

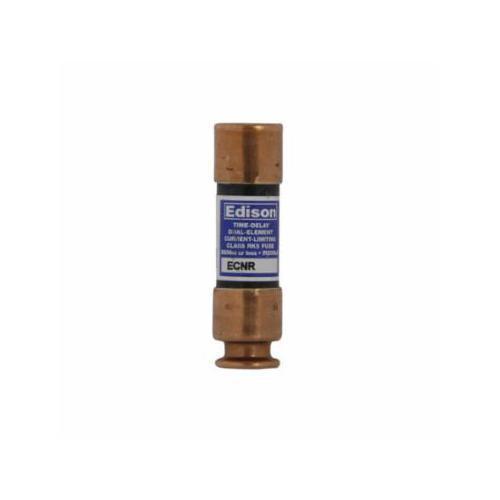

Edison Bullet™ Time Delay Fuse, Current Limiting, Series: ECNR, Non-Indicating, Rejection, 5 A, 250 VAC/125 VDC, 200 kA Interrupt, Class: RK5, 8 s Response, Ferrule Terminal, Cylindrical Body Type, Dual Element, Fiberglass, 0.56 in Dia x 2 in L Body Size

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Edison_ECNR5_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Edison_ECNR5_Specification_Sheet.pdf
• VIDEO LINK https://www.youtube.com/watch?v=YMvqUyoETXk

• Provides motor overload, ground fault and short circuit protection
• Helps protect motors against burnout from overloads
• Helps protect motors against burnout from single phasing on 3-phase systems
• Simplifies and improves blackout prevention (selective coordination ratios)
• Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
• The overload element provides protection against low level over current of overloads and will hold an overload which is five times greater than the amperage rating of the fuse for a minimum of 10 sec
