EATON Bussmann series CH DIN rail fuse holders are for UL class CC, supplemental fuses and IEC 10 x 38 fuses. They are available with and without indication in 1, 2, 3-pole IP20 finger safe versions. A variety of accessories extends their application flexibility and they may be ganged together to meet specific application requirements.

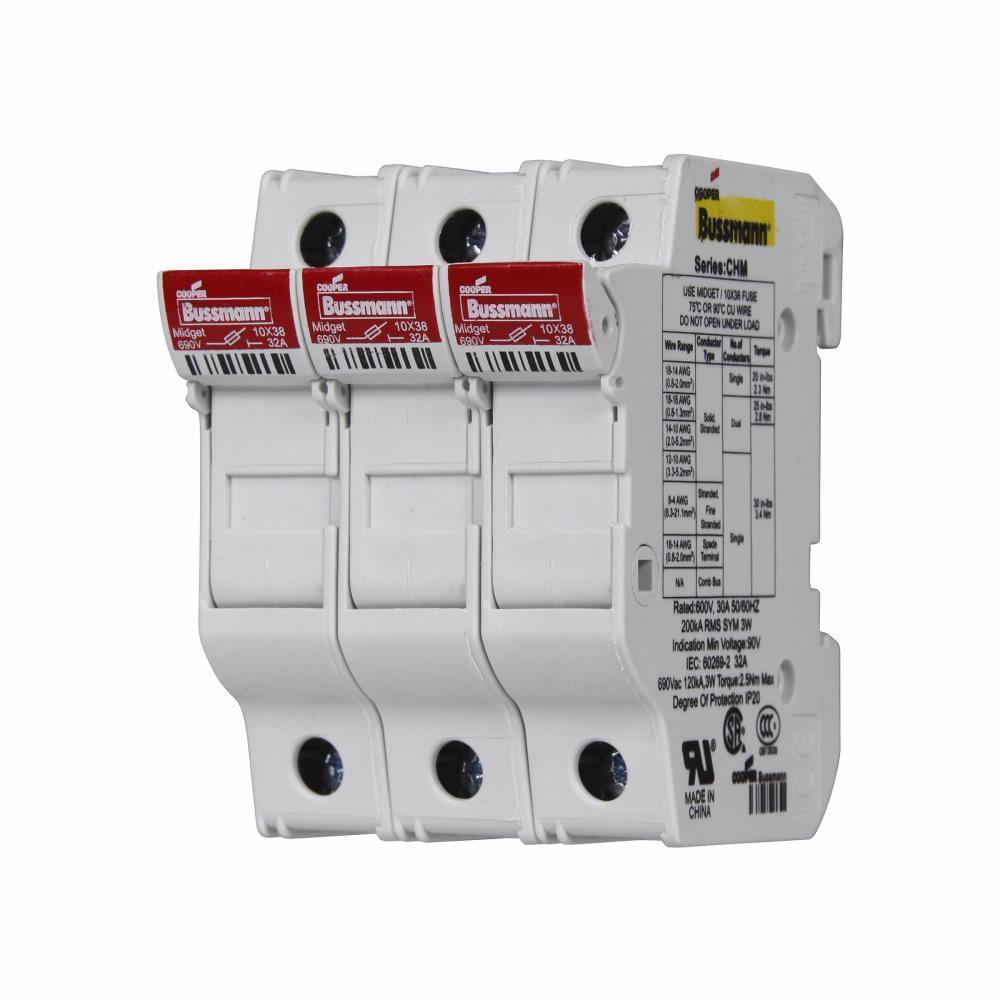

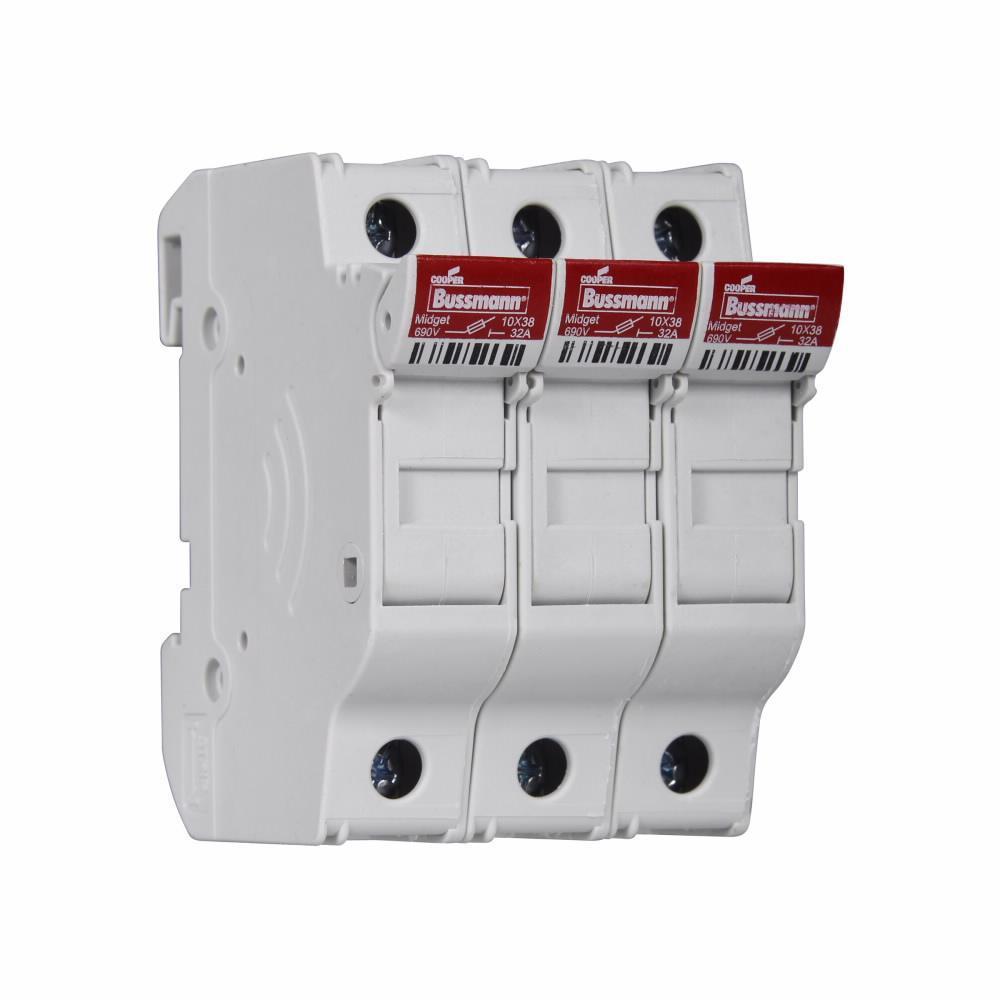

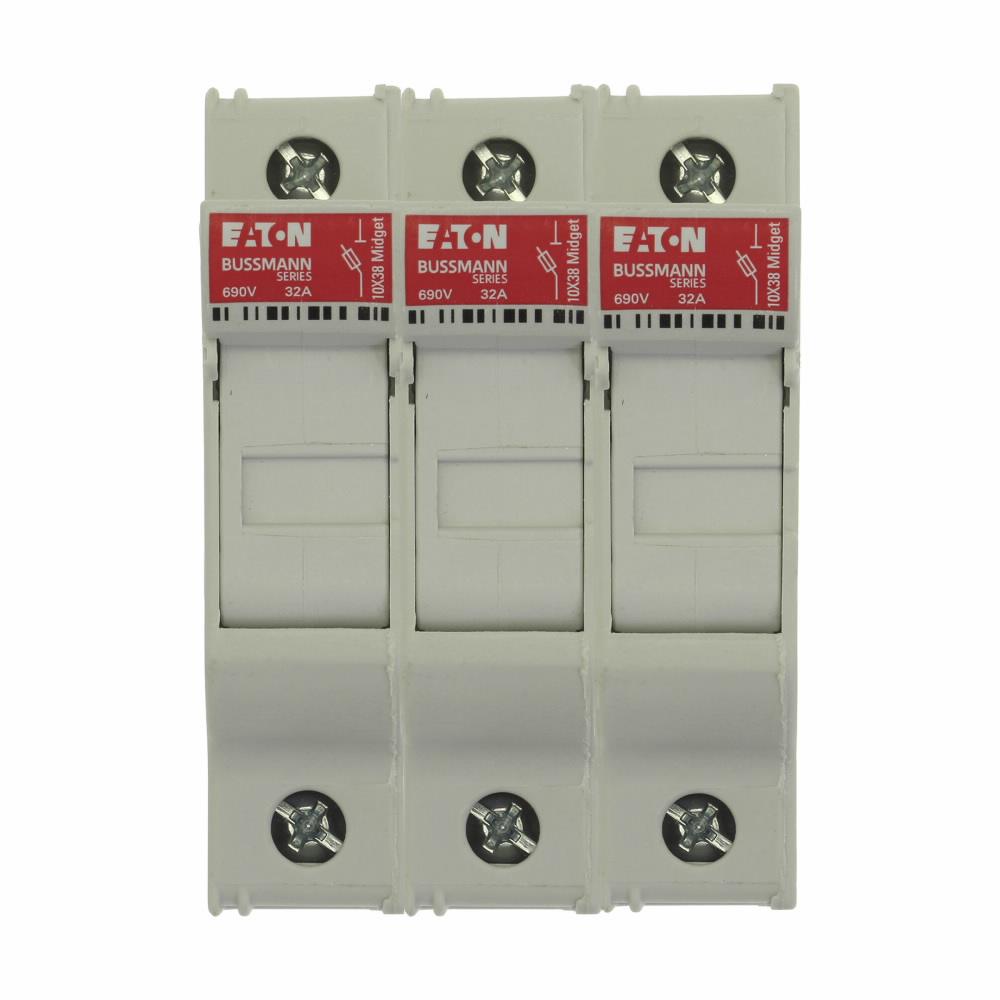

Edison Fuse Holder, Finger Safe Modular, Series: CH Series, 600 VAC/690 VDC, 30/32 A, 3 Pole, 1/3 ph, Class: CC, Fuse Holder Code: D, Spade Lug Connection, 18 to 4 AWG Wire, DIN Rail Mounting, 38 mm Fuse Length, 10 mm Diameter Fuse, -20 to 120 deg C, For Use With: FNQ/KLM/FNM/KTK/BAF/FWA/PVM/C10/AGU/BAN/FWC Series Midget Fuse, Polyester, White, 2.909 in H x 2.067 in W x 3.275 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3e52e7c5b398dcbb65321b82aa8f98d93859c9217ab08500bcb9ccf838af2b57.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3e52e7c5b398dcbb65321b82aa8f98d93859c9217ab08500bcb9ccf838af2b57.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Edison_CHCC1DIU_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Edison_CHCC1DIU_Specification_Sheet.pdf
• VIDEO LINK https://www.youtube.com/watch?v=YMvqUyoETXk

• Easy color coding for use yellow for PV, red for IEC and black for UL applications
• Agency ratings up to 1000 VDC for use with PV fuses
• Rated for use with 75 deg C or 90 deg C wire, fine stranded wire, spade terminals and with comb bus bars
• Use any higher temperature rated wire with appropriate derating
• Complete range of UL listed and high SCCR rated 1 and 3-phase finger safe comb bus bars and power feed lugs
• Enhanced safety with IP20 finger safe construction
• Without indication
