Edison T-6

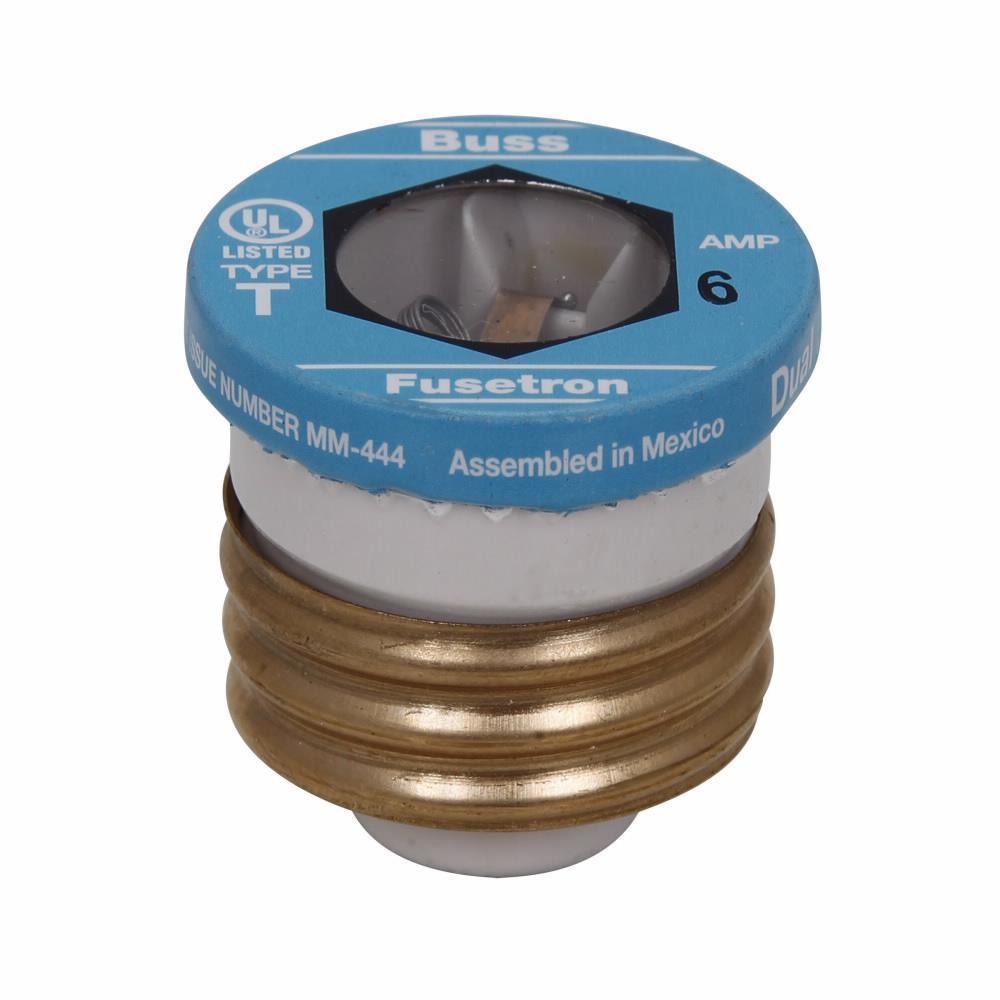

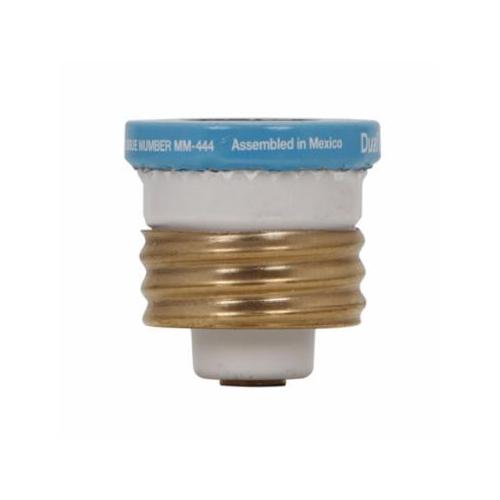

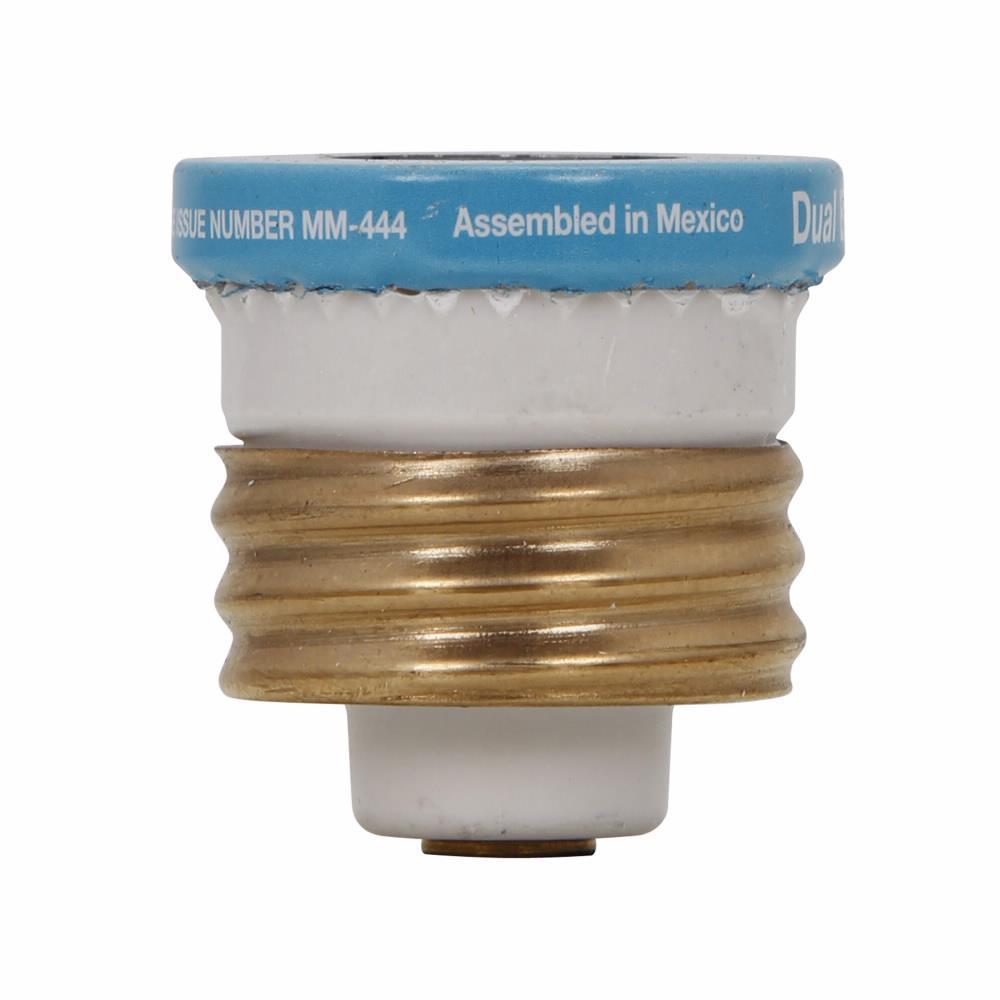

Edison Fusetron™ T-6 Type T Heavy Duty Time Delay Plug Fuse, 6 A, 125 VAC, 10 kA, Round Body

  • MPN: T-6

  • IESPN: 207099

  • UPC: 051712210607

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
Edison T-6

These fuses thread into fuse receptacles. Two types of threaded fuses are available Edison base (brass threads) and rejection base (porcelain threads). The two are not interchangeable. Two categories of plug fuses are available. The medium duty fuses (TL or SL) have a time delay feature for use on motor circuits. The heavy duty fuses (T or S) are industrial strength products featuring the exclusive Cooper Bussmann dual element construction. This spring loaded design provides superior short circuit and overload protection. The T or S fuses have more time delay than the medium duty fuses in order to better protect motors and critical residential circuits. Plug fuses are rated for a maximum of 125 VAC. TL and SL four pack (PK4) versions priced per box. Plug fuses are often used in residential and industrial branch circuit and motor protection. Fuses are used to protect furnace blower motors, pumps, power tools, garage door openers, etc. Motor protection fuses are usually used in conjunction with branch circuit protection. The fuse is often located in a box cover unit. Plug fuses provide a compact and inexpensive method to prevent damage to electrical motors. They help reduce downtime and lower maintenance costs by opening the circuit when a dangerous overload is present. When used for residential branch circuit protection, fuses are typically located in the main fuse panel.

Edison Fusetron™ Plug Fuse, Type T Heavy Duty Time Delay, Series: T Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 6 A, 125 VAC, 10 kA Interrupt, Stud Terminal, Threaded Mount, Round Body, Dual Element, Plastic

Type      Type T Heavy Duty Time Delay
Series      T Series
Indicating/Non-Indicating      Non-Indicating
Rejection/Non-Rejection      Non-Rejection
Amperage Rating      6 A
Voltage Rating      125 VAC
Interrupt Rating      10 kA
Terminal Type      Stud
Mounting Type      Threaded
Body Style      Round
Element      Dual
Material      Plastic
  • pdfCatalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Bussmann_KTS_R_75_Catalog.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Bussmann_T_6_Specification_Sheet.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1537662310045.pdf
  • pdfSpecification Sheet-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Edison_T_1_1_8_Specification_Sheet_1.pdf
  • pdfSpecification Sheet-2 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Edison_T_1_1_8_Specification_Sheet_2.pdf
  • Edison base threads into non-rejection fuse receptacles
  • Heavy duty dual element construction for motor circuits
  • This spring loaded design provides superior short circuit and overload protection
  • Use to protect critical motor circuits or motors that cycle ON/OFF frequently
  • The T fuses have more time delay than the medium duty fuses in order to better protect industrial motors and critical residential circuits
