B-Line 664 RTSC NK

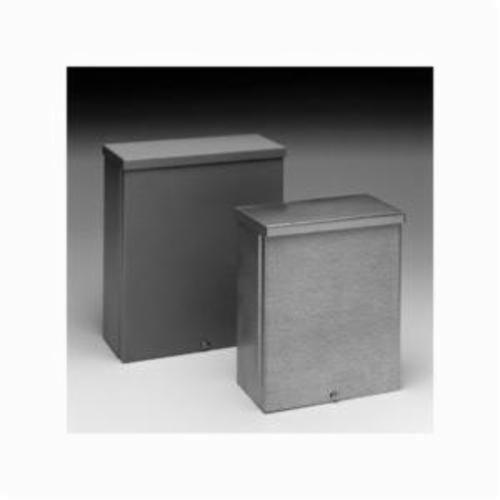

B-Line 664 RTSC NK Junction Boxs, 6 in L x 6 in W x 4 in D, Screw Cover, NEMA 3R, Steel

  • MPN: 664 RTSC NK

  • IESPN: 54360

  • UPC: 782051340518

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
B-Line 664 RTSC NK

B-Line Junction Box, 6 in Length, 6 in Width, 4 in Depth, NEMA 3R, Screw Cover, Wall Mount, Steel, Acrylic Electro Coated, Gray

Length      6 in
Width      6 in
Depth      4 in
NEMA Rating      NEMA 3R
Cover Type      Screw
Mounting Type      Wall
Material      Steel
Finish      Acrylic Electro Coated
Color      Gray
  • pdfSpecification Sheet-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/B_Line_303010_RTSC_NK_Data_Sheet.pdf
  • Enclosure and cover are fabricated from code gauge galvaneal steel for painted or galvanized steel
  • Enclosure body has embossed mounting holes on the back
  • Available with or without knockouts on the bottom end of enclosures less than 30 ines wide
  • Cover is held secure by sliding it under the top end flange and fastening it with plated screws on the bottom end flange,(larger sizes use two studs and wing nuts)
  • 16 gauge steel
  • ANSI 61 gray
  • Without knockout
